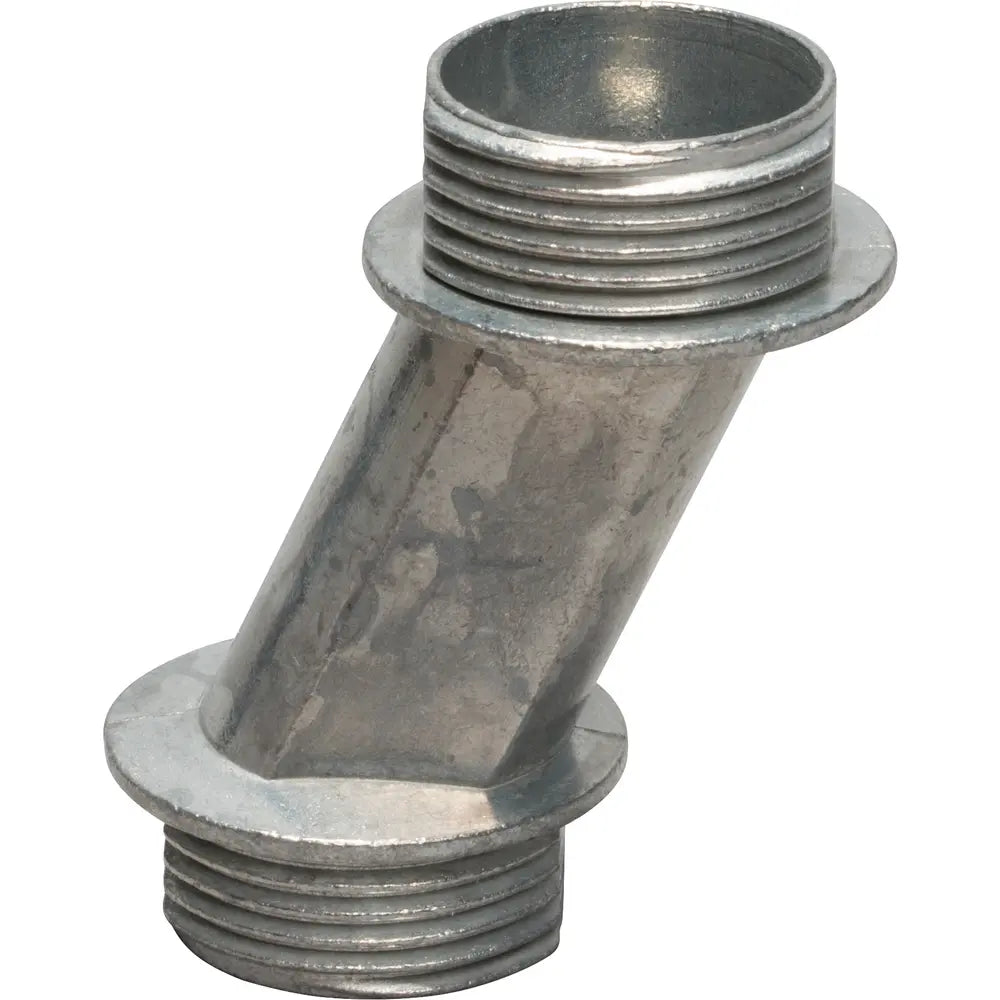

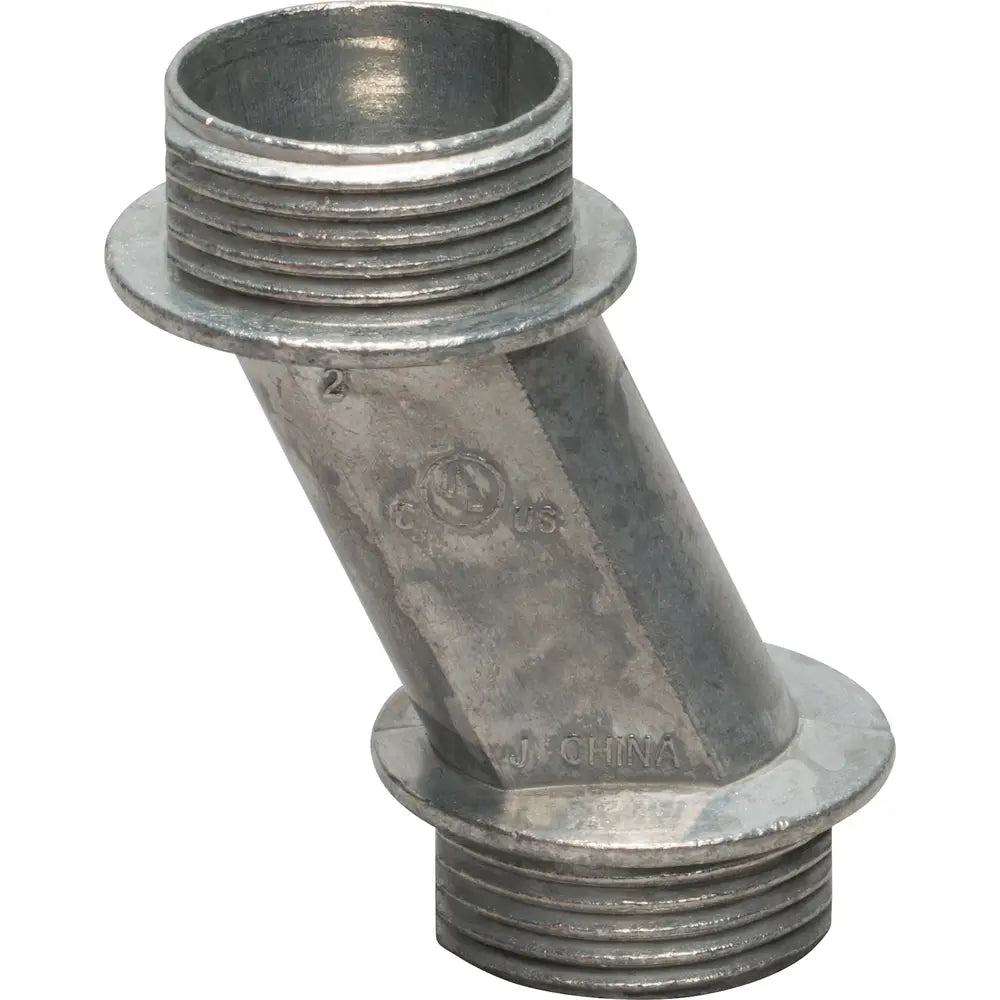

Topaz 114 3/4 inches Rigid Offset Nipple - 1-1/4 inches Size

Product Description

The Topaz 114 rigid offset nipple facilitates directional changes or slight elevation adjustments for EMT conduits entering boxes or enclosures. It offsets the raceway axis by 3/4". Constructed from durable zinc die-cast with an insulated throat for abrasion protection. Available in 1/2” to 3” sizes.

• Enables easier direction change of conduit
• Offsets the axis of the raceways by 3/4"
• Durable zinc die cast construction

Product Highlights

This rigid offset nipple is designed for easier direction or slight elevation change of EMT conduits.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 114
• Country of Origin: US

Technical Specifications

• Type: Rigid Offset Nipples
• Width: 0.75 Inches
• Height: 1.91 Inches
• Length: 2.91 Inches
• Material: Die Cast Zinc
• Mounting: Threaded
• Standard: UL, cULus E148716 and CSA standards
• Connection: Threaded
• Trade Size: 1-1/4 in.
• Application: Rigid offset connector between two enclosures
• Throat: Non-insulated
• Suitable For Use With: Rigid and IMC Conduit
