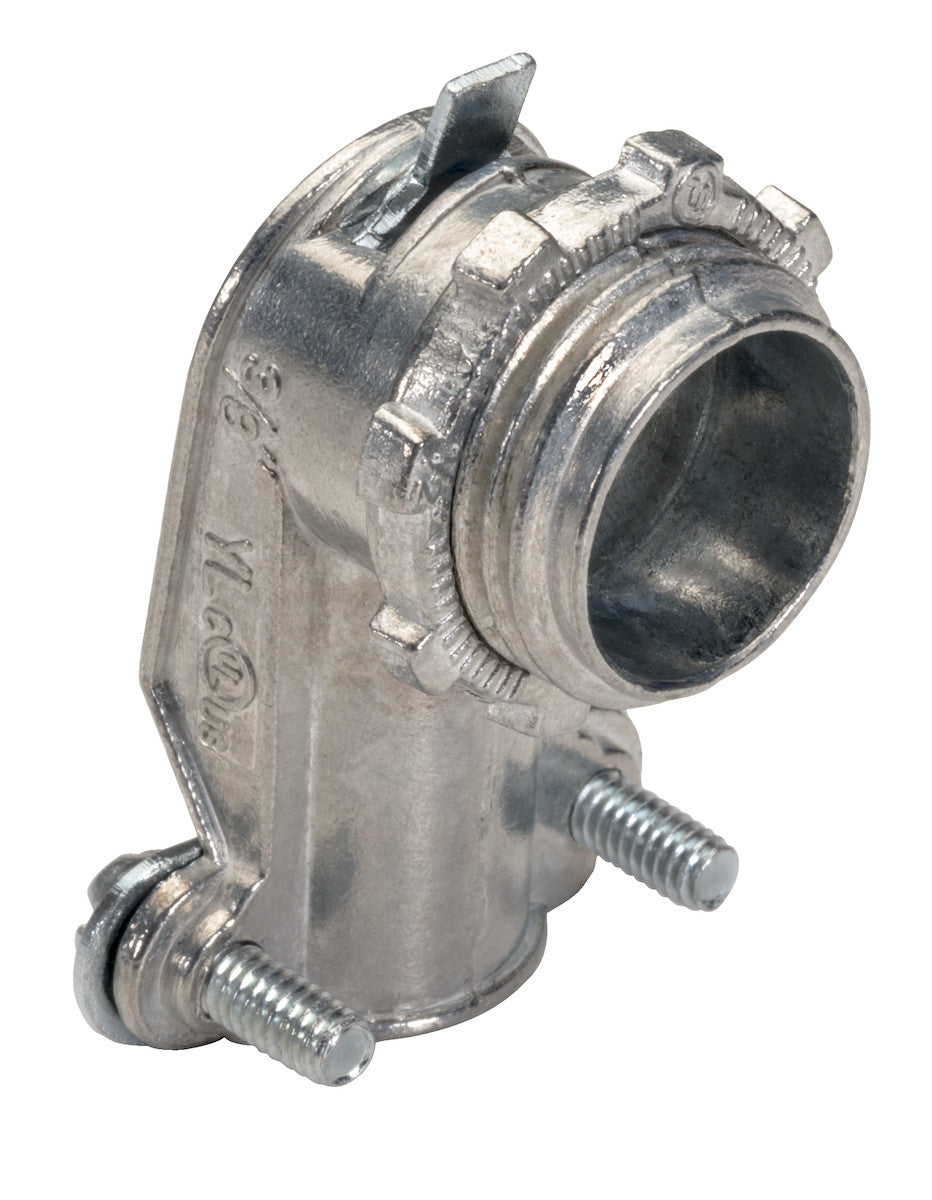

Topaz 107 2-1/2 inches 90D Die-Cast BX-Flex Connector

Product Description

The TOPAZ 107 2-1/2" 90D Die-Cast BX-Flex Connector is recommended for use in dry locations when bonding flexible metal conduit to a box or enclosure. Its durable and corrosion-resistant zinc construction ensures product integrity and longevity. Squeeze type assembly enables easy installation.

• Durable and corrosion-resistant zinc construction ensures product integrity and longevity.
• Recommended for use in dry locations when bonding flexible metal conduit to a box or enclosure.
• Squeeze type assembly enables easy installation.

Product Highlights

The Topaz BX-FLEX connector features a 90-degree angle and is made from die-cast zinc. It is suitable for connecting flexible metallic conduit, AC, and steel MC cable to a steel outlet box or other metal enclosure.

Product Information

Standard Information

• Brand: TOPAZ
• Manufacturer Part Number: 107

Technical Specifications

• Trade Size: 2-1/2 in
• Type: 90 deg
• Application: Use to connect flexible metallic conduit, AC and steel MC cable to a steel outlet box or other metal enclosure, indoor use only
• Standard & Approvals: CSA Certified, UL Listed, UL 514B, UL File No. E170258, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Cable Openings: 2.45 to 2.98 in
• Cable Type: BX-Flex
• Connection Type: Threaded x Squeeze
• Material: Die Cast Zinc
• Product Code: 107
• Manufacturer Part Number: 107
• Product Name: Southwire TOPAZ 2-1/2 Inch Flexible 90-Degree Connector (107)
• Brand: Southwire
• SKU: SOUTHWIRE-107
• UPC Code: #751338104105
