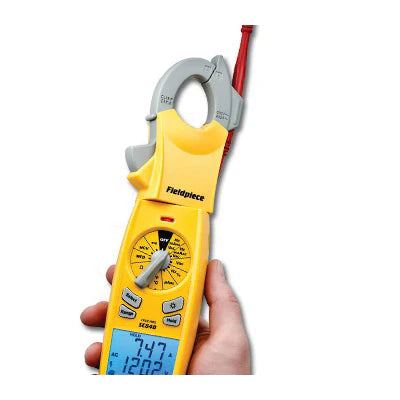

Fieldpiece SC640 Loaded Clamp Meter 400 A 50 MOhm

Product Description

The Fieldpiece Instruments SC640 is a high-performance clamp meter designed for HVACR professionals. This clamp meter is equipped with various features that make it suitable for electrical testing. It measures AC voltage, DC voltage, AC current, resistance, capacitance, and temperature. The SC640 is built for efficiency with functionalities such as True RMS and Inrush current measurements.

• Measures AC/DC voltage, AC current, resistance, capacitance, and temperature
• Features a backlit display for visibility in low light
• Includes lead storage and a magnetic strap for convenience

Product Highlights

The SC640 is a versatile tool for HVACR technicians. It provides accurate and reliable readings in various applications, ensuring that you can troubleshoot electrical systems effectively.

Product Information

Standard Information

• Manufacturer: Fieldpiece Instruments
• Material: ABS

Technical Specifications

• AC Current Range: 400 A
• DC Current Range: 500 Microamp
• AC Voltage Range: 600 Volt
• DC Voltage Range: 600 Volt
• Resistance Range: 50 Mega Ohm
• Capacitance: 5000 Microfarad
• Frequency Range: 10 Hertz to 1 Mega Hertz
• Size: 79.5 mm Width x 50 mm Depth x 287.5 mm Height
• Battery Type: 9 Volt 100 Hour Alkaline
• Display Type: LCD Backlight
• Temperature Rating: -30 to 932 Deg F
