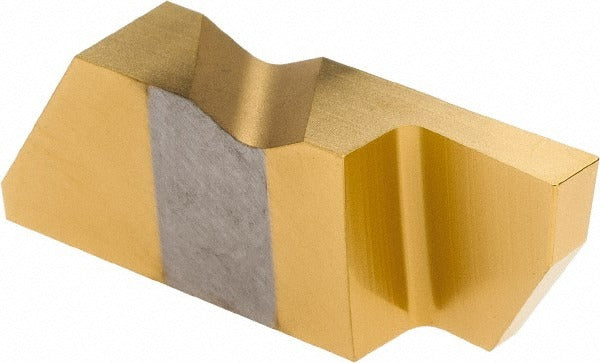

Tool-flo 6334094RN4C Grooving Insert GP50 Solid Carbide

Product Description

The TOOL-FLO 6334094RN4C is a solid carbide grooving insert in the Flo-Lock series, designed for precision grooving and parting operations on CNC lathes and turning centers. This right-hand insert carries a GP50 manufacturer grade with a PVD-applied TiN coating for wear resistance and extended tool life. Key cutting geometry includes a 0.094-inch cutting width, a maximum depth of cut of 0.25 inches, and a cutting height of 0.344 inches. Insert thickness is 0.195 inches. The corner radius ranges from 0.005 to 0.010 inches, providing a controlled edge for finish-quality grooves. Machinists and CNC operators working in job shops or production environments install this insert into compatible Flo-Lock clamp-style toolholders.

This insert is suited for grooving applications on steel workpieces in both production and maintenance machining environments. The Flo-Lock clamping system provides rigid insert retention, which is critical when maintaining groove width tolerances at the 0.094-inch cutting width. The single-end design and ISO code FLGD3094R indicate compatibility with Flo-Lock series toolholders sized for the 3094 insert geometry. Typical applications include external grooving, snap-ring groove cutting, and undercut operations on turned components.

Key Features

• Solid carbide substrate with PVD TiN coating for wear resistance on steel workpieces
• 0.094-inch cutting width for narrow, precise groove profiles
• Maximum depth of cut of 0.25 inches, within a range of 0.200 to 0.300 inches
• Corner radius of 0.005 to 0.010 inches for controlled edge geometry
• Right-hand orientation, single-end, clamp-style insert retention
• Gage diameter of 0.375 inches and insert thickness of 0.195 inches for consistent seating

Compatibility

Designed for use with Flo-Lock series clamp-style toolholders accepting the FLGD3094 insert size. ISO code FLGD3094R and catalog number FLGD-3094R apply. Intended for right-hand cutting configurations on CNC turning equipment.

Installation Notes

Installation is performed by CNC machinists or toolroom technicians. Power down and lock out the machine spindle before changing inserts. Seat the insert fully into the Flo-Lock pocket and secure the clamp to manufacturer specification before operation. Inspect the insert pocket for chips or debris prior to seating to avoid seating errors that affect groove width accuracy.
