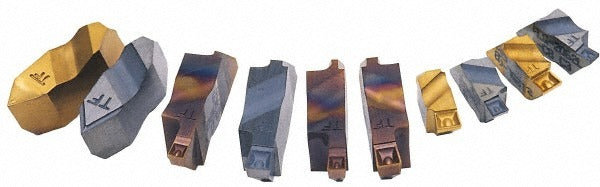

Tool-flo 594062RN4C Grooving Insert GP50 Solid Carbide

Product Description

The TOOL-FLO 594062RN4C is a solid carbide grooving insert designed for precision turning and grooving operations on CNC lathes and turning centers. Part of the Flo-Lock series, it carries a GP50 manufacturer grade with a PVD-applied TiN coating for improved wear resistance and tool life. The insert features a right-hand cut orientation with a 0.1252-inch (3.18 mm) cutting width and a maximum depth of cut of 0.2500 inch (6.35 mm). A full radius profile and positive rake geometry help reduce cutting forces and produce clean groove finishes in steel workpiece materials.

This insert is intended for grooving, parting, and profiling applications in production machining environments. It is suited for use on steel workpieces and is appropriate for shops running high-volume turning operations where insert grade consistency and coating durability are priorities. The Flo-Lock series is designed for use with compatible TOOL-FLO toolholders. Licensed machinists, CNC programmers, and shop technicians are the typical installers and users of this insert.

Key Features

• Solid carbide construction with PVD TiN coating for extended wear resistance
• GP50 grade with C5 and C6 material grade rating, suited for steel cutting applications
• Full radius insert profile with 0.0620-inch corner radius for smooth groove geometry
• Right-hand cut orientation with positive rake angle of 55.00 degrees
• Maximum depth of cut range of 0.2000 to 0.3000 inch (5.00 to 10.00 mm)
• ISO code FLR-4062R with 3/8-inch gage diameter for precise toolholder fitment

Compatibility

Designed for use with TOOL-FLO Flo-Lock series toolholders that accept the FLR-4062R insert style. Compatible with steel workpiece materials as noted in the manufacturer specifications.

Installation Notes

This insert is seated and secured by a licensed machinist or CNC toolroom technician following the toolholder manufacturer torque and clamping guidelines. Power down and lock out the machine spindle before changing inserts. Inspect the toolholder seat for debris or damage before seating the insert to avoid micro-fracture of the carbide. Handle solid carbide inserts carefully to prevent chipping from impact.
