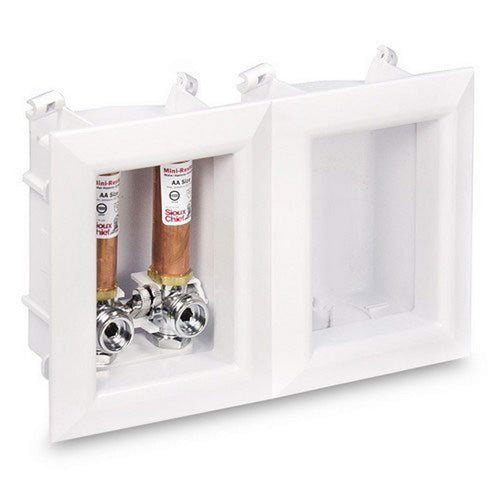

Tomahawk 696-g2313xf Washing Machine Outlet Box with Water Hammer Arrester 1/2 Inch Pex F1807 Inlet X 3/4 Inch Double Hose Bibb Outlet Abs

Product Description

The Tomahawk 696-G2313XF is a washing machine outlet box designed for residential and light commercial plumbing installations. It belongs to the 696 Series OxBox line, built to provide a clean, code-compliant supply and drain solution behind washing machines and laundry equipment. This unit features a 1/2 inch F1807 PEX crimp inlet and a 3/4 inch double hose bibb outlet, making it fully compatible with modern PEX plumbing systems. The box is constructed from durable ABS material and is rated for temperatures up to 250 degrees Fahrenheit and pressures up to 250 psi, giving plumbers confidence in long-term performance. The included water hammer arrester is certified to ASSE 1010 and UPC listed, helping eliminate pipe knocking caused by sudden valve closures from washing machine solenoids. This is a no-lead compliant product, meeting NSF 61 and ASME A112.18.1 requirements. The unit measures 7-1/4 inches in height and 11-1/2 inches in width, fitting standard stud-bay installations. It can be mounted with supply lines entering from the top or bottom and supports both on-stud and between-stud configurations. A metal support bracket installs into the top tracks for between-stud setups, and a metal clip installs on the side slots for on-stud mounting. The drain box includes a 5/8 inch integral testable nipple on the knockout, supporting proper drain connection during rough-in. This product is domestically manufactured and IAPMO certified, meeting the needs of professional plumbers working on new construction and remodel projects. It is commonly specified where washing machine supply and drain outlets require a finished, in-wall solution that complies with plumbing codes.

• 1/2 inch F1807 PEX crimp inlet with 3/4 inch double hose bibb outlet for standard washing machine connections
• Built-in ASSE 1010 certified water hammer arrester eliminates pipe knocking from rapid solenoid valve shutoff
• Supports top or bottom supply entry and on-stud or between-stud installation for flexible rough-in options

Product Highlights

The Tomahawk 696-G2313XF delivers a complete, code-compliant washing machine outlet box solution with integrated water hammer protection, PEX crimp compatibility, and flexible mounting options for professional plumbing installations.

Product Information

Standard Information

• Brand: TOMAHAWK
• Manufacturer Part Number: 696-G2313XF

Technical Specifications

• Series: 696
• Material: ABS
• Inlet Size: 1/2 inch
• Outlet Size: 3/4 inch
• Inlet Connection Type: F1807 PEX Crimp
• Outlet Connection Type: Double Hose Bibb
• Temperature Rating: 250 degrees Fahrenheit
• Pressure Rating: 250 psi
• Dimensions: 7-1/4 inches H x 11-1/2 inches W
• Standards and Approvals: ASSE 1010, ASME A112.18.1, FDA Approved, IAPMO Certified, NSF 61, UPC Listed
• Lead Free: Yes
• Origin: Domestic
