Tomahawk 521-723 Chase Bracket With Band - 1/4 in Hole - 275 lb Steel

Product Description

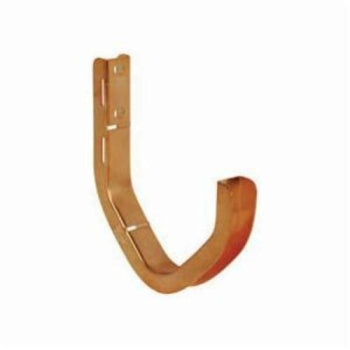

The Tomahawk 521-723 is a chase bracket manufactured by Sioux Chief. This product is designed for use in supporting water headers ranging from one-half to three inches in CTS in commercial applications. It is especially effective in prefabricated installations. The bracket can be easily fastened to vent or stack pipes using a provided stainless steel band. While not required, an additional band can help secure the bracket to a horizontal pipe header during transport to a job site. Users can also attach the bracket to any flat surface with appropriate hardware, utilizing the two mounting holes provided.

• Supports water headers from 1/2 to 3 inches in CTS
• Constructed from steel with a copper-plated finish
• Load capacity of 275 pounds

Product Highlights

This bracket is durable and ideal for various plumbing and piping applications.

Product Information

Standard Information

• Brand: Tomahawk
• Manufacturer: Sioux Chief

Technical Specifications

• MPN: 521-723
• Material: Steel
• Finish: Copper Plated
• Load Capacity: 275 lb
• Thickness: 0.059 in
• Hole Size: 1/4 in
• Dimensions: 4.5 in W x 0.718 in D
• Series: 521
