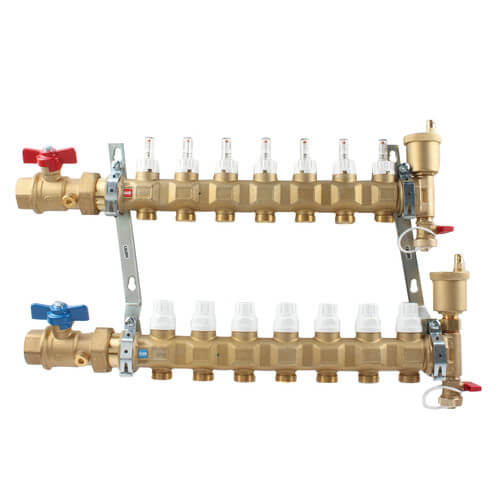

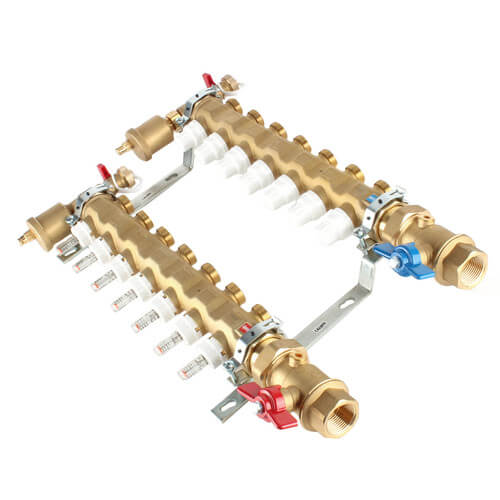

Caleffi 6686I5S1A TwistFlow 9 Loop Radiant Manifold Assembly 1 Inch

Product Description

Introducing the Caleffi 6686I5S1A, a state-of-the-art TwistFlow 9 Loop Radiant Manifold Assembly designed to deliver exceptional functionality and efficiency in floor heating systems. Engineered for optimal thermal performance, this assembly ensures precise flow distribution, enhancing the control of heat emission effectively.

• Equipped with 9 outlet connections accommodating 1-inch inlets with ease.
• Integrated sight flow gauge and balancing valve, enabling easy monitoring and adjustment.
• Robust construction with a maximum operating pressure of 150psi and peak temperature tolerance of 200 degrees Fahrenheit.

Product Highlights

This Manifold Assembly supports various PEX Loop Fitting Assemblies, connecting without the need for specialized tools, making it a versatile choice for diverse plumbing configurations.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 6686I5S1A
• Category: HVAC

Technical Specifications

• Maximum Working Pressure: 150 psi
• Maximum Temperature: 180 degrees Fahrenheit
• Peak Temperature: 200 degrees Fahrenheit
• Outlet Center Distance: 2 inches
• Loop Cv: 1.23
