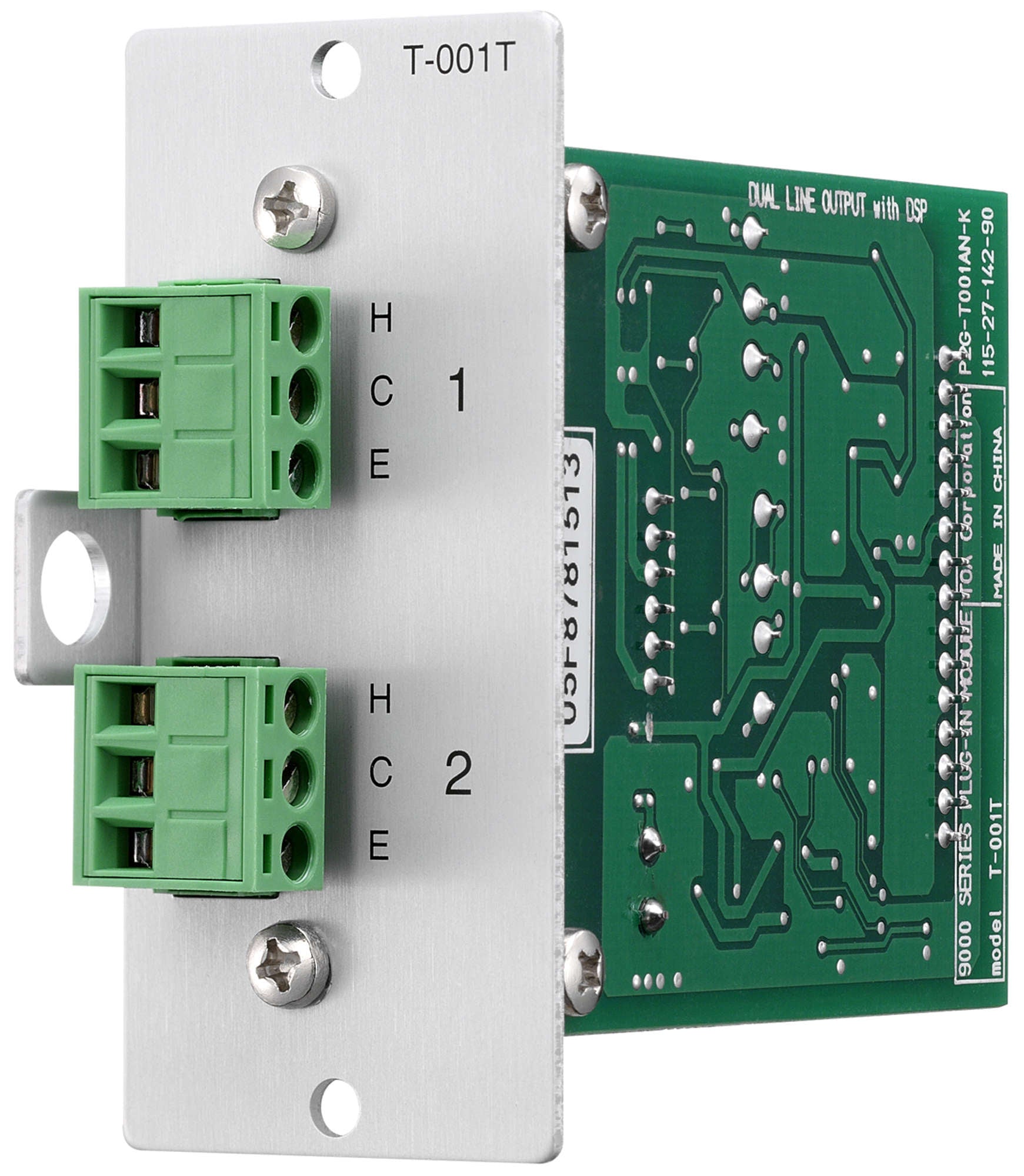

Toa T-001T Dual Line Output Expansion Module with DSP

Product Description

The TOA T-001T is a plug-in module designed for use with the 9000 Series mixer/amplifiers and can provide two independent balanced outputs. It can drive a load of 600 Ohm up to +16 dB and process effects for TONE/EQ/COMPRESSOR independently for each of the two outputs.

• 2 balanced line outputs
• Digital signal processing: 10-band parametric EQ, Bass/Treble, Loudness, High and Low Pass Filters, Compressor, TOA speaker EQ presets
• Removable terminal block

Product Highlights

The T-001T dual line output module is designed for use with 9000 series amplifiers and provides digital signal processing.

Product Information

Standard Information

• Brand: TOA
• Manufacturer Part Number: T-001T

Technical Specifications

• Power Supply: +24 V DC, -24 V DC, +6 V DC
• Current Consumption: 35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC)
• Output: 2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced, removable terminal block (3 pins)
• D/A Converter: 24 bit DAC
• Sampling Frequency: 48 kHz
• Frequency Response: 20 Hz - 20 kHz, +1, -3 dB
• Total Harmonic Distortion: 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load)
• Signal to Noise Ratio: Over 73 dB (at 20 Hz - 20 kHz BPF)
• Residual Noise: Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB)
• Crosstalk: Over 87 dB (at 20 kHz)
• Tone Control: Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)
• Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
• Speaker Equalizer: 10 (setup software has 30 TOA speaker presets)
• High-Pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
• Low-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
• Compressor: Depth: 1 - 5
• Delay: 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
• Operating Temperature: -10 °C to +40 °C
• Finish: Panel: Aluminum, hair-line
