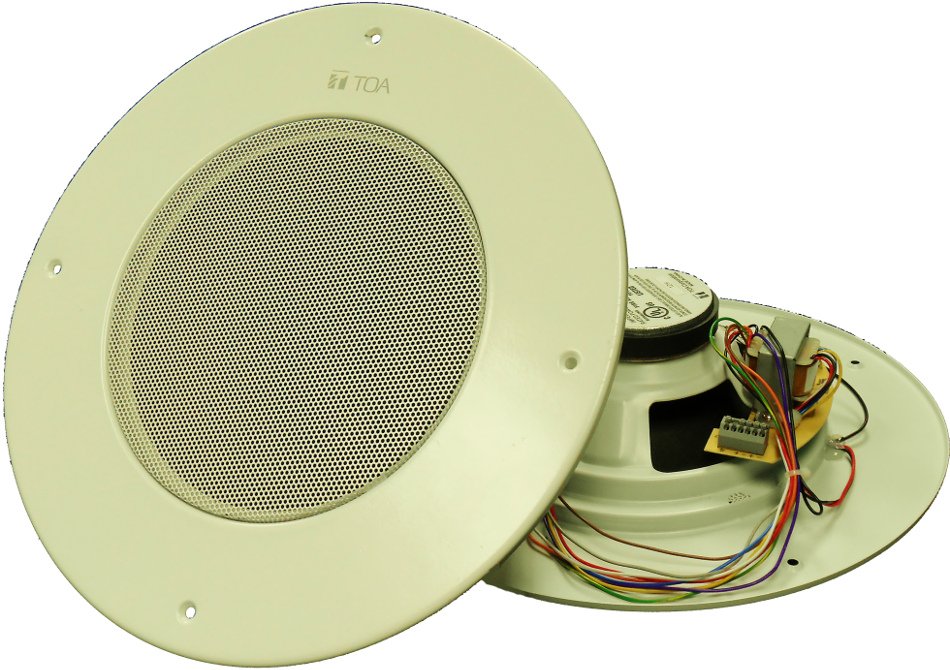

Toa PC-580RU AM 8 inches Ceiling Speaker 5W

Product Description

The TOA PC-580RU AM is an 8" ceiling speaker with a 25V / 70V transformer designed for high-performance, low-cost paging and notification applications. Ideal for retrofitting speakers in large facilities, it eliminates the need for adapting existing ceiling cutouts. The PC-580RU meets UL requirements for emergency signaling and notification applications.

• 8" in-ceiling speaker for high-quality paging applications
• Low-cost design makes it ideal for projects requiring large quantities
• 25 & 70V transformer taps up to 5W

Product Highlights

The PC-580RU AM is an 8" ceiling speaker with a 25V / 70V transformer that is UL1480 UUMW & UL2043 plenum rated. Certified to work with emergency announcement systems.

Product Information

Standard Information

• Brand: TOA
• Manufacturer Part Number: PC-580RU AM

Technical Specifications

• Rated Input (speaker): 10W
• Rated Input (transformer, 70.7V line and 25V line): 5W
• Rated Impedance (70.7V Line): 20kΩ (0.25W), 10kΩ (0.5W), 5kΩ (1W), 2.5kΩ (2W), 1kΩ (5W)
• Rated Impedance (25V Line): 2.5kΩ (0.25W), 1.25kΩ (0.5W), 625Ω (1W), 312.5Ω (2W), 125Ω (5W)
• Sensitivity: 97dB
• Speaker Component: 8" (200mm) Dual cone type
• Magnet Size: Dia. 80mm (3.15") x dia. 32mm (1.26") x 12mm (0.47")
• Magnet Weight: 10oz (272g)
• Flux Density: 11,900 gauss
• Baffle Finish: Steel plate, white
• Grille Finish: Surface-treated steel plate net, white
