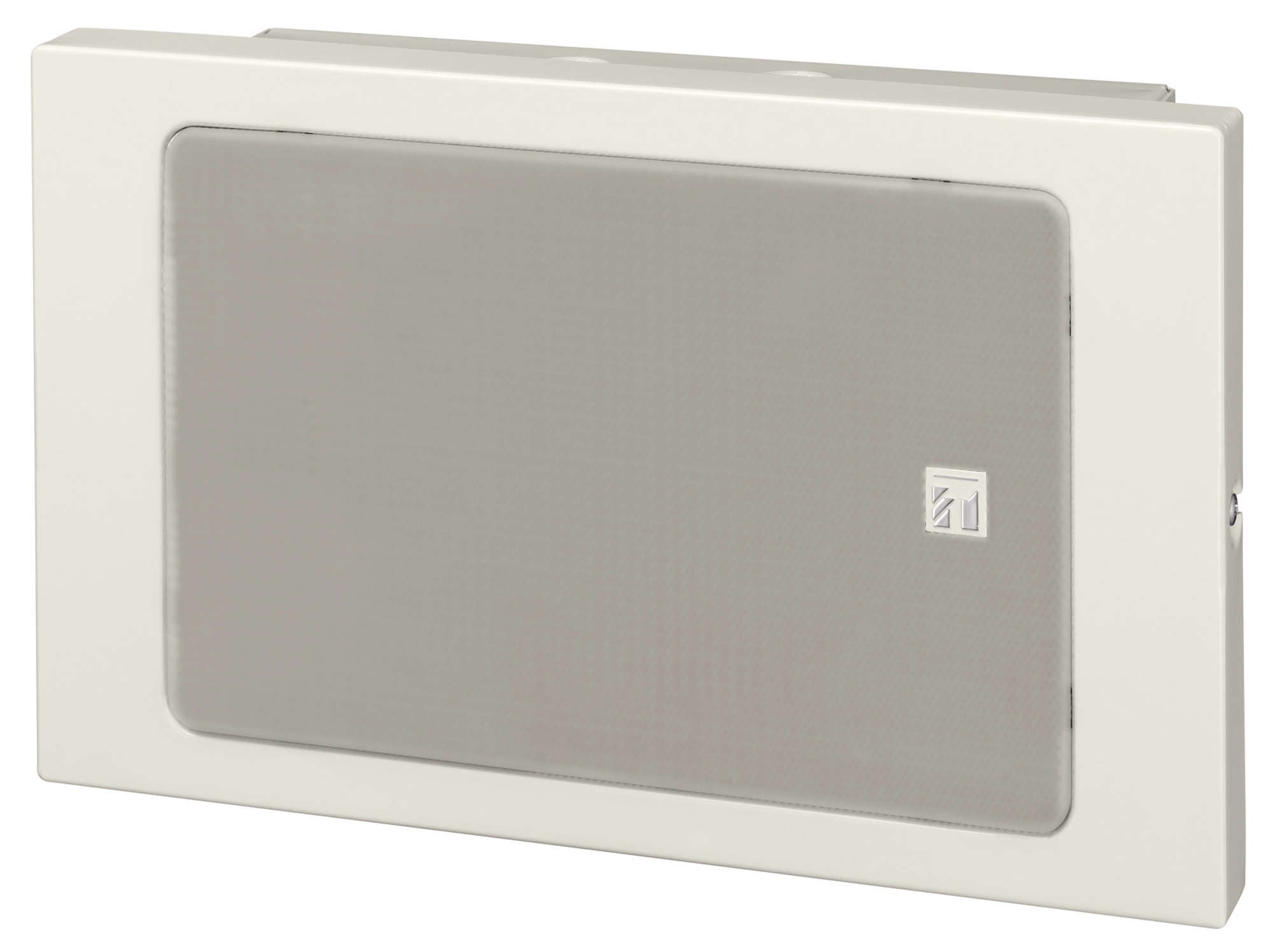

Toa BS-680U Wall Mount Box Speaker 6 inches for Emergency Broadcasting Applications

Product Description

The TOA BS-680U is a 6" wall mount box speaker designed for emergency broadcasting applications. Constructed with a metal cabinet, it can be surface- or flush-mounted to the wall. It features a built-in 16 cm double cone speaker unit that delivers high-quality sound. The input impedance can be easily changed by changing the tap position of the transformer.

• Innovative design based on the Golden Ratio (1:1.618)
• Certified to function as a Fire Alarm Signaling Speaker
• UL 1480 UUMW and ULC-S541 listed

Product Highlights

This speaker is ideal for use in voice alarm systems and is certified to UL 1480 UUMW and ULC-S541 standards for indoor use.

Product Information

Standard Information

• Brand: TOA
• Manufacturer Part Number: BS-680U
• Country of Origin: Japan

Technical Specifications

• Color: White
• Depth: 3.54"
• Width: 12.2"
• Height: 3.43"
• Features: Certified to function as a Fire Alarm Signaling Speaker,Flush- / Surface-mounting,Horizontal / vertical installation,Innovative design based on the Golden Ratio (1:1.618),Quick and easy installation,Strong all-metal body,UL 1480 UUMW and ULC-S541 listed
• Brand Name: TOA
• Form Factor: Wall Mount
• Manufacturer: TOA Corporation
• Product Name: Wall Mount Box Speaker (UL1480UUMW Rated)
• Product Type: Speaker
• Product Model: BS-680U
• Product Series: BS
• Sensitivity (dB): 94
• Speaker Installation: Indoor
• Manufacturer Part Number: BS-680U
• Maximum Frequency Response (Hz): 20000
• Minimum Frequency Response (Hz): 150
• Rated Input: 6 W
• Rated Impedance: 70 V line: 830 Ω (6 W), 1.67 kΩ (3 W), 5 kΩ (1 W) 25 V line: 105 Ω (6 W), 210 Ω (3 W), 650 Ω (1 W)
• Frequency Response: 150 Hz - 20 kHz (peak -20 dB)
• Speaker Component: 16 cm (6") double cone-type
• Cable Requirements: Solid copper wire: Ø0.8 - Ø2.0 mm (AWG 20 - 12) Stranded copper wire: 0.5 - 2.0 mm² (AWG 20 - 14)
• Connection: Push-in connector (bridging terminal)
• Compliance/Certifications: UL 1480 UUMW, ULC-S541
• Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
• Finish: Baffle, Cabinet: Steel plate, white (RAL 9010 equivalent), powder coating Grille: Surface-treated steel plate mesh, white (RAL 9010 equivalent), paint
• Included Accessories: Rubber grommet x 2, Speaker mounting screw (4 x 16) x 4, Sponge tape x 1 sheet (2 pieces)
• Brand: toa
• Model: BS-680U
• MPN: BS-680U
• Sensitivity: 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
• Country of Origin: Japan
