Tmg 96f10827tmg 2 Inch 316 Ss Full Port Ball Valve Fnpt

Product Description

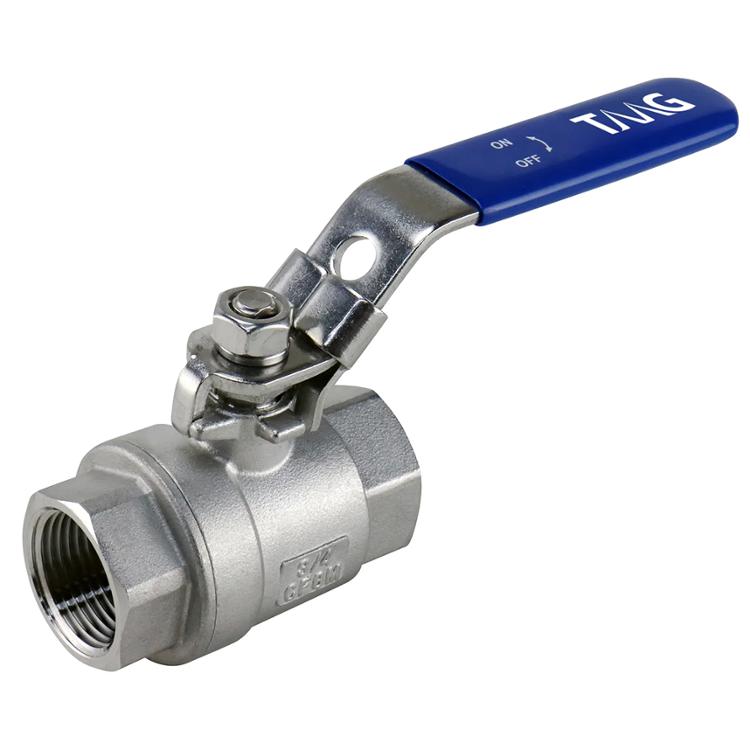

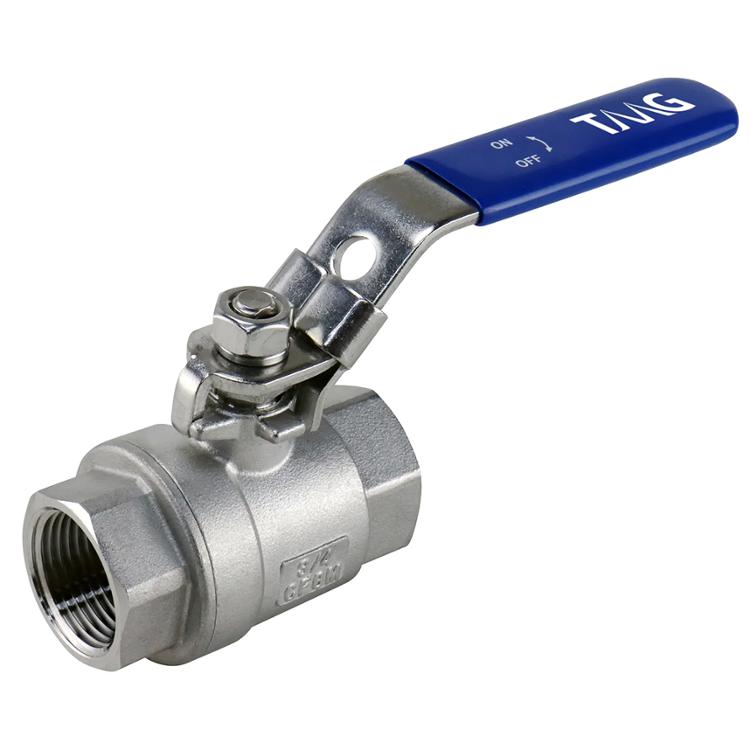

The TMG 96f10827tmg is a full-port ball valve constructed entirely of 316 stainless steel, designed for reliable shutoff service in demanding fluid handling applications. The valve features female NPT connections on both ends and ships with a locking lever handle that prevents accidental actuation. All internal and external components — ball, stem, body, and handle — are stainless steel, giving the assembly consistent corrosion resistance across the full valve. Reinforced Teflon seats support smooth quarter-turn operation, and an adjustable stem packing gland allows field maintenance without valve removal. Each unit is 100% tested during production.

The 96f10827tmg is well suited for plumbing, HVAC hydronic systems, industrial piping, and fluid distribution lines where corrosion resistance is a priority. The 316 stainless steel body is specifically appropriate for saltwater environments, marine installations, and coastal areas where chloride-induced corrosion is a concern. Licensed plumbers and pipefitters are the primary installers for this valve in commercial and industrial settings, though the FNPT connections make it accessible for qualified residential work as well.

Key Features

• Full-port design minimizes pressure drop across the valve
• 316 stainless steel body, ball, stem, and handle for uniform corrosion resistance
• Locking lever handle prevents unauthorized or accidental operation
• Reinforced Teflon seats for smooth, low-torque quarter-turn shutoff
• Blowout-proof stem design for safe operation under pressure
• Adjustable stem packing allows field service without removal
• 100% production-tested before shipment

Compatibility

Designed as a standard 2-inch full-port ball valve with female NPT inlet and outlet connections, suitable for use in piping systems requiring a 316 stainless steel shutoff valve.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Isolate and depressurize the system and drain the line before removing any existing valve or installing this one. Apply thread sealant or PTFE tape appropriate for the service fluid to all male NPT connections before threading the valve in place. Do not use the lever handle as leverage during installation, as over-torquing the body connections can damage the seat seals.

Technical Specifications

• Size: 2 inches
• Body Material: 316 Stainless Steel
• Ball, Stem, and Handle Material: Stainless Steel
• Seat Material: Reinforced Teflon (PTFE)
• Port Type: Full Port
• Connection Type: Female NPT x Female NPT
• Handle Type: Locking Lever
• Stem Design: Blowout-Proof

Standard Information

• Brand: TMG
• Manufacturer Part Number: 96f10827tmg
