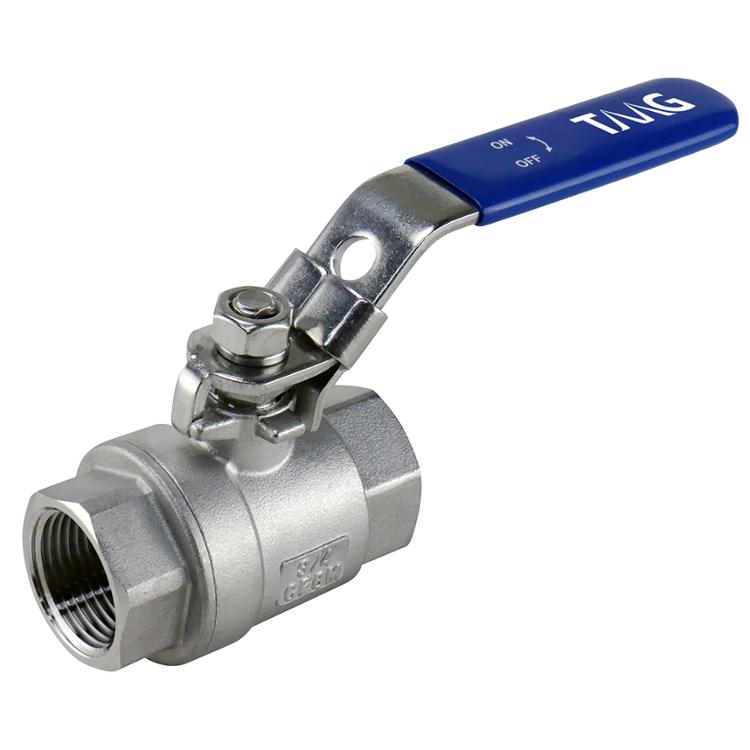

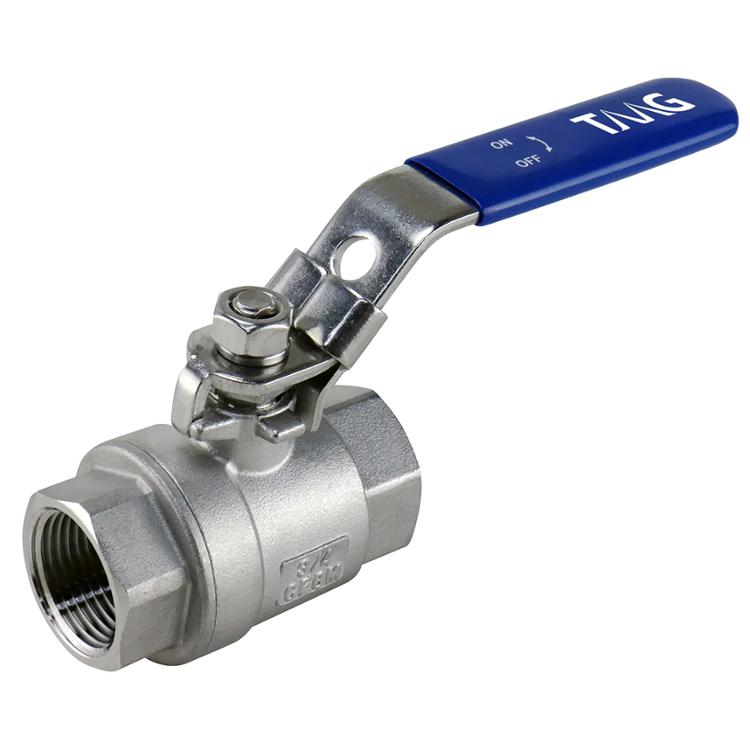

Tmg 96f10627tmg 1-1/4 in 316 Ss Full-port Ball Valve Locking

Product Description

The TMG 96f10627tmg is a full-port ball valve built for demanding fluid control applications where corrosion resistance is critical. The body, ball, stem, and handle are all constructed from 316 stainless steel, making it well-suited for saltwater, marine, and coastal service environments. With a 1-1/4 inch female NPT connection on both ends, this valve threads directly into standard pipe systems. The locking lever handle prevents accidental or unauthorized operation, and a blowout-proof stem design adds a layer of safety during pressure events. Reinforced PTFE seats and adjustable stem packing contribute to long-term sealing performance.

This valve is used in residential and commercial plumbing, marine systems, coastal HVAC water lines, irrigation headers, and industrial process piping where 316 stainless steel is specified for corrosion resistance. The full-port design maintains maximum flow through the valve with minimal pressure drop, making it appropriate for applications where flow efficiency matters. Licensed plumbers and pipefitters are the typical installers, though marine and HVAC technicians also work with this valve in their respective system types.

Key Features

• 316 stainless steel body, ball, stem, and handle for superior corrosion resistance
• Full-port design minimizes pressure drop and maintains line flow rate
• Locking lever handle prevents accidental or unauthorized valve actuation
• Blowout-proof stem design for added safety under line pressure
• Reinforced PTFE seats and adjustable stem packing for reliable sealing
• 100% production-tested before shipment

Compatibility

Designed as a direct-fit replacement or new-installation ball valve for 1-1/4 inch female NPT pipe systems requiring 316 stainless steel construction, including saltwater, marine, and coastal fluid control applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off the fluid supply and depressurize the line completely before removing any existing valve or fitting. Apply thread sealant or PTFE tape to male pipe threads before making up the connection, and tighten to the fitting manufacturer specification using appropriate pipe wrenches. Do not use the valve handle as leverage during installation.

Technical Specifications

• Body Material: 316 Stainless Steel
• Ball and Stem Material: 316 Stainless Steel
• Handle Material: 316 Stainless Steel
• Seat Material: Reinforced PTFE (Teflon)
• Port Type: Full Port
• Connection Type: Female NPT x Female NPT
• Pipe Size: 1-1/4 inches
• Stem Design: Blowout-Proof with Adjustable Packing
• Handle Type: Locking Lever

Standard Information

• Brand: TMG
• Manufacturer Part Number: 96f10627tmg
