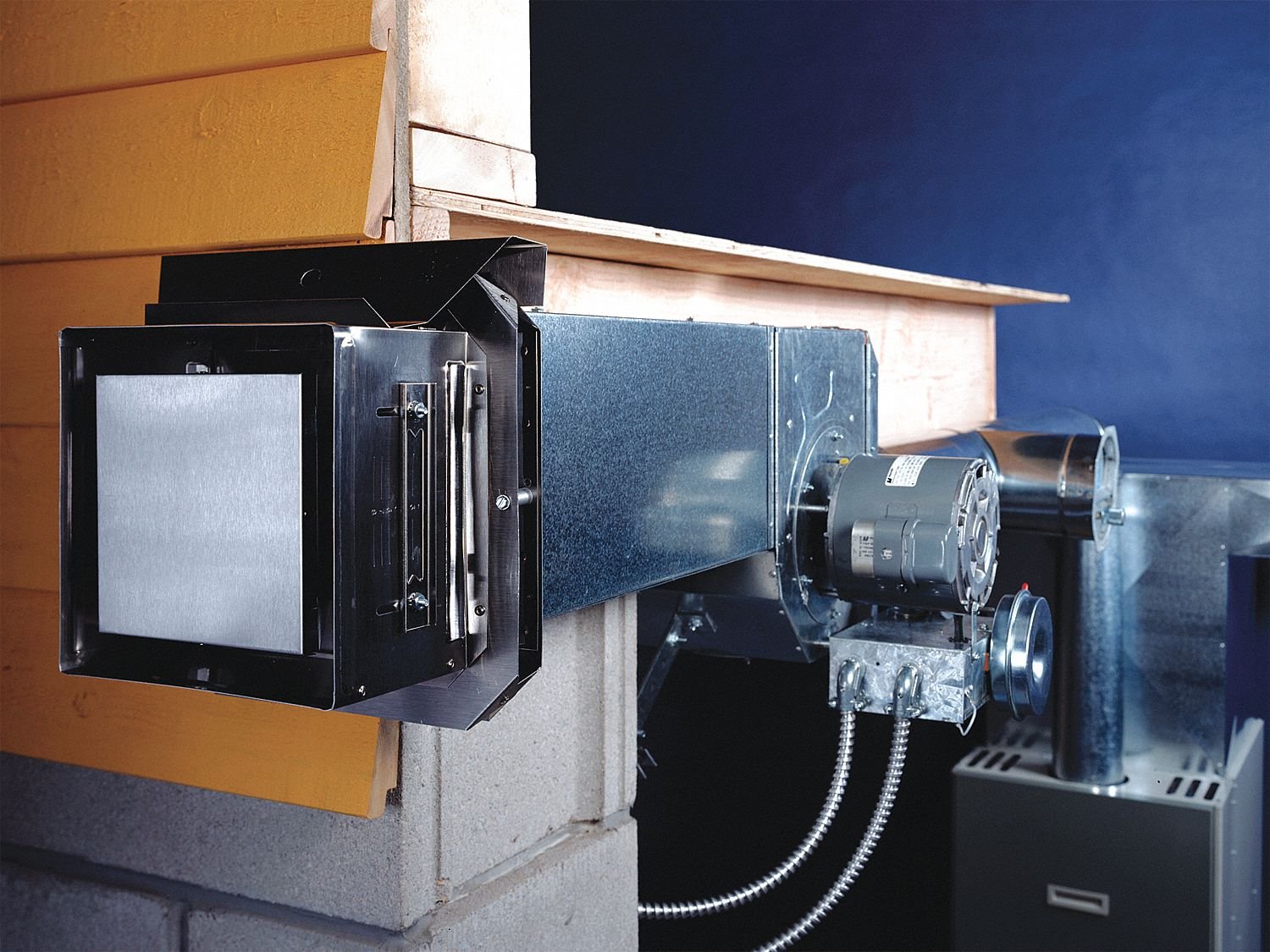

Tjernlund SS1 Oil Side Wall Vent System

Product Description

Tjernlund SS1 Oil Side Wall Vent System is designed for oil-fired heating equipment. It utilizes a patented design to efficiently vent flue gases, ensuring safety and performance. The system can vent non-condensing oil-fired boilers, water heaters, and furnaces through the side wall, eliminating the need for a traditional roof chimney.

• Compatible with oil-fired heating appliances.
• Constructed for use in zero clearance to combustible materials.
• Features factory wired safety controls for easy installation.

Product Highlights

The SS1 features stainless steel construction and a patented flue gas jetting design that directs gases away from the building’s exterior. It has interlock controls and adjustable timing for enhanced safety and ease of use.

Product Information

Standard Information

• Brand: Tjernlund
• MPN: SS1

Technical Specifications

• Dimensions: 26.7 x 24.5 x 17.7 inches
• Weight: 17 pounds
• Gas Appliance BTU Input: 160,000 BTU/h
• Oil Appliance BTU Input: 220,000 BTU/h
• Voltage: 120V AC
• Diameter: 6 inches (inlet and outlet)
