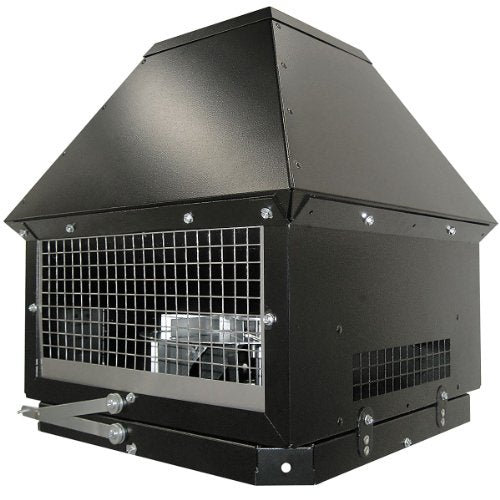

Tjernlund RT750 Rooftop Inducer 120v 18 inches Fan Prover Switch

Product Description

The Tjernlund RT750 Rooftop Draft Inducer is designed for vertical venting of gas, oil, solid fuel, and general ventilation applications. It operates under negative pressure to maintain safety and efficiency.

• Backwards inclined impeller repels soot and lint
• Clamshell design for easy installation and service
• Patented motor cooling system extends motor life

Product Highlights

Exterior mount ETL listed rooftop inducer suitable for various fuel types, including gas, oil, and solid fuel. Manual speed control adjustment, with optional controls, ensures optimal performance. Features a hinged housing for quick access to the impeller and chimney interior. Made in the U.S.A.

Product Information

Standard Information

• Brand: Tjernlund
• MPN: RT750
• Category: Rooftop Inducers

Technical Specifications

• HP: 1/12 hp
• RPM: 1550
• Amps: 1.2A
• Voltage: 120v
• Depth: 16 inches
• Width: 16 inches
• Height: 18 inches
• Weight: 53.32
• Inlet Diameter: 8 inches
• Outlet Diameter: 8 inches
• Maximum Vent Pipe Diameter: 10 inches
• Minimum Vent Pipe Diameter: 8 inches
• Wheel Material: Stainless Steel
• Housing Material: Coated Galvanized Steel
• Standards: cETL Listed, CAN/CSA B255M81, UL378, UL705
• Maximum Heater BTU Input for Gas Appliance: 1,200,000 BtuH
• Maximum Heater BTU Input for Oil Appliance: 1,500,000 BtuH
