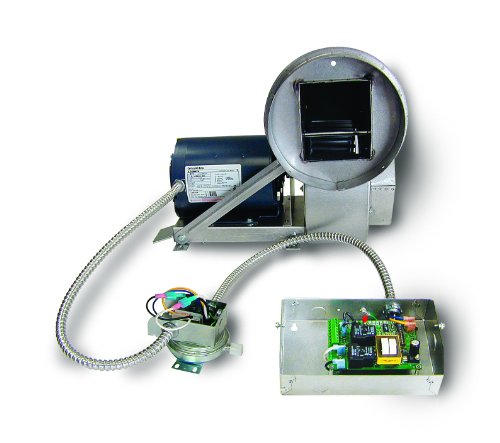

Tjernlund HS5 Induced Draft Blower 115V 18 Inches for Commercial Gas Applications

Product Description

The Tjernlund HS5 Induced Draft Blower is designed for sidewall venting of commercial natural gas or LP fired equipment, including boilers, water heaters, and unit heaters. The unit features the UC1 Universal Control and a diaphragm Fan Proving Switch, ensuring safe operation by shutting down the heating equipment in case of a venting malfunction. The UC1 control allows adjustable pre and post-purge settings and includes LED status/diagnostic indicators. The blower interlocks with any 24-120 VAC burner control circuit and offers a dry contact actuation option.

• Sidewall vent systems save both time and money
• Ensures proper exhaust with proven safety interlocks
• Includes UC1 Interlock Control and PS1505 Fan Prover Switch

Product Highlights

The HS5 blower significantly reduces vent pipe diameter, saving on materials and labor. The built-in adjustable damper allows for maximum combustion efficiency. Suitable for electric to gas/oil conversions, renovations, and new constructions.

Product Information

Standard Information

• Brand: Tjernlund
• MPN: HS5
• UPC: 080956217066

Technical Specifications

• Voltage: 115V AC
• Amps: 12.6 A
• Application: Boilers, Unit Heaters, Water Heaters
• Power Consumption: 1,500 W
• Maximum Heat Input: 1,825,000 BtuH
• Height: 18 inches
• Width: 16 1/4 inches
• Depth: 16 1/4 inches
• Material: Aluminized Steel Fan
• Vent Pipe Diameter: 10 to 14 inches
• CFM @ 0.000-In. SP: 1500
• CFM @ 0.500-In. SP: 1250
• CFM @ 1.000-In. SP: 1125
