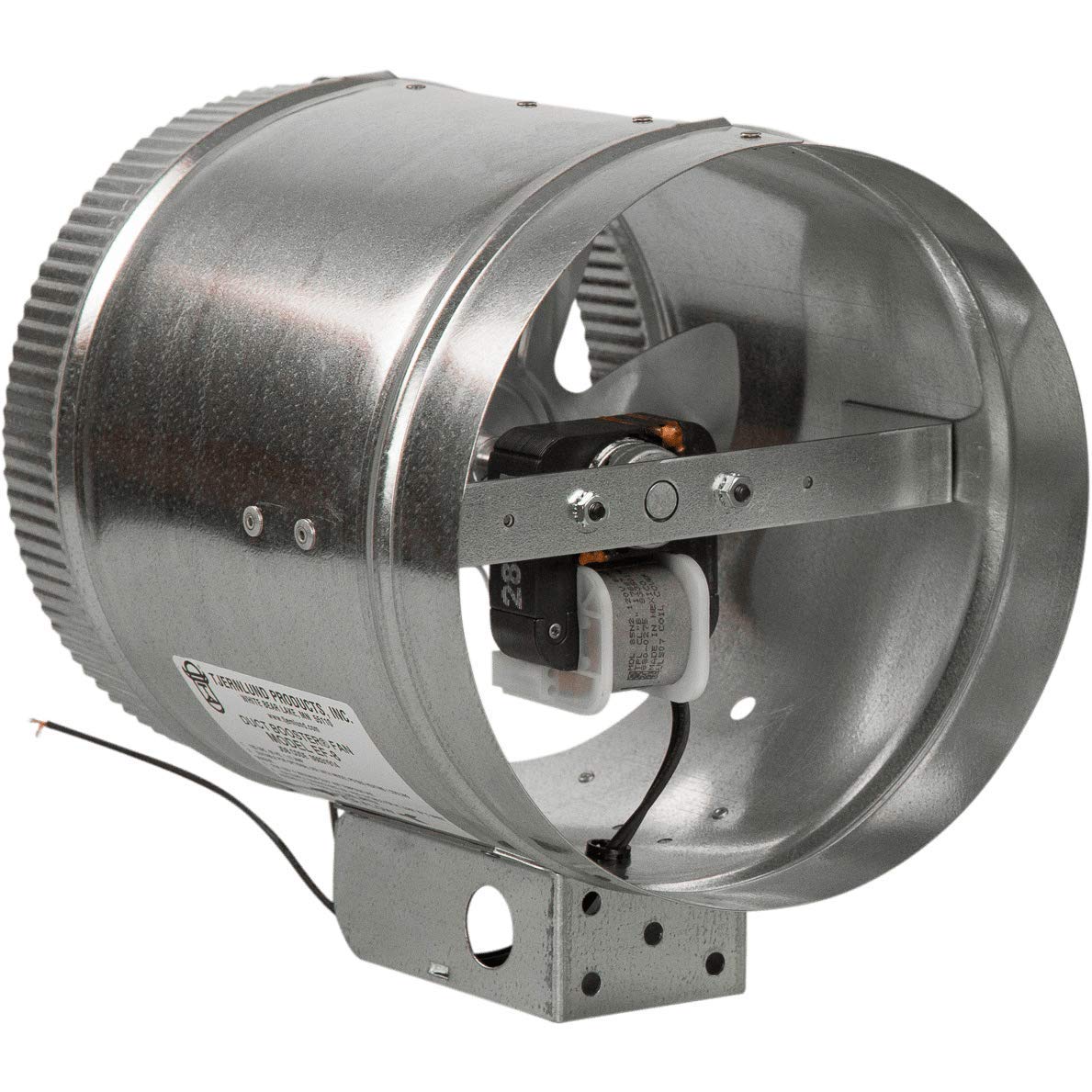

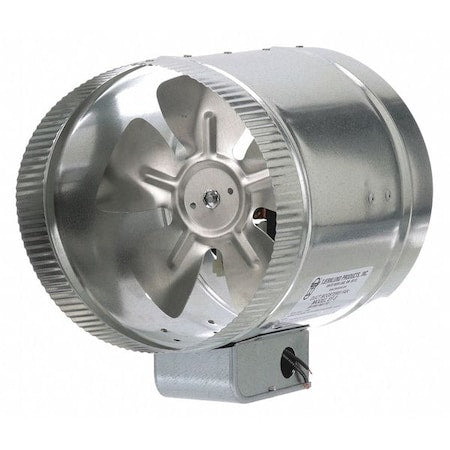

Tjernlund EF-8 Axial Duct Booster Galvanized Steel 8 Inch

Product Description

The Tjernlund EF-8 Axial Duct Booster is designed to improve air circulation in HVAC systems. With a housing made from galvanized steel, this booster fits ducts with a diameter of 8 inches and operates at 120 volts.

• Made by Tjernlund
• Galvanized steel housing
• Operates at 120 volts

Product Highlights

This axial duct booster fan is suitable for use in HVAC systems to enhance airflow. It features a galvanized steel housing and fits ducts with a diameter of 8 inches.

Product Information

Standard Information

• Brand: Tjernlund
• Model: EF-8
• Country of Origin: United States

Technical Specifications

• Voltage: 120V
• Phase: 1
• Current: 1.1 A
• Power Consumption: 56 W
• Diameter: 8 inches
• Length: 9 inches
• Airflow: 325 CFM at 0.000-In. SP
• Motor Speed: 3000 RPM
• Inlet/Outlet Diameter: 8 inches
• Maximum Inlet Temperature: 150 degrees F
• Mounting Orientation: Horizontal or Vertical
• Housing Material: Galvanized Steel
