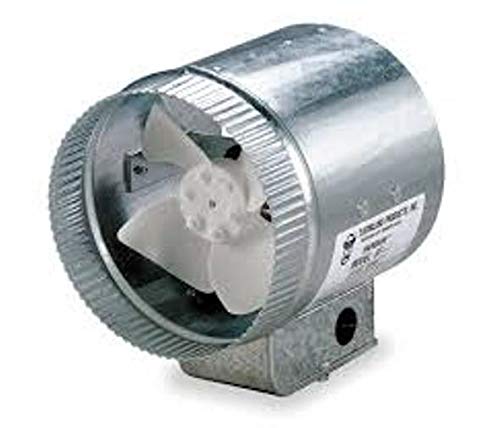

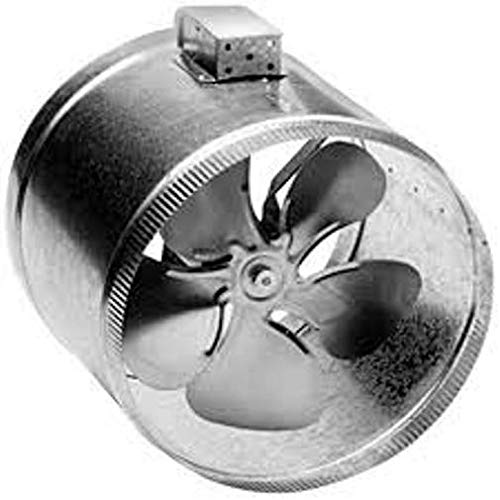

Tjernlund EF-6 Duct Booster Fan 6 Inches

Product Description

The Tjernlund EF-6 Duct Booster Fan improves air circulation in residential and commercial spaces. It fits 6-inch ducts and helps move air to hard-to-reach areas, maintaining an even temperature throughout your space.

• Galvanized steel housing for durability
• Compatible with metal or flex ducting
• Handles temperatures up to 150 degrees Fahrenheit

Product Highlights

This booster fan is ideal for enhancing ventilation. It provides 180 CFM airflow at 0 static pressure and operates at 2250 RPM. It offers reliable performance in various applications.

Product Information

Standard Information

• Manufacturer: Tjernlund
• Brand: Tjernlund
• Model: EF-6
• UPC: 080956426000
• Type: Duct Booster Fan
• Size: 6 inches

Technical Specifications

• CFM @ 0.000 in SP: 180
• Motor RPM: 3000
• Voltage: 120V AC
• Phase: 1
• Max. Amps: 0.4 A
• Max. Wattage: 30
• Motor Speed: 3,000 RPM
• Material: Galvanized Steel
• Max. Inlet Temp: 150 Degrees F
• Overall Diameter: 6 inches
• Overall Height: 6 1/2 inches
• Overall Width: 6 inches
• Mounting Position: Horizontal or Vertical
• Speed Control Included: No
• Inlet and Outlet Diameter: 6 inches
