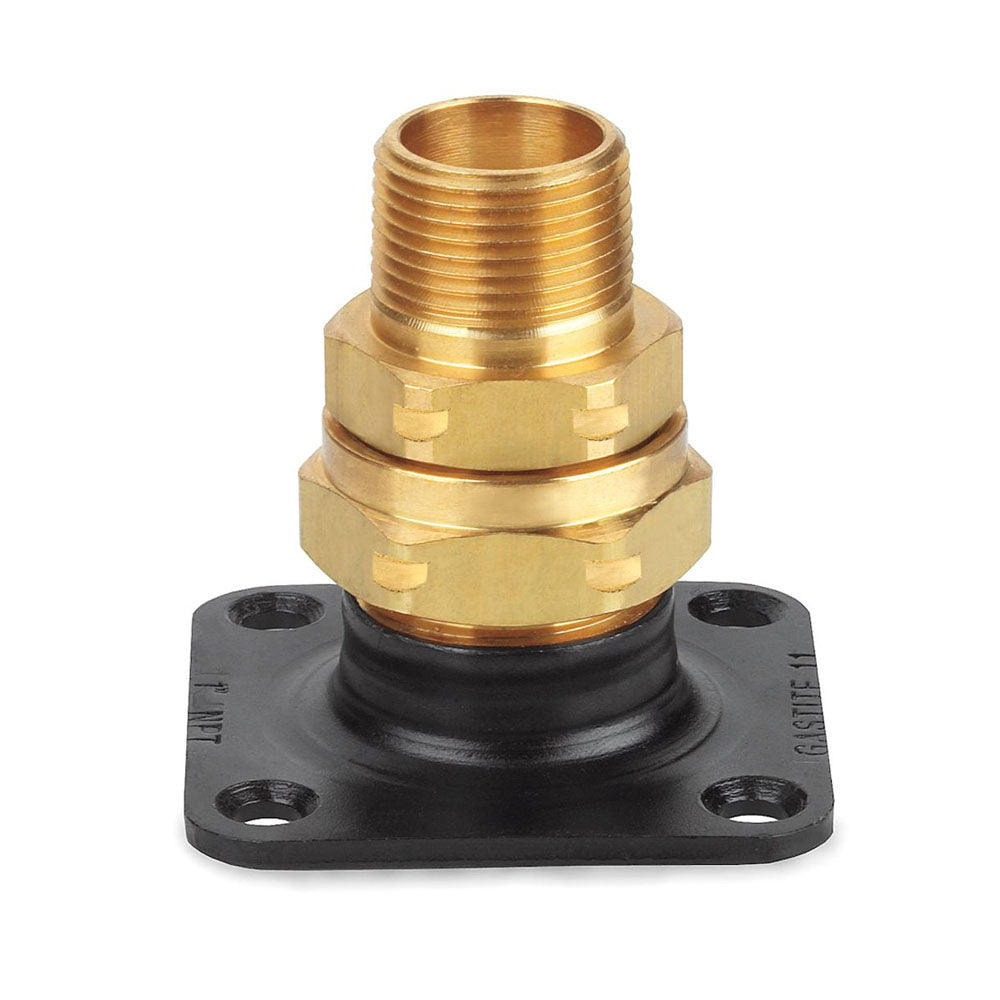

Titeflex XR3TRM-16-6 Gastite 1 inch brass termination fitting with steel square flange 1 inch NPT

Product Description

The TITEFLEX XR3TRM-16-6 is a 1 inch termination fitting designed for fuel gas piping systems. Constructed from CA360 brass for the fitting and zinc-coated steel for the flange, it features a flanged by male threaded end connection. This XR3 series fitting is suitable for flexible gas piping, including FlashShield CSST and corrugated stainless steel tubing, operating at a pressure rating of 25 PSI within a temperature range of -40 to 160 degrees Fahrenheit.

• Features a metal-to-metal seal with no split ring, O-ring, or gasket.
• Designed with a tool-less flare for simplified installation.
• Self-guiding assembly ensures a perfectly even flare.

Product Highlights

Designed for secure and efficient connection in fuel gas piping, featuring a tool-less flare design and metal-to-metal seal.

Product Information

Standard Information

• Brand: TITEFLEX
• Manufacturer Part Number: XR3TRM-16-6

Technical Specifications

• UPC: 840889021044
• Category: Plumbing
• Inventory SKU: 1477346
• Reference ID: TITEFLEXXR3TRM166
• Series: XR3
• Unit of Measure: EA
• Butler Part Number: 477478
• Applicable Standard: ANSI, CSA, ICC-ES, IAPMO
• Application: Fuel Gas Piping System
• Designated Size: 1 Inch
• End Connection: Flanged x Male Threaded
• Item Type: Termination Fitting
• Material: CA360 Brass (Fitting), Zinc Coated Steel (Flange)
• Pressure Rating: 25 PSI
• Temperature Rating: -40 to 160 Deg F
• Fitting Type: Flare
