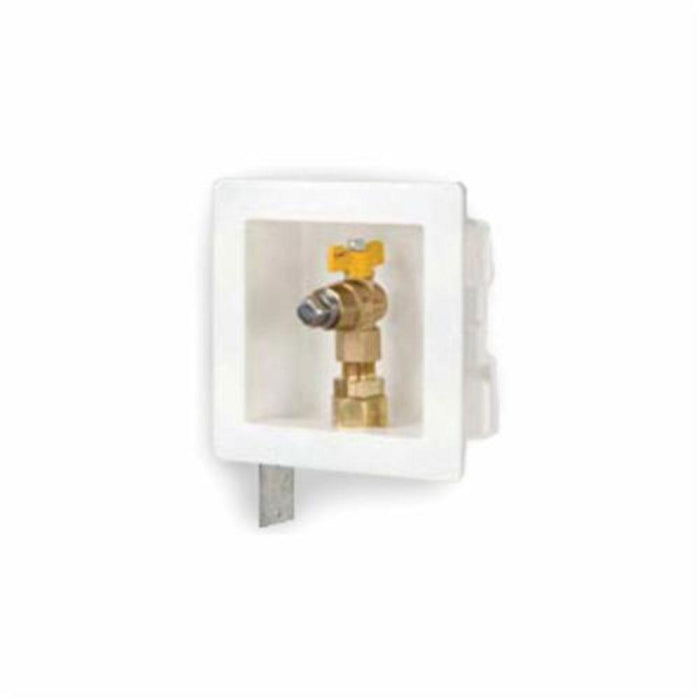

Titeflex XR3OUTLETBOX-8 Gastite recessed gas outlet box kit with 1/2 inches XR3 fitting

Product Description

The TITEFLEX XR3OUTLETBOX-8 is a Gastite Recessed Gas Outlet Box Kit designed for gas piping systems. This kit includes a 1/2 inch XR3 Fitting, facilitating connections within FlashShield+ Flexible Gas Piping Systems. It is approved for concealed use, ensuring a clean installation. The system complies with ANSI LC 1 for Fuel Gas Piping Systems Using CSST and is listed with CSA, ICC, and IAPMO, meeting protective jacket standards.

• Recessed gas outlet box kit
• Includes 1/2 inch XR3 Fitting
• Approved for concealed use

Product Highlights

Recessed gas outlet box kit with 1/2 inch XR3 fitting, approved for concealed use.

Product Information

Standard Information

• Brand: TITEFLEX
• Manufacturer Part Number: XR3OUTLETBOX-8

Technical Specifications

• Manufacturer: Titeflex
• Manufacturer Part Number: XR3OUTLETBOX-8
• Series: XR3
• Pipe Thread: 1/2 inch
• Operating Temperature: -40 to 160 deg F
• Maximum Operating Pressure: 25 psi
• Hex Nut/Fitting Size: 1-1/4 inch hex nut, 1-1/8 inch hex fitting
• Finish Plate Size: 6-13/16 inch
• Box Size: 5-3/16 inch
• Includes: XR3 Male Termination Fitting, Valve Box, Valve, Finish Plate, Mounting Bracket, Jam Nut, Plug
• Brand: Gastite
