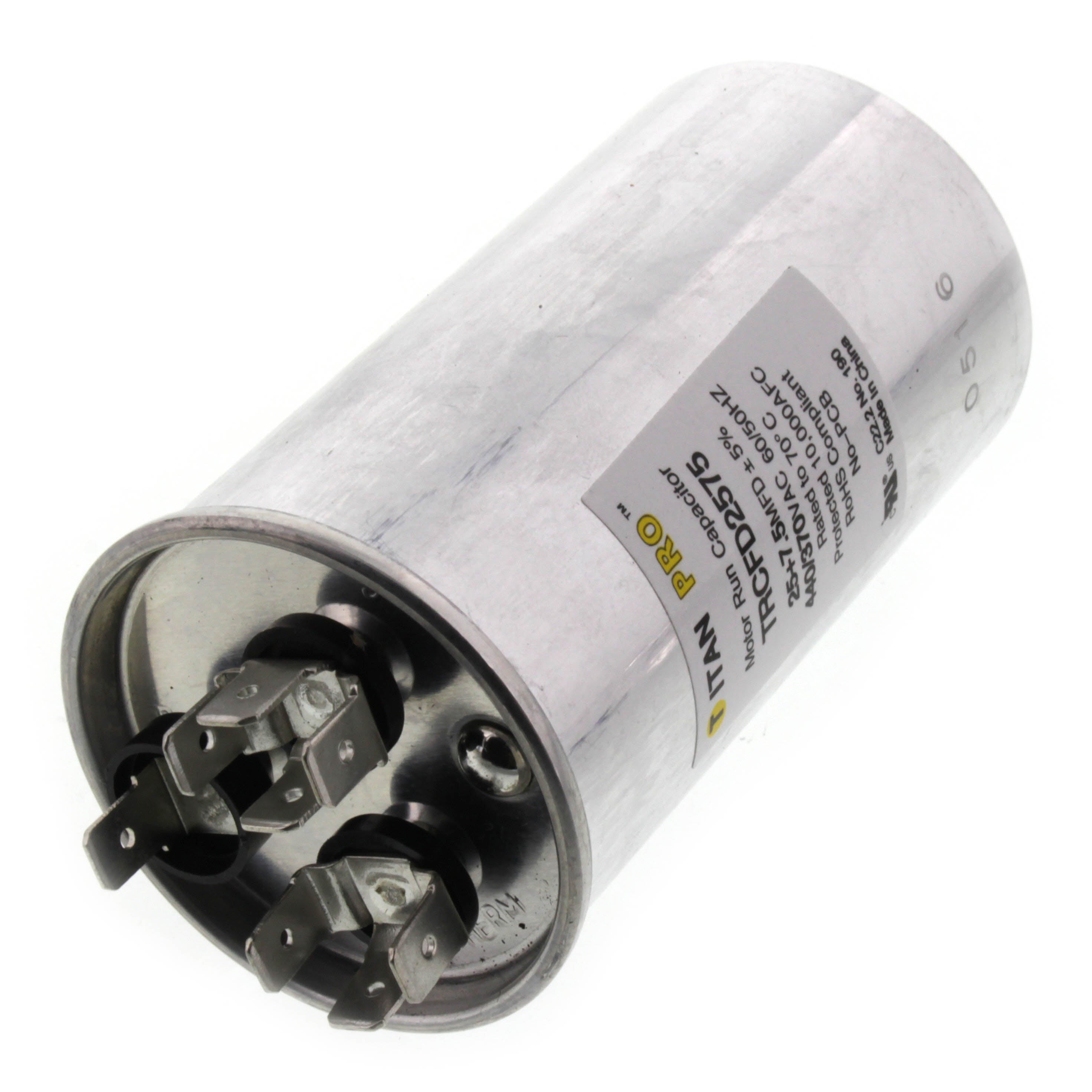

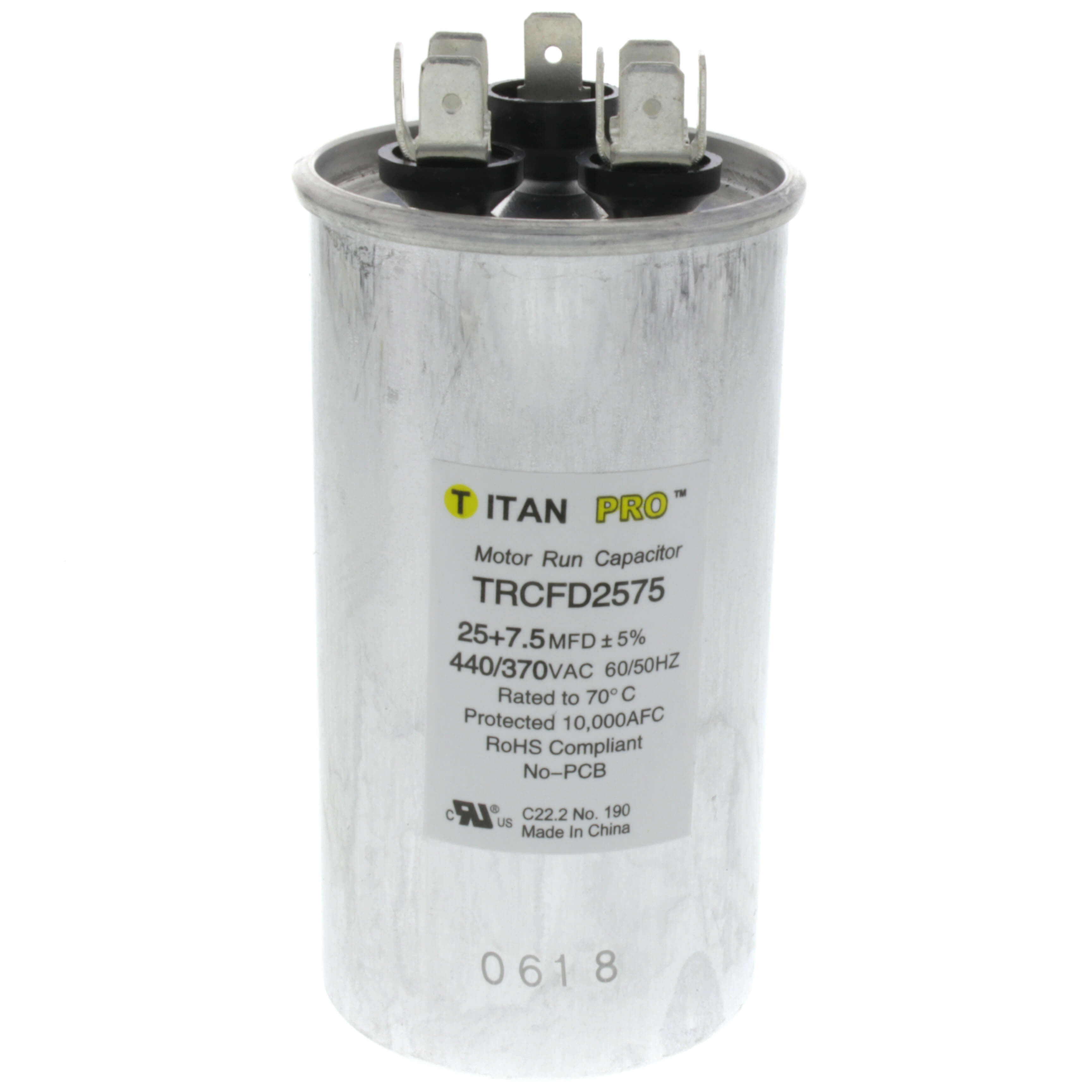

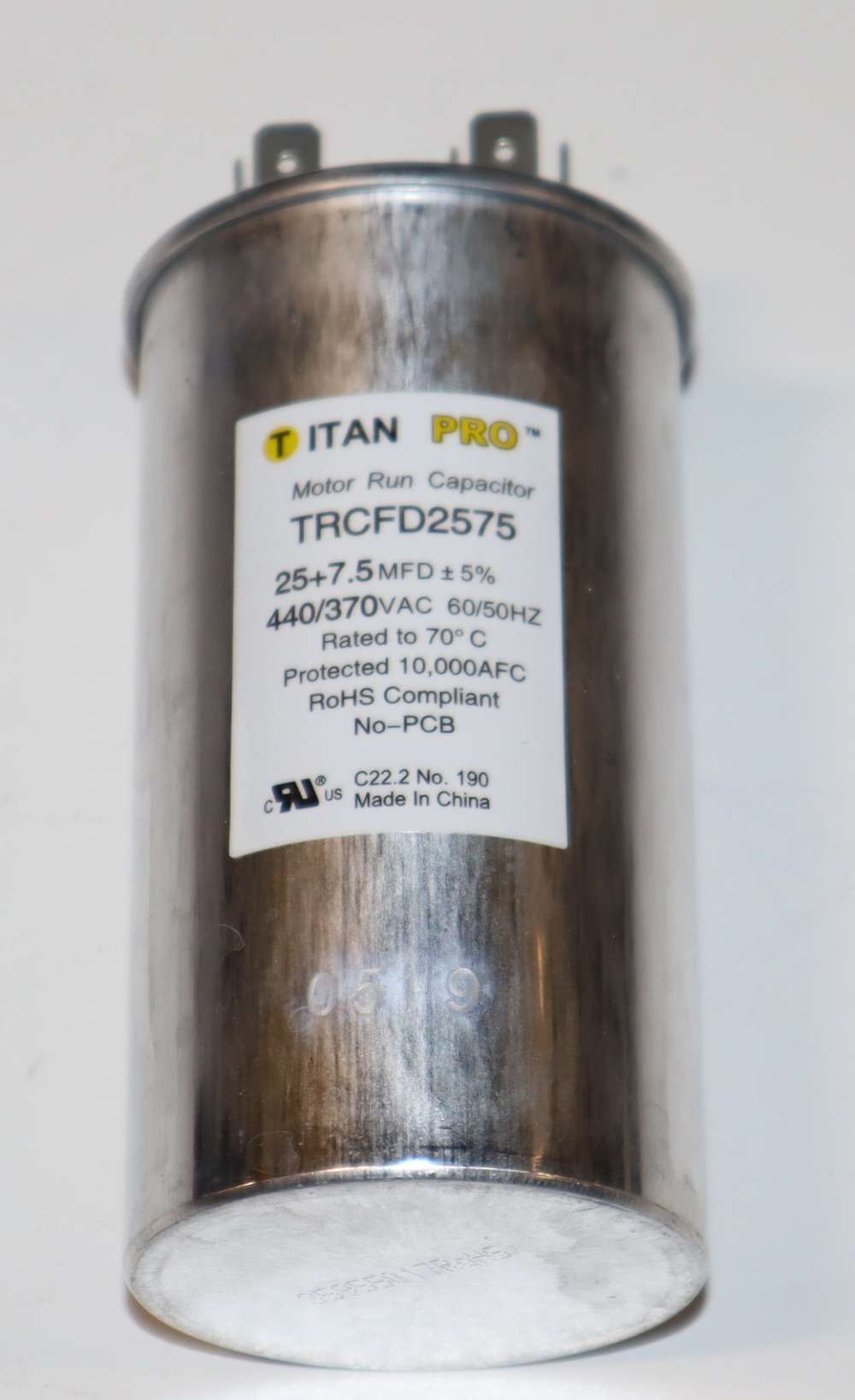

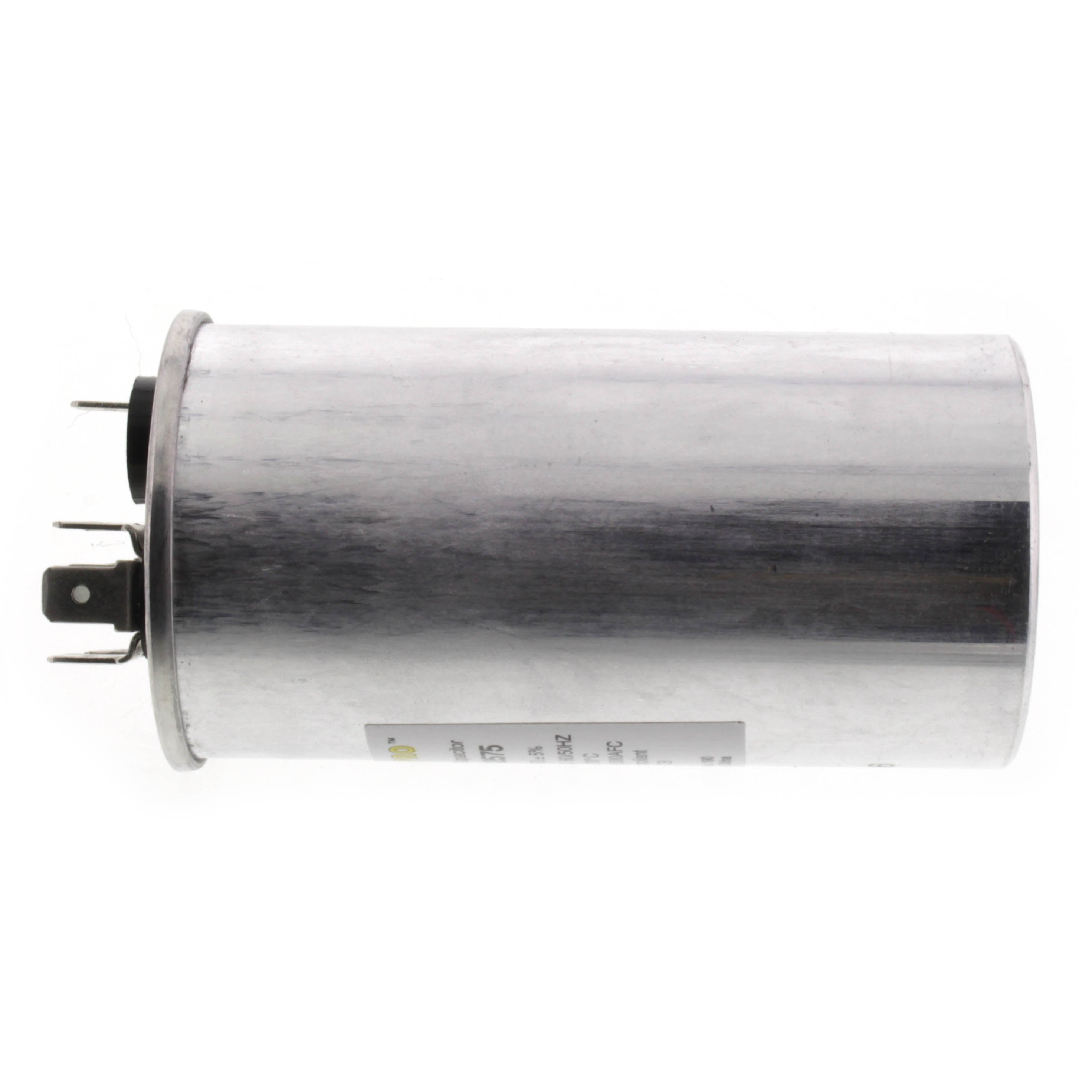

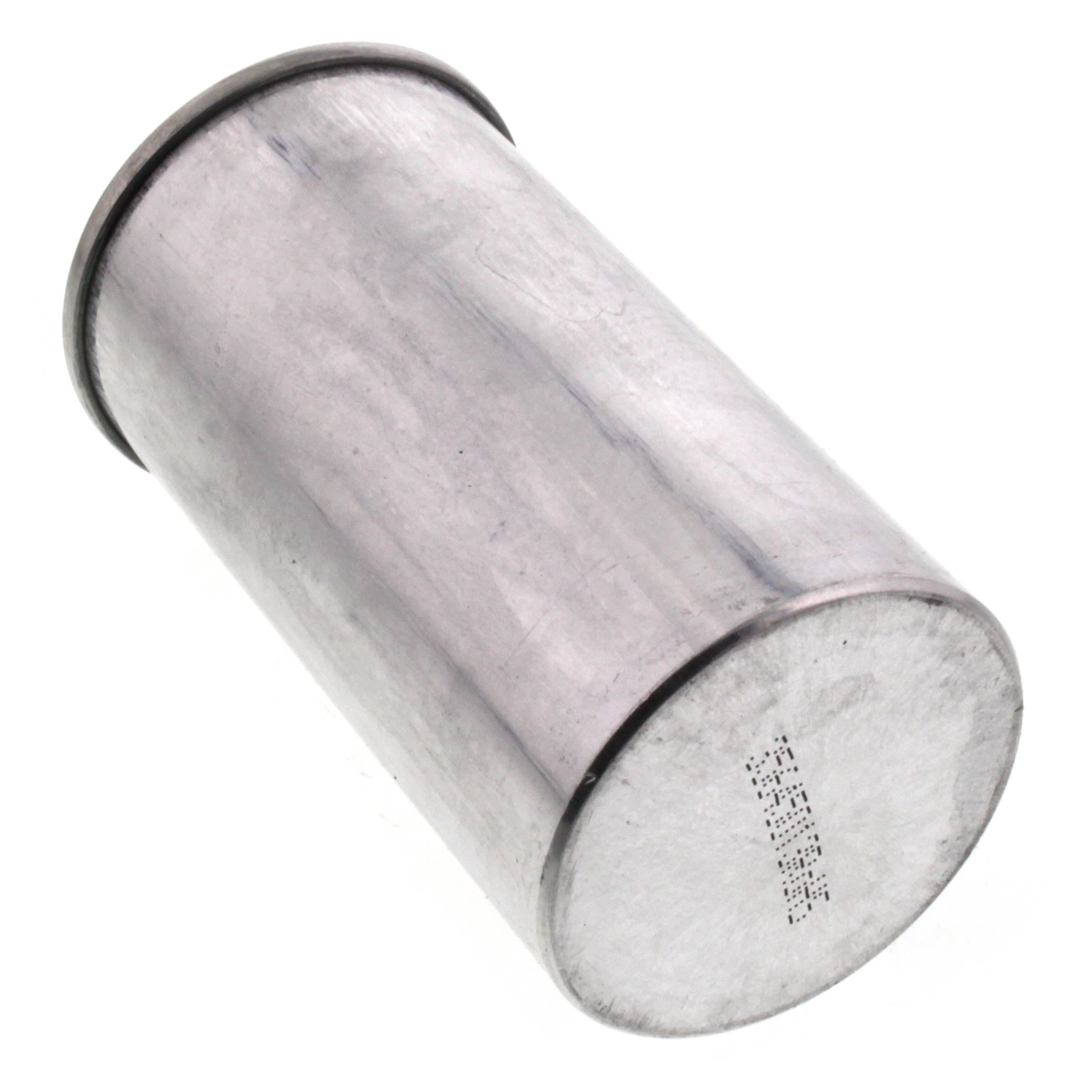

TitanPro TRCFD2575 HVAC Round Dual Motor Run Capacitor 25/7.5 MFD/UF 440/370 Volts

Product Description

The TITAN PRO TRCFD2575 is an HVAC round dual motor run capacitor with 25/7.5 MFD/UF and 440/370 Volts. This dual run motor capacitor has a round shape and contains two capacitance values in a single unit. It can replace two single run capacitors and connect to two motors.

• Round shape
• Contains two capacitance values in a single unit
• Can take the place of two single run capacitors

Product Highlights

This capacitor is designed for HVAC applications, connecting to motors such as a blower and a compressor placed close together.

Product Information

Standard Information

• Brand: TITAN PRO
• Manufacturer Part Number: TRCFD2575
• Country of Origin: China

Technical Specifications

• Shape: Round
• Material: Polypropylene
• Capacitance: 25/7.5 MFD
• Operating Voltage: 440/370V AC
• Brand: TITAN PRO
• MPN: TRCFD2575
• Maximum Voltage: 440 Volts
• Voltage: 440/370V
• Product Type: Capacitor
• Hz: 60/50
• Item: Motor Dual Run Capacitor
• Frequency: 60/50 Hz
• Standards: IEC 60252-1:2001
• Case Height: 3.75 in
• EIA UL Base: A
• Temp. Range: -40 Degrees to 70 Degrees C
• For Use With: Electric Motors
• Case Material: Aluminum
• Overall Depth: 2 in
• Overall Width: 1.96875 in
• Terminal Type: 1/4 in Male Quick-Connect
• Cover Material: Steel
• Overall Height: 4.25 in
• Capacitor Shape: Round
• Connection Type: Quick Connect
• Terminal Gender: Male
• Max. Temperature: 70 Degrees C
• Min. Temperature: -40 Degrees C
• Number of Pieces: 1
• Terminal Tab Width: 0.25 in
• Number of Terminals: 3
• Motor Capacitor Type: Motor Dual Run Capacitor
• Terminal Designations: Standard
• Capacitor Voltage Group: 440V AC
• Microfarad Rating: 25/7.5
• EIA Tolerance Code: A
• Housing Shape: Round
• Overall Diameter: 1.96875 in
• Operating Temperature - Minimum: -40 °C
• Operating Temperature - Maximum: 70 °C
• Housing Height: 3.75 in
• Terminal Connection Type: Quick Connect
• Sub-brand: Titan Pro
