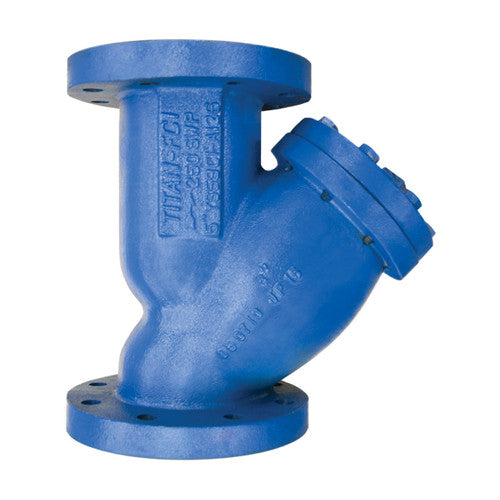

TITAN YS58CI-6 Flow Control Y-Strainer

Product Description

The TITAN YS58CI-6 is a flanged Y-strainer. This product is made for use in pipeline systems to filter out debris. It is made of cast iron that meets A126 Grade B standards. The strainer has flanged end connections and conforms to ANSI Class 125 and ASME/ANSI B16.1 standards. It can handle pressure up to two hundred PSI and temperatures as high as one hundred fifty degrees Fahrenheit. The epoxy paint offers protection against corrosion.

• Tapped NPT blow-off connection for easy cleaning.
• Precision machined seats for proper screen positioning.
• Open area ratio is two point five times larger than the pipeline.

Product Highlights

This Y-strainer is efficient for removing unwanted materials from fluid systems. Its design allows for easy maintenance and durability in harsh conditions.

Product Information

Standard Information

• Brand: TITAN
• MPN: YS58CI-6

Technical Specifications

• Sizes: Two to eight inches
• End Type: Flanged
• Material: Cast Iron (A126 Gr. B) - Lead Free
• Type: Y (Wye) Strainer
• ANSI Class: 125
• Pressure/Temperature Rating: 200 PSI @ 150°F
• Referenced Standards & Codes: ASME/ANSI B16.1
• Standard Screen Selections for Liquid (2 - 4 in.): 1/16 (.0625)
• Open Area for 2 - 4 in.: 51.8%
• Standard Screen Selections for Liquid (5 - 8 in.): 1/8 (.125)
• Open Area for 5 - 8 in.: 40%
