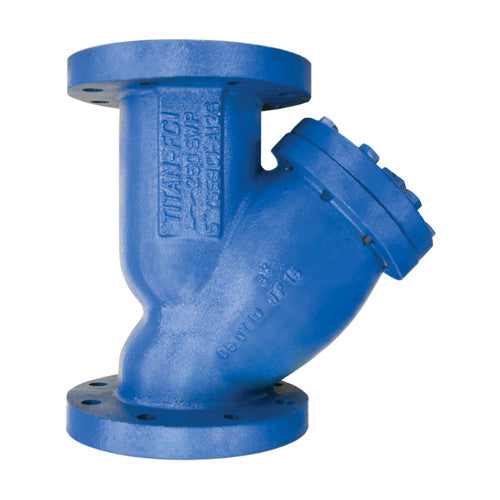

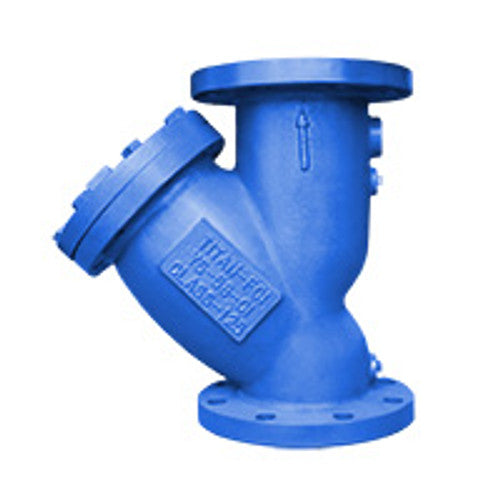

TITAN YS58CI-4 Y-Strainer

Product Description

The TITAN YS58CI-4 is a 4-inch Y-strainer that is built for flanged end applications. Designed for use in piping systems that meet ASME/ANSI B16.1 standards, this strainer is made from cast iron (A126 Gr. B) to ensure material integrity. It operates effectively under a pressure rating of 200 PSI at one hundred fifty degrees Fahrenheit. The Y-strainer is a crucial component that protects downstream equipment by filtering out debris from pipelines.

• Features a tapped NPT blow-off connection for easy cleaning of the straining element.
• Constructed from durable cast iron (A126 Gr. B) for reliable performance.
• Compliant with ASME/ANSI B16.1 standards, suitable for various piping systems.

Product Highlights

The design of the Y-strainer allows for a straining capacity that is usually two and a half times greater than the pipeline size, enhancing its effectiveness. It is finished with epoxy to resist rust and corrosion.

Product Information

Standard Information

• Type: Y (Wye) Strainer
• Size: 4 inches

Technical Specifications

• Body Material: Cast Iron
• Temperature Rating: 200 PSI @ 150 degrees Fahrenheit (non-shock)
• End Type: Flanged
• ANSI Class: 125
• Pressure/Temperature Rating: 200 PSI @ 150 degrees Fahrenheit
• Referenced Standards & Codes: ASME/ANSI B16.1
• Screen Selections Liquid: 1/16 inches
• Sizes Available: 2 to 8 inches; larger sizes are available upon request
