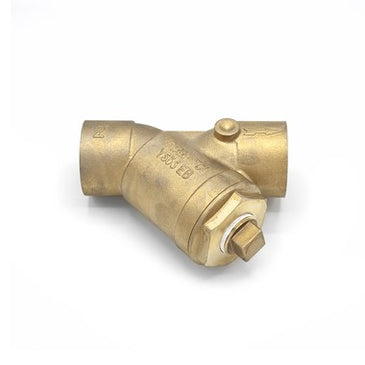

TITAN YS56EB-2 Y Strainer

Product Description

The TITAN YS56EB-2 Y Strainer is built for effective use in piping systems. It features a robust ECO Brass construction combined with a durable cast bronze body. This strainer uses solder end connections and is rated for high pressure, making it ideal for various applications.

• Rated to four hundred PSI at one hundred degrees Fahrenheit for sizes one quarter to one and a half inches.
• Stainless steel straining element with twenty mesh filtration.
• Suitable for horizontal or vertical installation, ensuring optimal flow management.

Product Highlights

This strainer is essential for removing debris from pumps, meters, compressors, nozzles, and turbines. Its design allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: TITAN Flow Controls
• Application: Piping System

Technical Specifications

• Item Number: YS56EB-2
• Material: ECO Brass
• Body Material: Cast Bronze
• End Connection: Solder
• Straining Element: Stainless Steel
• Sizes: One quarter to three inches
• WOG: Four hundred PSI at one hundred degrees Fahrenheit (one quarter to one and a half) and three hundred fifteen PSI at one hundred degrees Fahrenheit (two to three)
• Details: Class 125, twenty mesh
