TITAN YS56BZ-12 Flow Control Y-Strainer

Product Description

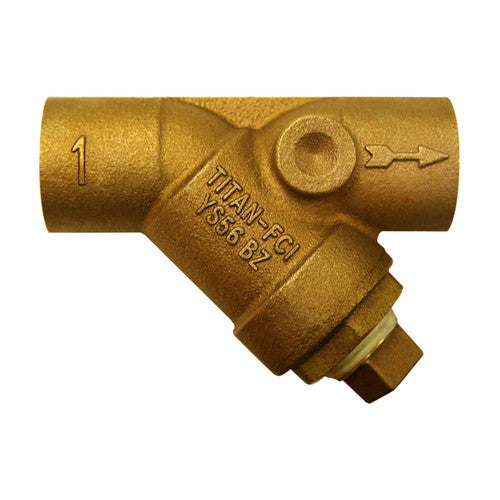

The TITAN YS56BZ-12 is a Y-Strainer for piping systems that helps remove debris. Made from bronze (C84400) ASTM B584, it meets ANSI Class 125 standards. This strainer is compatible with solder end types and available in sizes from one quarter to three inches.

• Large straining capacity for effective debris removal.
• Features a tapped NPT blow-off connection for easy cleaning.
• Precision machined seats to ensure screen placement and prevent bypass.

Product Highlights

This strainer facilitates self-cleaning and simplifies maintenance.

Product Information

Standard Information

• Material: Bronze (C84400) ASTM B584
• Type: Y (Wye) Strainer

Technical Specifications

• Sizes: 1/4 - 3 inches
• End Type: Solder
• ANSI Class: 125
• Pressure/Temperature Rating (1/4 - 1 1/2 in.): 400 PSI at 100°F
• Pressure/Temperature Rating (2 - 3 in.): 315 PSI at 100°F
• Open Area: 41%
• Standard Screen Selections (1/4 - 2 in.): 20 Mesh
• Standard Screen Selections (2 1/2 - 3 in.): 1/16 inches
