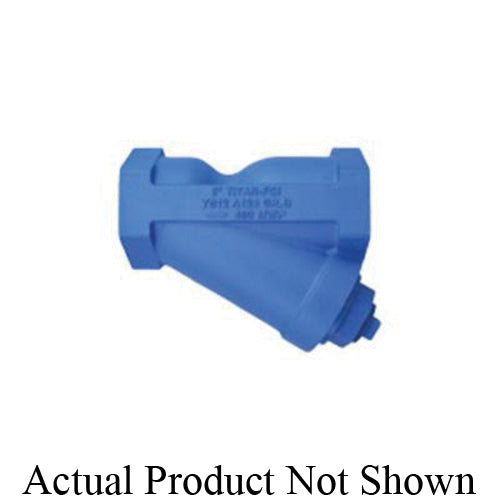

Titan YS12I0038 Wye Strainer 3/8 in Nominal 3.188 in Overall Length 1/4 in NPT Blow-Off

Product Description

The Titan Wye Strainer, MPN YS12I0038, is designed to effectively filter debris from pipelines. It features a cylindrical straining element that removes unwanted particles, ensuring optimal flow. This strainer can be installed in both horizontal and vertical pipelines and is ideal for regular maintenance routines that require screen cleaning.

• Nominal size of three eighths inches
• Overall length of three point one eight eight inches
• Equipped with a quarter inch NPT blow-off for easy cleaning

Product Highlights

This strainer is built from cast iron with an epoxy painted finish for enhanced durability. Its design includes precision machined seats for accurate screen positioning and natural gas compatibility.

Product Information

Standard Information

• Manufacturer: Titan Flow Control
• Brand: Titan

Technical Specifications

• Blow-Off Size: 1/4 in NPT
• Body Material: Cast Iron
• Connection Type: Thread
• Finish: Epoxy Painted
• Grade: B
• Nominal Size: 3/8 in
• Overall Length: 3.188 in
• Series: YS12-CI
• Softgoods Material: Grafoil
