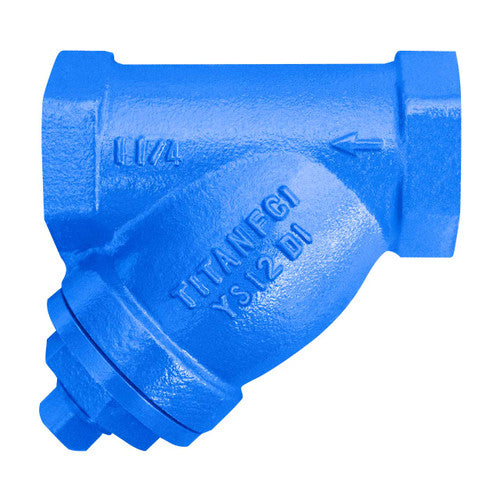

TITAN YS12DI-12 Ductile Iron Y-Strainer

Product Description

The TITAN YS12DI-12 is a Y-Strainer made from ductile iron A395. It is suitable for applications where high temperatures and abrasion resistance are required.

• Features straight threads for easy cap removal and reassembly.
• Equipped with a stainless steel straining element.
• Includes a tapped NPT blow-off connection for self-cleaning.

Product Highlights

This product is designed with precision-machined screen seats to ensure proper screen positioning and minimize bypass.

Product Information

Standard Information

• Body Material: Ductile Iron A395
• Gasket: Nitrile Rubber or Grafoil gasket available

Technical Specifications

• Straining Element: Stainless Steel
• Mesh: 20 Mesh
• WOG: 640 PSI @ 100°F
• Sizes: 1/4 - 3 inches
• End Type: Threaded
• Pressure/Temperature Rating: 640 PSI @ 100°F
• Referenced Standards: ASME/ANSI B16.42
• Open Area: 41%
