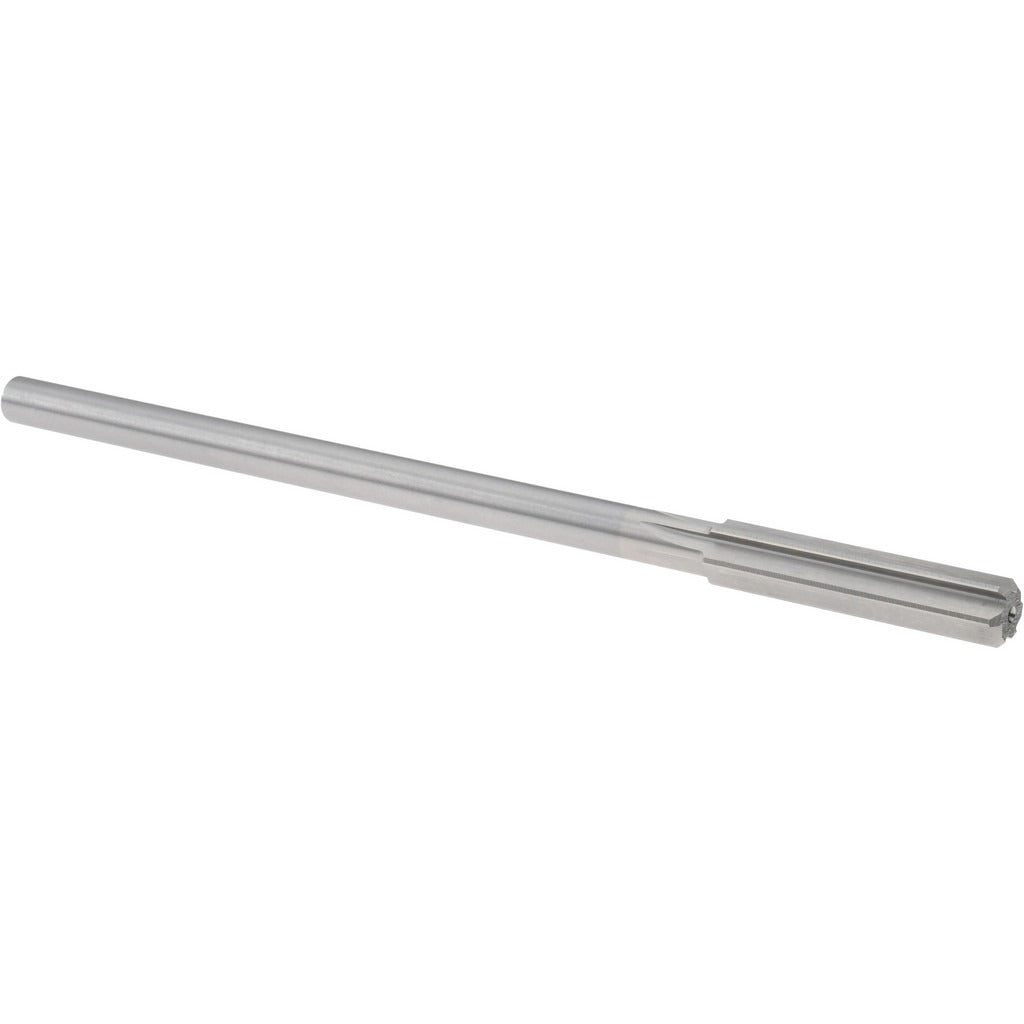

Titan Usa TR96151 Chucking Reamer 0.376 in Hss 6 Flute

Product Description

The TITAN USA TR96151 is a straight-flute chucking reamer designed for precision hole finishing in machine shop and production environments. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, it delivers consistent sizing accuracy with a diameter tolerance of +0.0002 to -0.0000 inches. The reamer measures 0.3760 inches in diameter and 7 inches in overall length, with a 1-3/4 inch flute length and a straight-cylindrical shank for secure chuck mounting. Six right-hand cutting flutes provide smooth material removal and clean bore finishes. This tool is installed and operated by machinists, tool-and-die makers, and maintenance technicians working on precision reaming applications.

The TR96151 is suited for finishing drilled or bored holes to close-tolerance diameters in the 0.3500 to 0.3999 inch range. It is intended for use in drill presses, lathes, milling machines, or CNC machining centers where a straight-cylindrical shank can be secured in a drill chuck or collet. Typical applications include production reaming of through-holes and blind holes in ferrous and non-ferrous materials where dimensional accuracy and surface finish are critical.

Key Features

• 0.3760 inch reaming diameter with a tolerance of +0.0002 to -0.0000 inches for precise bore sizing
• High-speed steel (HSS) construction for durability across a wide range of workpiece materials
• Six straight right-hand cutting flutes for smooth, consistent stock removal
• Bright, uncoated finish — no coating to interfere with close-tolerance performance
• Straight-cylindrical shank for straightforward chuck or collet mounting
• 7 inches overall length with 1-3/4 inch flute length for reach in standard machining setups

Compatibility

Part of the TITAN USA TR96 series of straight-flute chucking reamers. Designed for use in any machine tool equipped with a drill chuck or collet capable of accepting a straight-cylindrical shank in the applicable diameter range.

Installation Notes

Chucking reamers are installed by qualified machinists. Ensure the workpiece is securely fixtured and the machine spindle is properly aligned before reaming to avoid bell-mouthing or oversizing the bore. Secure the shank fully in the chuck or collet to the recommended grip depth and verify runout before use. Apply appropriate cutting fluid for the workpiece material to extend tool life and improve surface finish.
