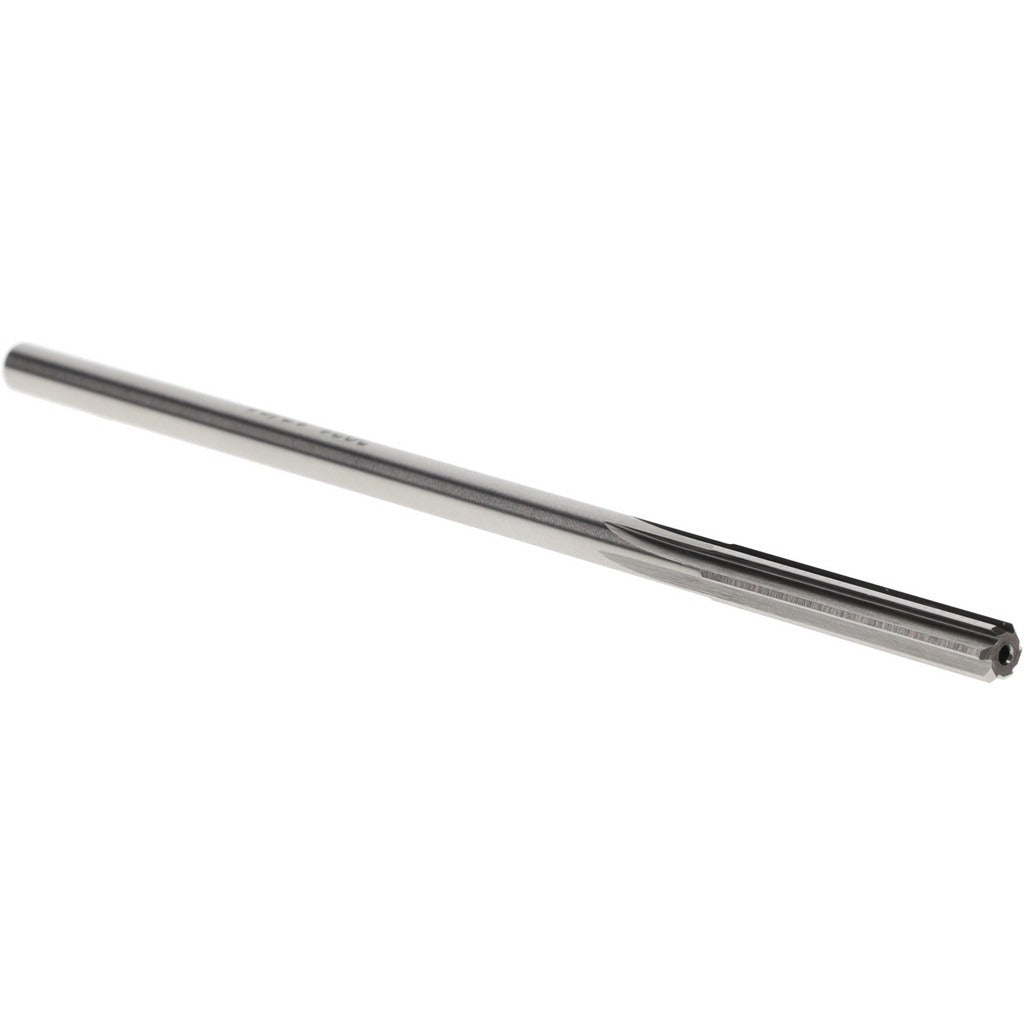

Titan Usa TR96100 Chucking Reamer 13/64 in Hss 6 Flute

Product Description

The TITAN USA TR96100 is a straight-flute chucking reamer designed for precision hole finishing in metalworking applications. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers accurate sizing in drilled or bored holes. It features a 13/64 inch (0.2031 inch decimal) diameter with a tight tolerance of +0.0002 to -0.0000 inches, ensuring consistent, repeatable results. The straight-cylindrical shank is compatible with standard drill chucks and collet holders. With 6 flutes and a 1-1/4 inch flute length, it produces a clean, smooth bore finish. The overall length is 5 inches, making it suitable for bench drills, drill presses, and CNC machining centers. Machinists and tool-and-die professionals are the primary installers of this type of tooling.

This reamer is suited for light to medium material removal in ferrous and non-ferrous metals, including steel, aluminum, brass, and cast iron. It is used in production and job-shop environments where hole diameter accuracy and surface finish are critical. The right-hand cutting direction and straight flute geometry make it appropriate for through-holes and shallow blind holes in manual and CNC machine tool setups. The TR96 series is a standard chucking reamer line intended for general-purpose reaming operations.

Key Features

• 13/64 inch (0.2031 inch) diameter with +0.0002 to -0.0000 inch tolerance for precision sizing
• High-speed steel (HSS) construction for durability across common workpiece materials
• 6-flute straight geometry for smooth cutting action and clean bore finish
• Bright, uncoated finish suitable for use with standard cutting fluids
• Straight-cylindrical shank for direct mounting in drill chucks or collet holders
• Right-hand cutting direction, compatible with standard machine spindle rotation

Compatibility

Designed as a general-purpose chucking reamer compatible with standard drill press, turret lathe, and CNC machining center setups that accept a straight-cylindrical shank tool.

Installation Notes

Secure the straight-cylindrical shank firmly in a drill chuck or collet of appropriate size before use. Power down and lock out the machine spindle before changing or inspecting tooling. Apply a suitable cutting fluid for the workpiece material to extend tool life and improve surface finish. Inspect the reamer for chipping or wear before each use and replace if cutting edges are damaged.
