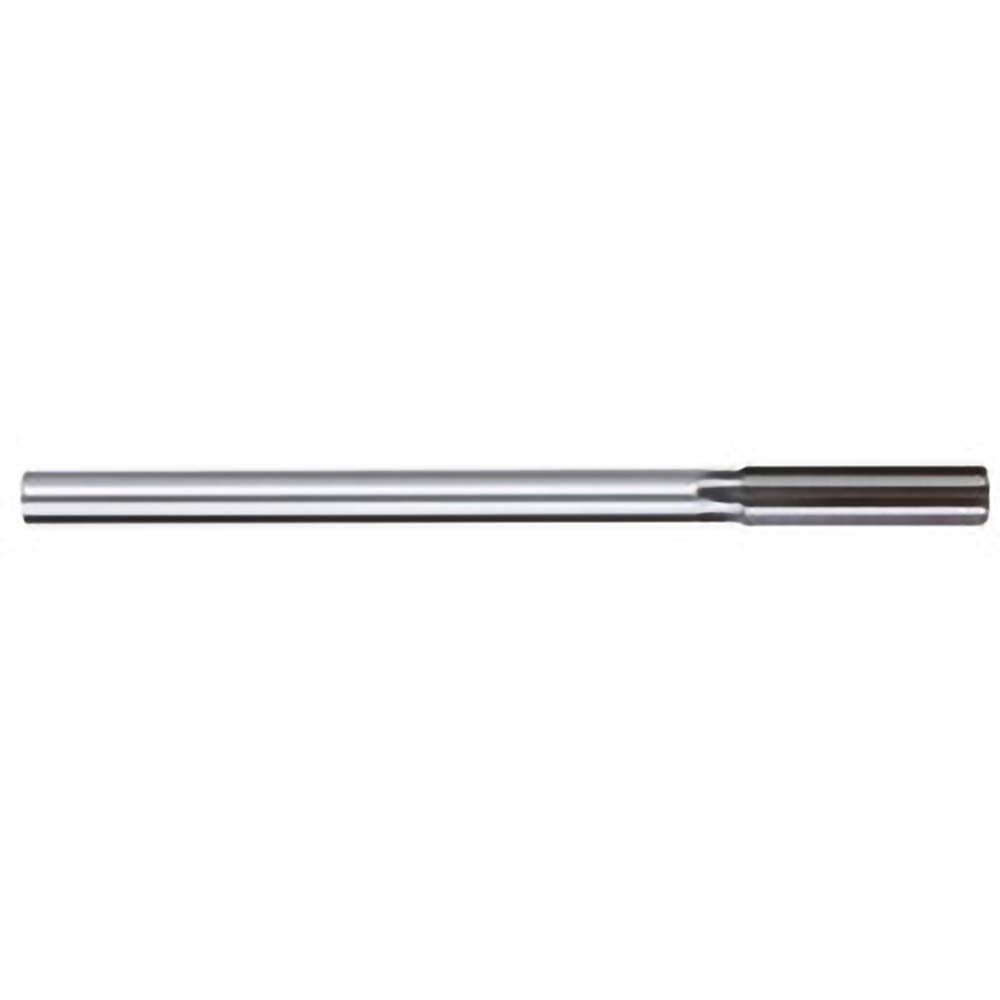

Titan Usa TR96078 Chucking Reamer 0.1575 in Hss 6 Flute

Product Description

The TITAN USA TR96078 is a straight-flute chucking reamer designed for precision hole finishing in metalworking applications. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this reamer delivers clean, accurate bores in a wide range of workpiece materials. It features a 0.1575-inch diameter cutting edge, a 1-inch flute length, and a 4-inch overall length (OAL), making it well suited for moderate-depth reaming in production and maintenance environments. The straight-cylindrical shank seats securely in standard drill chucks and collet holders. With 6 right-hand flutes, it provides smooth cutting action and consistent sizing on finish passes.

This reamer is used in machine shop, toolroom, and maintenance repair operations (MRO) where a finished hole diameter of 0.1575 inches (4.00 mm) is required. It is appropriate for use in drill presses, lathes, milling machines, and CNC machining centers. The straight flute geometry suits non-interrupted cuts in through-holes and blind holes with sufficient depth clearance. Machinists and toolroom technicians working with ferrous and non-ferrous metals will find this tool applicable across a range of production and prototype scenarios.

Key Features

• 0.1575-inch (4.00 mm) reamer diameter for precise hole finishing
• High-speed steel (HSS) construction for durability across common metalworking materials
• Straight-cylindrical shank compatible with standard drill chucks and collet holders
• 6 right-hand straight flutes for smooth, consistent cutting action
• Bright, uncoated finish suitable for general-purpose reaming applications
• 4-inch OAL with 1-inch flute length for controlled depth engagement

Compatibility

Designed as a general-purpose chucking reamer for use in drill presses, lathes, milling machines, and CNC machining centers equipped with standard drill chucks or collet systems accepting a straight-cylindrical shank.

Installation Notes

Installation and use of this reamer should be performed by qualified machinists or toolroom technicians. Ensure the machine spindle is fully stopped and power is locked out before mounting or removing the tool from its holder. Verify shank seating and chuck or collet tightness before starting the cut. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain hole quality.
