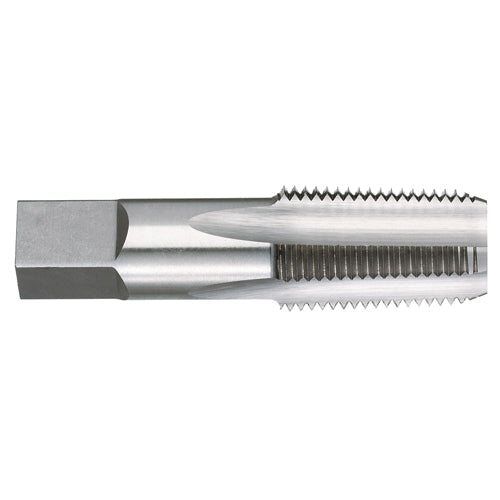

TITAN USA TITUS-TT93406 Titan USA TT93406 775 Straight Flute Taper Pipe Tap 1/4-18

Product Description

The Titan USA taper pipe tap, model TITUS-TT93406, is a tool designed for cutting threads into pipes. This straight flute tap has a thread size of one-fourth by eighteen inches and is made from high-speed steel (HSS). It features a plug chamfer and a right-hand cutting direction.

• Thread Size: 1/4-18 NPT
• Overall Length: 2-7/16 inches
• Four flutes for efficient cutting

Product Highlights

This taper pipe tap is ideal for creating internal threads in metal pipes, making it suitable for various plumbing applications.

Product Information

Standard Information

• Brand: TITAN USA
• MPN: TITUS-TT93406

Technical Specifications

• Chamfer Type: Plug
• Cutting Direction: Right Hand
• Finish/Coating: Uncoated
• Material: HSS
• Measurement System: Imperial
• Number of Flutes: 4
• Overall Length: 2-7/16 inches
• Series: 775
• Shank Diameter: 9/16 inches
• Square Size: 0.421 inches
• Thread Length: 1-1/16 inches
• Thread Standard: NPT
• Type: Straight Flute
• Thread Size: 1/4-18
