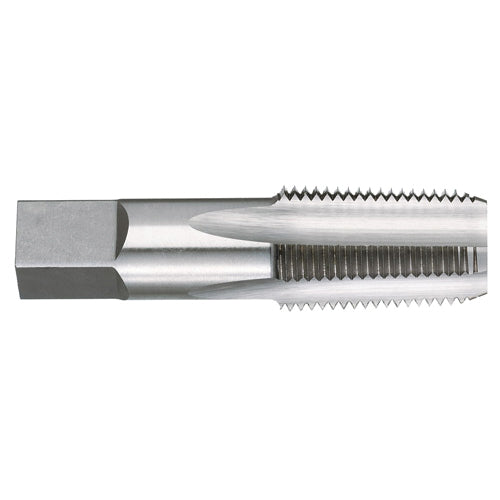

TITAN USA TITUS-TT93401 Small Shank Straight Flute Taper Pipe Tap 1/8-27

Product Description

Titan USA is a recognized brand in cutting tools. The TITUS-TT93401 is a small shank straight flute taper pipe tap with a thread size of 1/8-27. It is designed for use in metalworking applications where threading is required.

• 1/8-27 thread size, NPT thread standard
• Two and one-eighth inches overall length
• Constructed from high-speed steel, uncoated for strength

Product Highlights

This taper pipe tap features a plug chamfer and four flutes, allowing for efficient cutting in right-hand direction.

Product Information

Standard Information

• Brand: TITAN USA
• Type: Small Shank Straight Flute

Technical Specifications

• Chamfer Type: Plug
• Cutting Direction: Right Hand
• Finish/Coating: Uncoated
• Material: HSS
• Measurement System: Imperial
• Number of Flutes: 4
• Overall Length: 2-1/8 inches
• Series: 775
• Shank Diameter: 5/16 inches
• Square Size: 0.234 inches
• Thread Length: 3/4 inches
• Thread Standard: NPT
• Thread Size: 1/8-27
