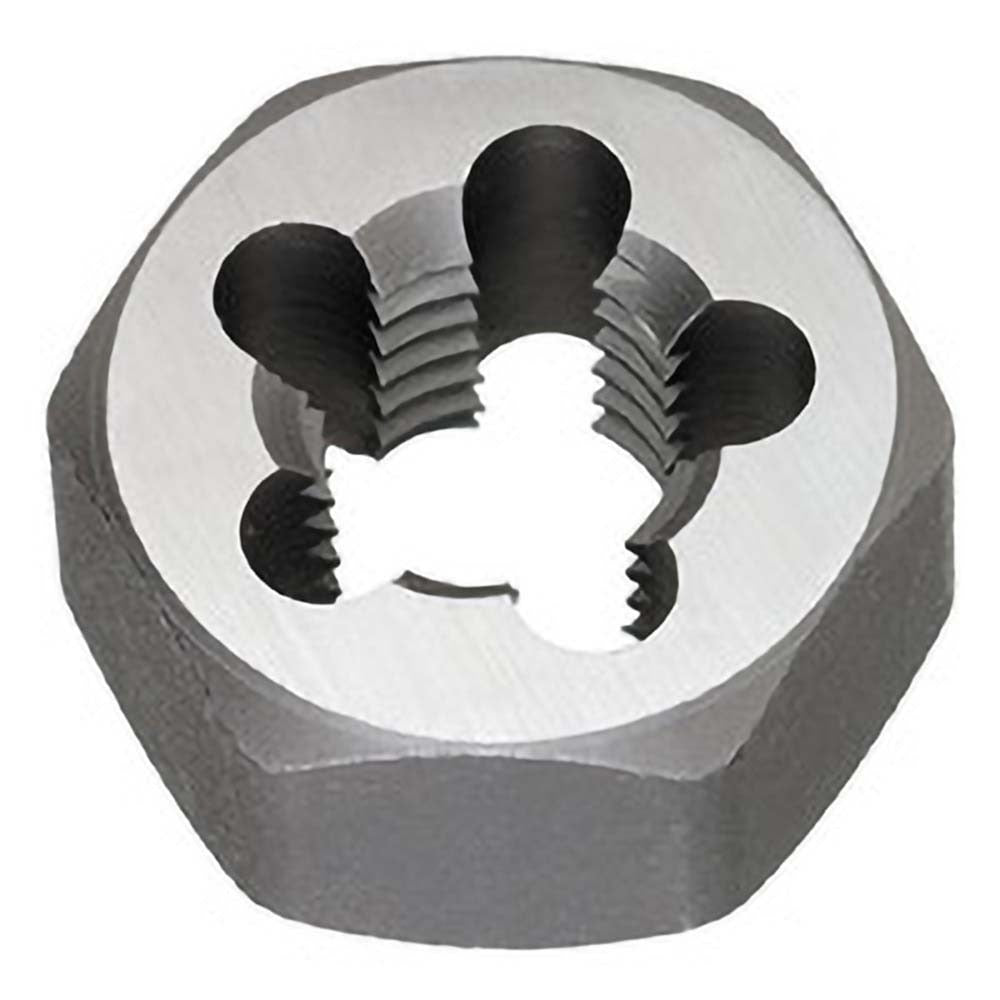

Titan Usa TE80705 Hex Pipe Conduit Die 3/4-14 Npt

Product Description

The TITAN USA TE80705 is a hex pipe conduit die designed to cut 3/4-14 NPT threads on pipe and conduit. Made from carbon steel, this die produces right-hand National Pipe Taper threads in a single pass when used with a compatible die stock or pipe threading machine. The hex body measures 2 inches across flats with a thickness of 13/16 inches, allowing secure engagement in standard hex die holders. Plumbers, pipefitters, and conduit installers rely on this die for field and shop threading of pipe runs where NPT fittings will be assembled.

This die is suited for residential and commercial plumbing, mechanical piping, and electrical conduit applications where 3/4-inch NPT threaded connections are required. It is appropriate for use in any setting where code-compliant tapered pipe threads must be cut on-site or in a fabrication shop. The right-hand thread direction is the standard for the vast majority of NPT pipe and conduit installations.

Key Features

• 3/4-14 NPT thread size for standard 3/4-inch pipe and conduit threading
• Right-hand thread direction matches standard NPT assembly requirements
• Carbon steel construction for durability in production and field threading use
• 2-inch hex body fits standard hex die stocks and threading machine heads
• 13/16-inch thickness for stable seating in compatible die holders
• Sold individually — minimum order quantity of one

Compatibility

Designed for use with die stocks and pipe threading machines that accept 2-inch hex dies and are rated for 3/4-14 NPT cutting. Specific machine compatibility should be confirmed against the threading equipment manufacturer's die specification chart before use.

Installation Notes

Die cutting should be performed by a licensed pipefitter, plumber, or qualified tradesperson familiar with NPT thread standards. Apply threading oil liberally to both the die and pipe during cutting to extend die life and produce clean thread form. Inspect the cut thread with a NPT gauge or fitting test before assembly to confirm full thread engagement. Follow applicable codes such as the IPC or IFGC for pipe thread requirements in plumbing and gas piping applications.
