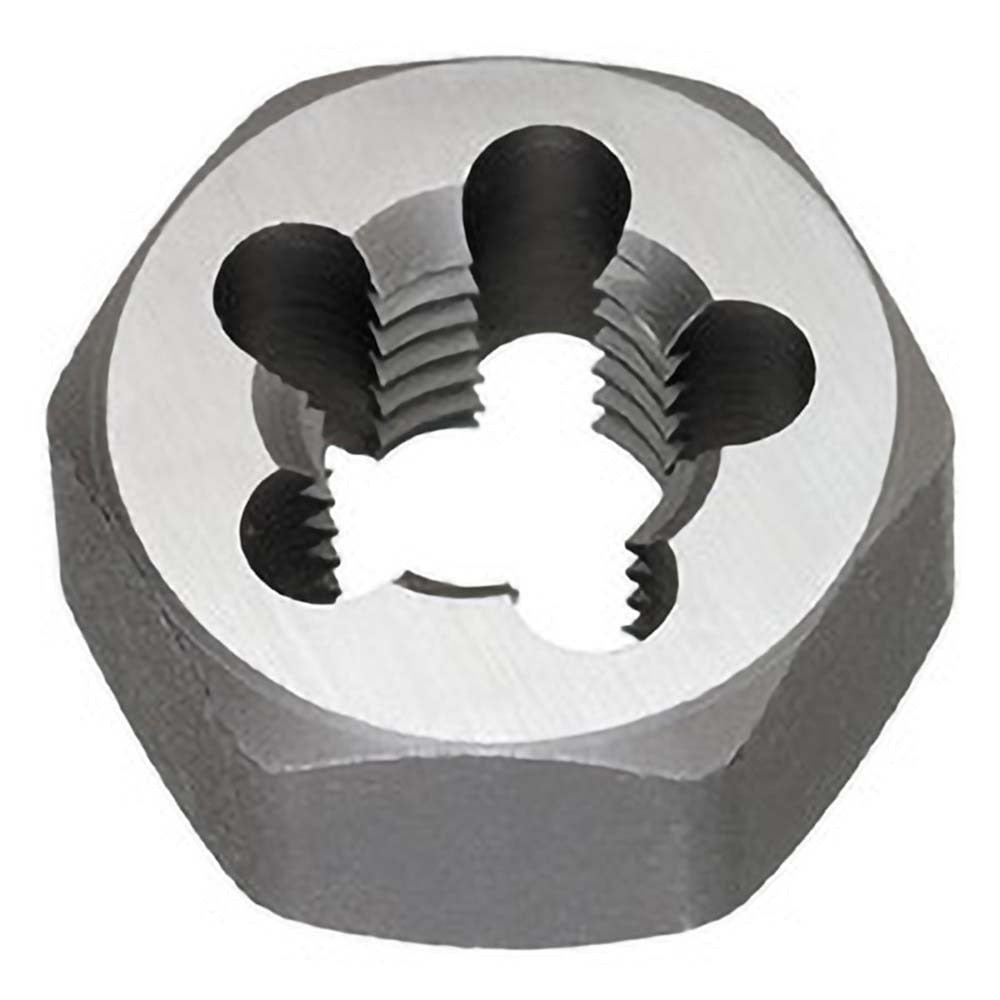

Titan Usa TE80701 Hex Pipe Conduit Die 1/8-27 Npt

Product Description

The TITAN USA TE80701 is a hex pipe conduit die designed to cut 1/8-27 NPT right-hand threads on pipe and conduit. Machined from carbon steel, this die delivers consistent thread form and durability through repeated use in field and shop environments. The hex body measures 1-1/16 inches across flats, and the die thickness is 3/8 inches, making it compatible with standard hex die stocks. Plumbers, pipefitters, electricians, and mechanical contractors use this type of die when threading small-diameter pipe or conduit on the job or at a bench. The NPT taper thread profile ensures pressure-rated, leak-resistant joints when properly assembled.

This die is suited for threading 1/8-inch nominal pipe or conduit in residential and light commercial applications. Typical uses include threading short nipples, conduit stubs, and fittings for low-pressure gas, water, and electrical conduit runs. It is intended for use in a compatible hex pipe die stock that accepts a 1-1/16-inch hex body. Sold individually, it can replace a worn die in an existing set or serve as a dedicated die for a single pipe size.

Key Features

• 1/8-27 NPT thread form for tapered, pressure-rated pipe connections
• Right-hand thread direction for standard pipe and conduit threading
• Carbon steel construction for durability and repeated use
• 1-1/16-inch hex body fits standard hex pipe die stocks
• 3/8-inch thickness — compact profile for tight setups
• Sold as a single die unit for targeted replacement or dedicated use

Compatibility

Designed for use in hex pipe die stocks that accept a 1-1/16-inch hex die body. Cuts standard 1/8-27 NPT right-hand threads on pipe and conduit of the corresponding nominal size.

Installation Notes

This die is installed and used by plumbers, pipefitters, and electricians working with threaded pipe or conduit systems. Secure the die properly in a compatible die stock before threading. Apply cutting oil liberally during the threading operation to extend die life and produce clean thread form. Inspect the finished threads for proper form and engagement before assembling fittings.
