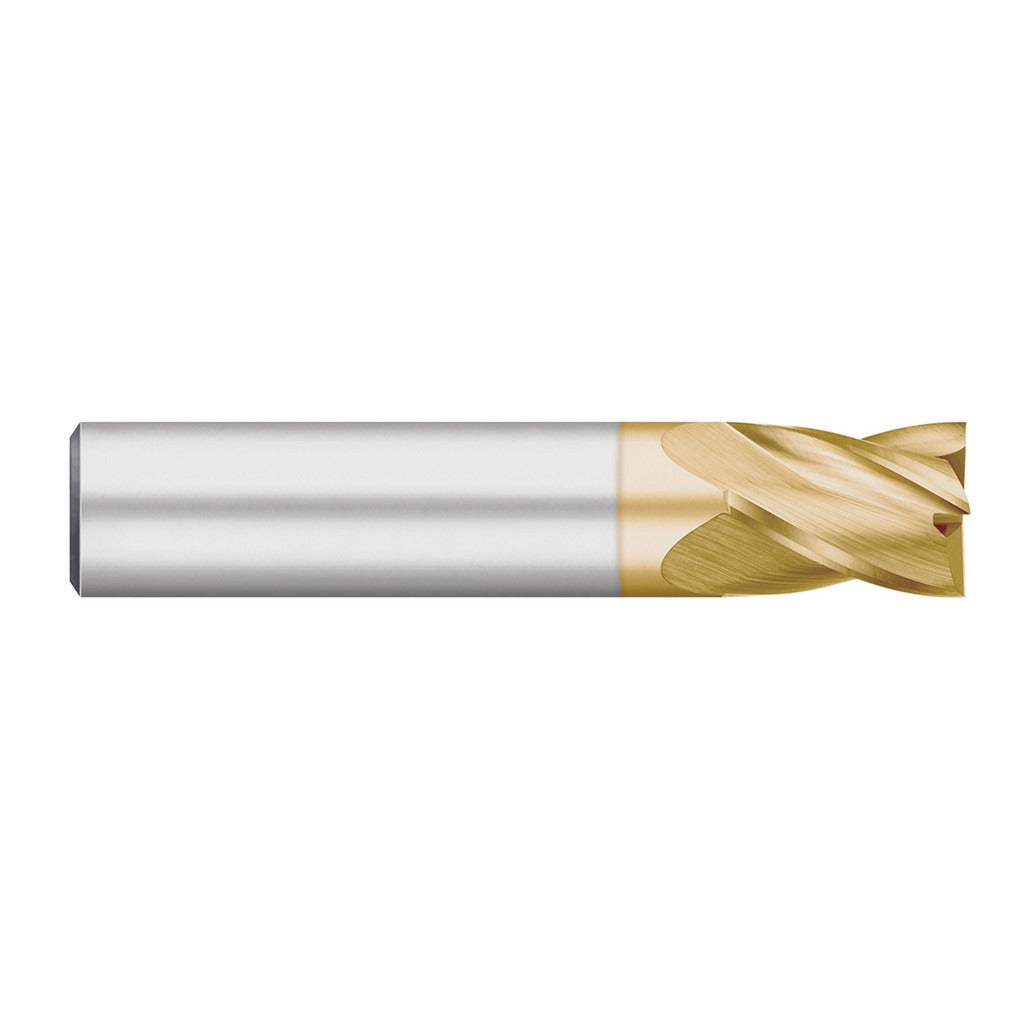

Titan Usa TC95671 Square End Mill 3/4 in 4 Flute Carbide

Product Description

The TITAN USA TC95671 is a solid carbide square end mill designed for general-purpose milling operations in metal and non-ferrous materials. It features a 3/4 inch diameter cutting profile with a 1-1/2 inch length of cut and a 4-inch overall length. The four-flute geometry paired with a 30-degree helix angle promotes efficient chip evacuation and smooth surface finishes. A Titanium Nitride (TiN) coating extends tool life by reducing friction and improving wear resistance at the cutting edge. This end mill is a single-end, centercutting tool, meaning it can be used for plunge cutting as well as peripheral and slot milling. It is intended for installation and use by machinists and tooling professionals operating CNC or manual milling equipment.

This end mill suits a wide range of general-purpose milling applications including slotting, profiling, and contouring on CNC machining centers and manual knee mills. The straight cylindrical shank with a 3/4 inch diameter fits standard ER collet chucks and end mill holders common in both production and job-shop environments. The left-hand flute direction combined with right-hand cutting geometry supports upcut chip flow, keeping the work area clear during operation. It is suited for light-to-moderate material removal in steel, aluminum, and similar workpiece materials.

Key Features

• Solid carbide construction for rigidity and heat resistance in demanding cuts
• TiN coating reduces tool wear and lowers friction at the cutting edge
• 30-degree helix angle promotes smooth chip evacuation and reduced chatter
• Centercutting design allows direct plunge entry into the workpiece
• Right-hand cutting with left-hand flute direction for upcut chip flow
• Straight cylindrical shank fits standard collet chucks and end mill holders

Compatibility

Designed as a general-purpose replacement or production end mill for CNC machining centers and manual milling machines using standard 3/4 inch straight-shank toolholders or ER collet systems.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or end mill holder and torque the retention hardware according to the toolholder manufacturer specifications. Inspect the cutting edges for chips or damage before each use, and verify runout with a dial indicator when tight tolerances are required.
