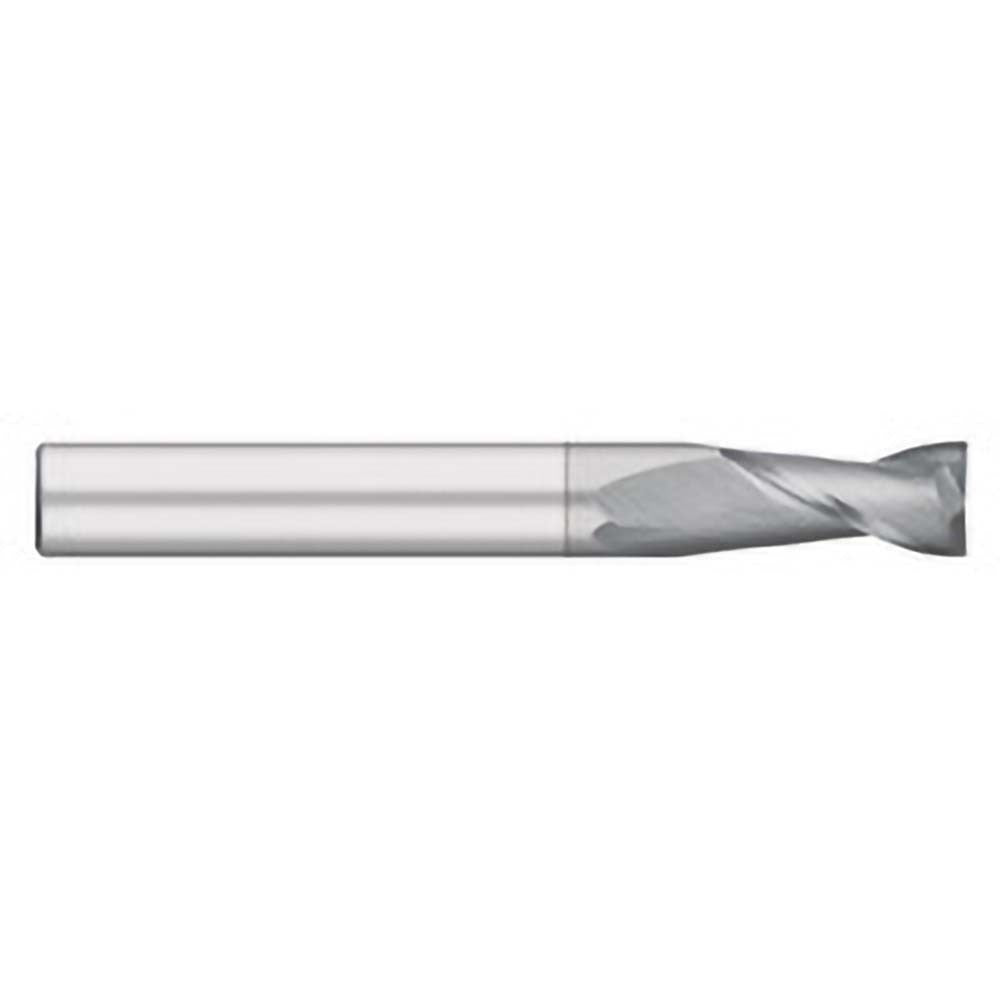

Titan Usa TC95033 Square End Mill 0.5in 2 Flute Carbide

Product Description

The TITAN USA TC95033 is a solid carbide square end mill designed for high-performance milling operations in metalworking and machining applications. With a 0.5-inch cutting diameter and a 2-inch length of cut, this two-flute end mill delivers clean, precise material removal in a single-end configuration. The 30-degree helix angle combined with a TiCN coating improves chip evacuation and extends tool life in demanding cutting conditions. The micrograin carbide construction provides the rigidity and edge retention required for ferrous and non-ferrous materials. This tool is installed and used by machinists and CNC operators in production and job-shop environments.

This end mill is suited for profiling, slotting, and peripheral milling operations on a wide range of materials. The right-hand cut, right-hand flute, upcut geometry makes it a standard choice for conventional CNC milling setups. The 0.5-inch shank diameter fits standard ER and end mill holders. At 4 inches overall length, it provides reach for typical workpiece depths without sacrificing rigidity. It is centercutting, allowing plunge entry directly into the workpiece when the application requires it.

Key Features

• Solid micrograin carbide construction for superior hardness and edge retention
• TiCN coating reduces friction and extends tool life in ferrous and non-ferrous cutting
• 30-degree helix angle promotes efficient chip evacuation
• Centercutting capable for direct plunge entry
• Upcut, right-hand flute geometry for standard CNC milling setups
• Single-end design with 0.5-inch shank for compatibility with standard tool holders

Compatibility

Designed as an OEM-style solid carbide square end mill for use with standard 0.5-inch end mill holders and ER collet systems on CNC machining centers and manual knee mills.

Installation Notes

This tool is installed by machinists using standard end mill holders or ER collet chucks. Ensure the machine spindle is fully powered down and the tool holder is clean and free of debris before seating the shank. Apply proper torque to the tool holder retention hardware per the holder manufacturer specifications. Inspect the cutting edges for chips or wear before each use and replace the tool if edge integrity is compromised.
