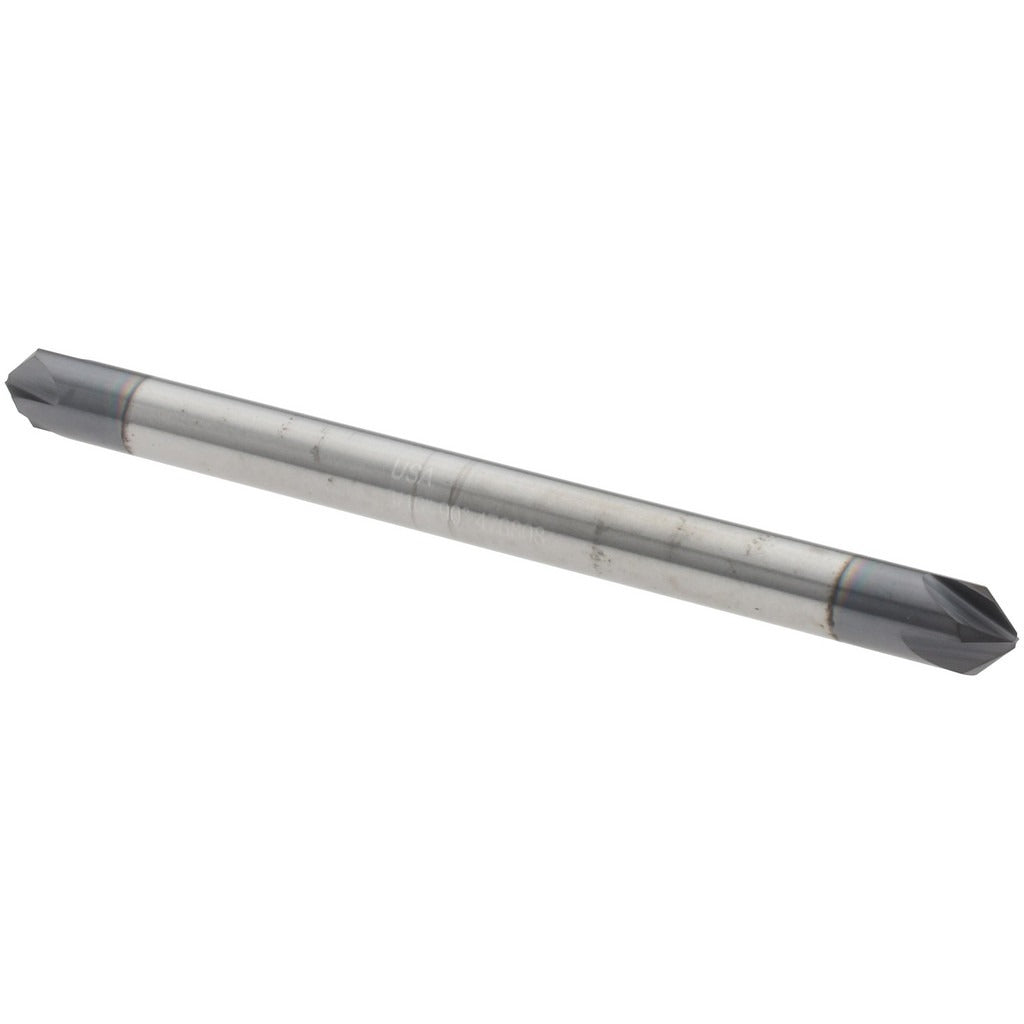

Titan Usa TC88149 Chamfer Mill 3/16 in Solid Carbide

Product Description

The TITAN USA TC88149 is a solid carbide chamfer mill designed for deburring, chamfering, and edge-breaking operations on metal workpieces. With a 3/16 inch cutter head diameter, 4 flutes, and a double-end configuration, this tool delivers clean, consistent angled cuts at 45 and 90 degree included angles. The AlTiN coating improves heat resistance and extends tool life in ferrous and hardened materials. At 2.5 inches overall length with a 3/16 inch shank diameter, it fits standard collet toolholders used in CNC machining centers and manual mills. Right-hand cutting direction. Intended for use by machinists and tooling professionals in production and job-shop environments.

This chamfer mill is suited for light-duty chamfering and deburring on steel, stainless steel, cast iron, and similar materials. The solid carbide construction and AlTiN coating make it appropriate for higher-speed applications where tool rigidity and thermal resistance are required. The double-end geometry allows the operator to index to the second end once the first is worn, extending usable tool life. Typical applications include CNC vertical machining centers, knee mills, and multi-axis machining platforms where precise edge preparation is required before assembly or inspection.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous materials
• AlTiN coating for improved heat resistance and extended tool life
• Double-end design allows use of both cutting ends before replacement
• 45 and 90 degree included angles for versatile chamfer geometry
• Right-hand cutting direction, compatible with standard CNC and manual spindles
• 0.079 inch length of cut with 3/16 inch cutter head diameter

Compatibility

Designed as a direct-fit replacement or new-install chamfer mill for standard 3/16 inch collet toolholders used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a locked-out, de-energized state before installing or removing the tool. Seat the shank fully in the collet or chuck and torque the retention mechanism per the toolholder specification. Verify runout with an indicator before beginning production cuts.
