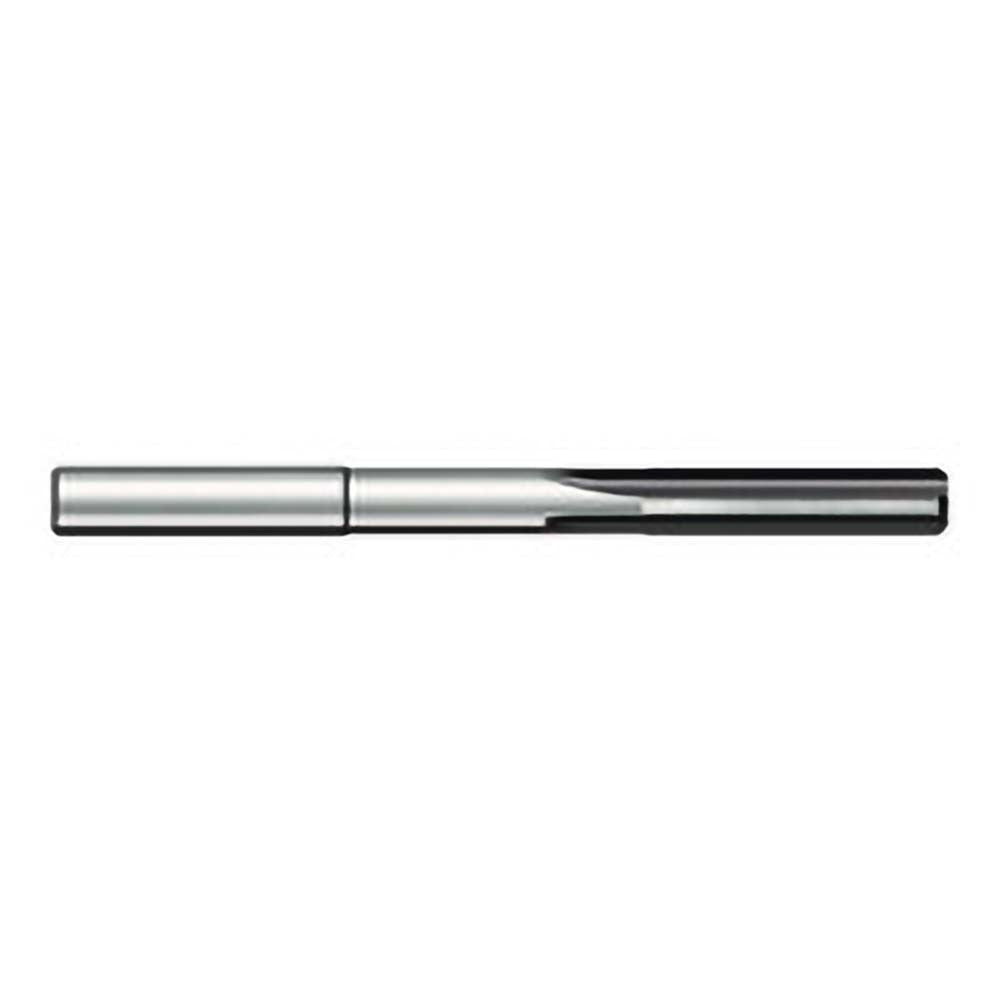

Titan Usa TC87286 Chucking Reamer 0.229 in Solid Carbide

Product Description

The TITAN USA TC87286 is a solid carbide chucking reamer designed for precision hole finishing in metalworking and machining applications. With a reamer diameter of 0.229 inches, an overall length of 3 inches, and a 1-inch flute length, this tool is built for tight-tolerance sizing of drilled or bored holes. The straight-flute geometry and bright uncoated finish make it well suited for use in materials where chip evacuation is straightforward and surface finish is the priority. Machinists and tool-and-die professionals rely on this style of reamer to bring holes to final diameter with consistent repeatability on manual machines and CNC equipment alike.

This chucking reamer is intended for use in machine tool setups where the straight cylindrical shank is held in a drill chuck, collet, or floating reamer holder. The 0.229-inch diameter targets applications requiring precise hole sizing in production and job-shop environments. With 4 flutes and a solid carbide construction, it performs in harder workpiece materials and provides longer tool life compared to high-speed steel alternatives. Typical applications include finishing through-holes and blind holes in ferrous and non-ferrous metals during general machining, fixture building, and component manufacturing.

Key Features

• Solid carbide construction for extended tool life in hard and abrasive materials
• 0.229-inch reamer diameter for tight-tolerance hole finishing
• 4 straight flutes promote smooth cutting action and consistent finish
• Straight cylindrical shank fits standard drill chucks, collets, and floating holders
• Bright uncoated finish suitable for a wide range of metalworking applications
• Compact 3-inch overall length with 1-inch flute length for controlled engagement

Compatibility

Designed as an OEM-style chucking reamer for use in drill presses, lathes, machining centers, and other machine tools equipped with a chuck or collet capable of holding a straight cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist familiar with reamer setup and runout requirements. Secure the straight shank firmly in a drill chuck, precision collet, or floating reamer holder and verify minimal runout before use. Apply appropriate cutting fluid for the workpiece material to reduce heat buildup and extend tool life. Never use a chucking reamer to remove excessive stock — pre-drill or bore the hole to within recommended allowance before reaming.
