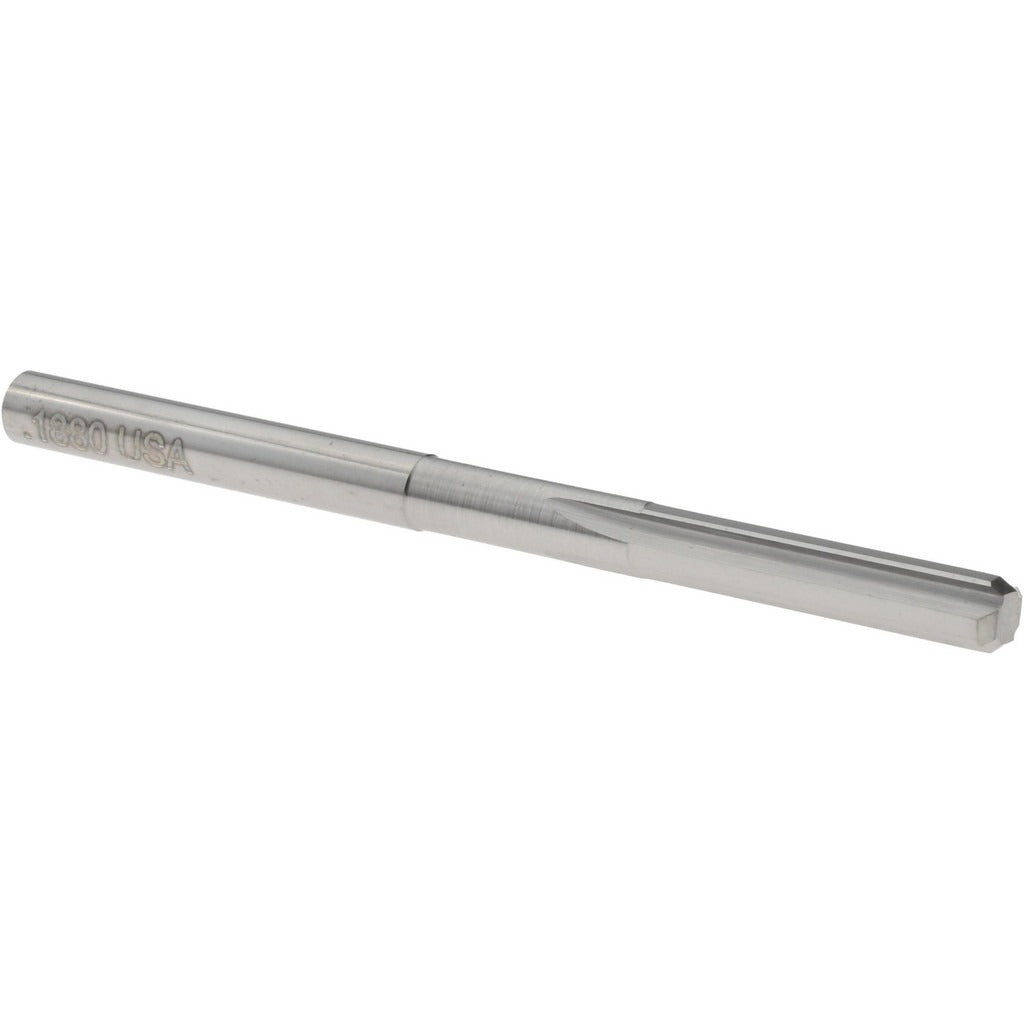

Titan Usa TC87238 Chucking Reamer 0.1880 in Solid Carbide

Product Description

The TITAN USA TC87238 is a solid carbide chucking reamer designed to produce precise, finished holes in metalworking applications. With a reamer diameter of 0.1880 inches and a tolerance of +0.0002 to -0.0000 inches, this tool holds tight dimensional accuracy for close-tolerance work. The 4-flute, straight-flute geometry runs right-hand cutting and mounts on a straight-cylindrical shank for use in drill presses, CNC machining centers, and manual lathes. At 2.75 inches overall length with a 0.875-inch flute length, it fits compact work envelopes. Machinists and tool-and-die professionals reach for this reamer when bore finish and diameter precision are non-negotiable.

This reamer is suited for production and maintenance machining environments where reamed holes in the 0.1500 to 0.1999 inch diameter range are required. The bright, uncoated finish makes it a general-purpose choice across ferrous and non-ferrous workpiece materials. It is well-matched to short-run and repetitive hole-finishing operations in job shops, manufacturing facilities, and maintenance repair settings where solid carbide tooling is preferred over high-speed steel for improved rigidity and wear resistance.

Key Features

• Solid carbide construction for superior rigidity and wear resistance compared to HSS reamers
• 0.1880 inch diameter with +0.0002 to -0.0000 inch tolerance for tight, repeatable bore sizing
• 4-flute straight configuration produces consistent surface finish on through and blind holes
• Right-hand cutting direction compatible with standard spindle rotation
• Straight-cylindrical shank seats securely in collet chucks and drill press chucks
• Bright uncoated finish suitable for a broad range of workpiece materials

Compatibility

Designed as an OEM-style solid carbide chucking reamer for use in drill presses, CNC machining centers, turret lathes, and manual lathes equipped with collet or drill chucks accepting a straight-cylindrical shank.

Installation Notes

Chucking reamers are installed and serviced by machinists and toolroom professionals. Power down and de-energize the machine spindle fully before changing tooling. Secure the straight-cylindrical shank in a collet or chuck to the appropriate runout specification for the machine; excessive runout will widen the reamed diameter and degrade finish. Always use appropriate cutting fluid for the workpiece material — running a carbide reamer dry on ferrous materials can reduce tool life significantly.
