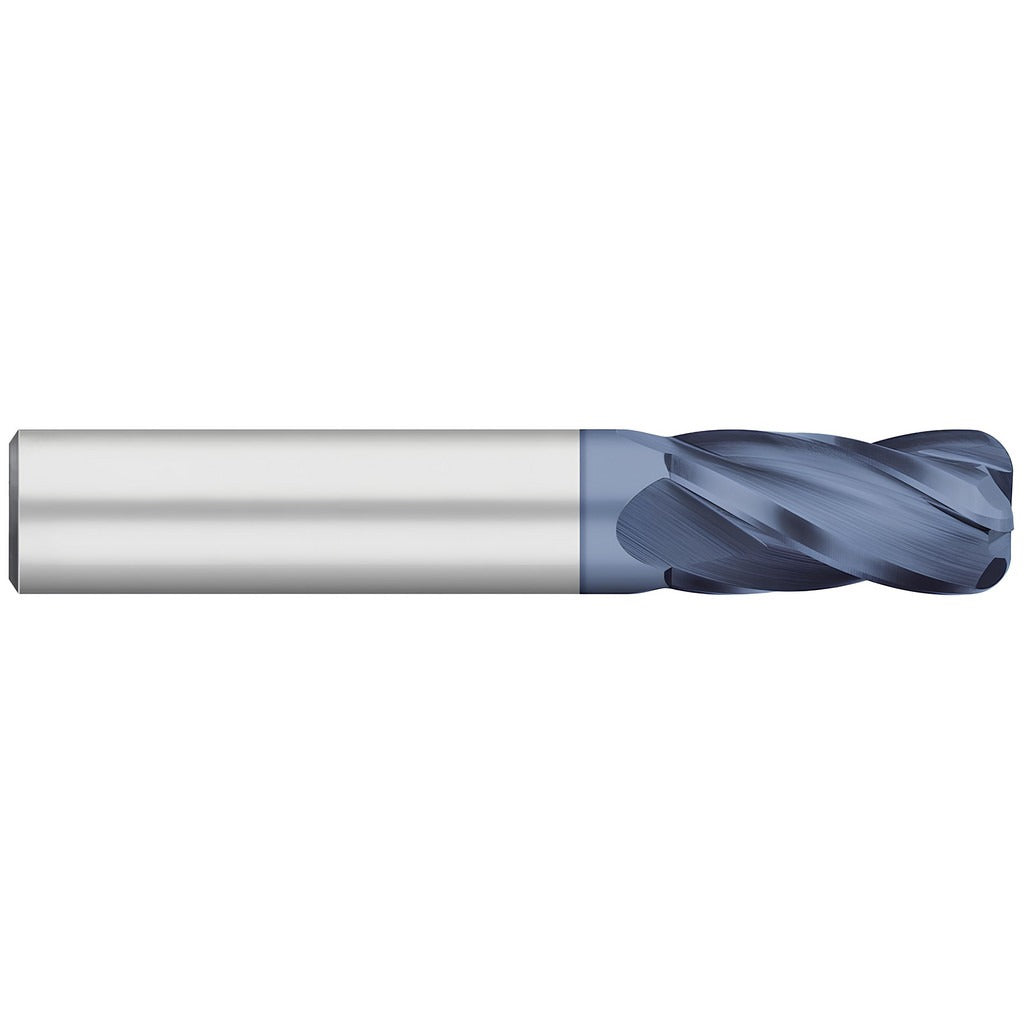

Titan Usa TC74044 Corner Radius End Mill 4 Flute 3/8 in

Product Description

The TITAN USA TC74044 is a solid carbide corner radius end mill designed for precision milling operations in metal fabrication and machining environments. With a 3/8-inch mill diameter, four flutes, and a 0.090-inch corner radius, this tool handles both roughing and finishing passes in a single setup. The straight-cylindrical shank measures 3/8 inch in diameter and fits standard toolholders. Right-hand cutting and right-hand flute direction make this a conventional-rotation tool compatible with most vertical and horizontal milling machines. Machinists and CNC operators working with ferrous and non-ferrous materials will find this an effective single-end option for producing radiused inside corners and contoured profiles.

This end mill suits general-purpose milling applications in job shop, toolroom, and production environments. The 1-inch length of cut and 1-inch reach length accommodate moderate-depth passes without excessive tool deflection. An overall length of 2.5 inches keeps the tool compact for rigid setups. Because this tool is not center-cutting, it is intended for side milling, profiling, slotting, and ramping operations where plunge entry is not required. It is sold individually as a single-end tool.

Key Features

• Solid carbide construction for wear resistance and dimensional stability
• 0.090-inch corner radius with a tight tolerance of -0.0010 to +0.0010 inches
• Four-flute spiral design supports both roughing and finishing material removal
• Right-hand cut, right-hand flute direction for use with standard spindle rotation
• Bright/uncoated finish suitable for use with or without coolant on most workpiece materials
• Straight-cylindrical shank fits ER collets and standard end mill toolholders

Compatibility

Designed for use with standard straight-bore end mill toolholders and ER-style collet chucks accepting a 3/8-inch shank diameter. Not center-cutting; not suitable for direct plunge operations.

Installation Notes

Installation is performed by a machinist or CNC operator. Secure the shank fully within the toolholder to the recommended grip depth before torquing the collet or set screw. Verify runout with a dial indicator before beginning a cut. Because this tool is not center-cutting, establish entry through a pre-drilled hole or ramped toolpath rather than direct plunge.
