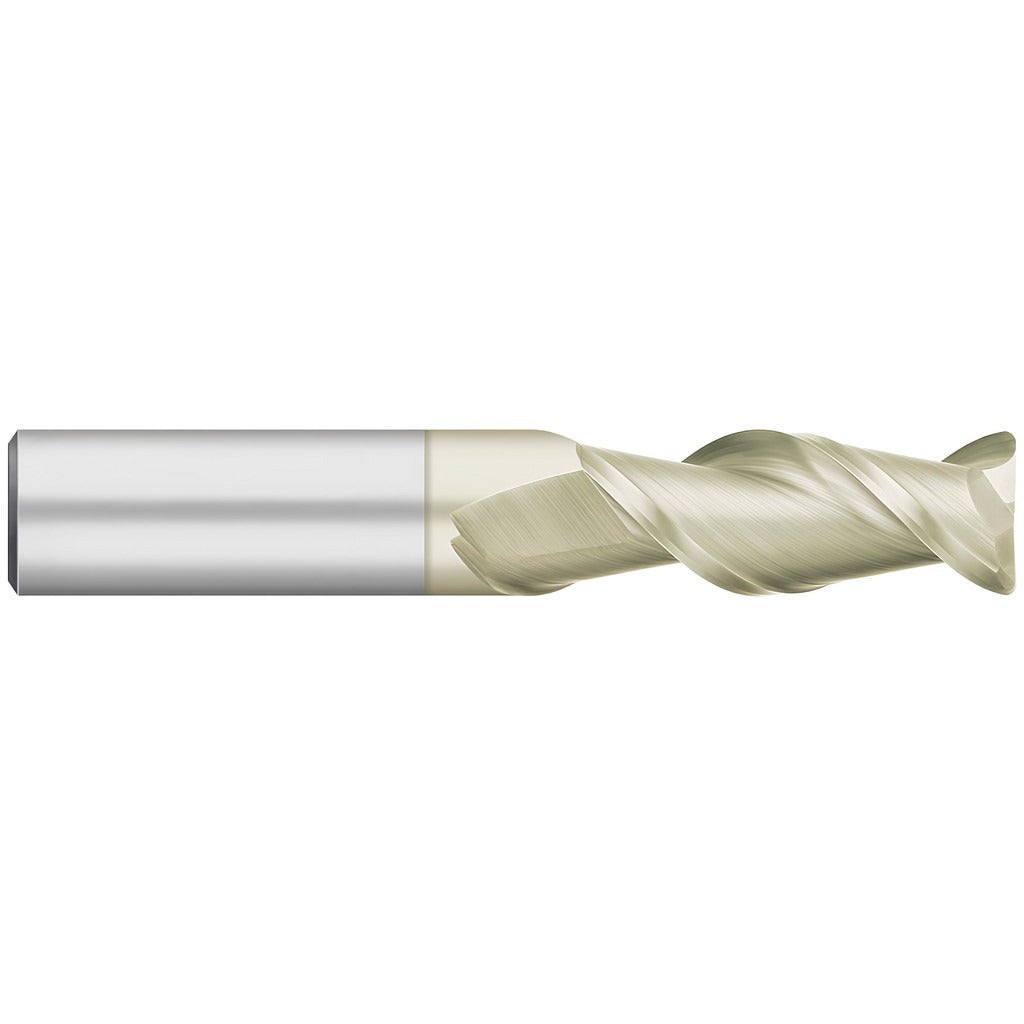

Titan Usa TC65332 Corner Radius End Mill 1/2 in 2 Flute

Product Description

The TITAN USA TC65332 is a solid carbide corner radius end mill designed for precision milling in non-ferrous materials including aluminum, brass, and bronze. It carries a 1/2-inch mill diameter with a 0.0400-inch corner radius and a ZrN (zirconium nitride) PVD coating that reduces friction and improves tool life in high-speed applications. The 2-flute, right-hand spiral configuration with a 45-degree high helix angle promotes efficient chip evacuation, making it well suited for aggressive material removal in non-ferrous and aluminum milling operations. With a 4-inch overall length and a 2-inch length of cut, this end mill fits standard straight-cylindrical toolholders at 1/2-inch shank diameter. Centercutting geometry allows plunge entry where required.

This end mill is intended for use on CNC machining centers and manual knee mills where non-ferrous metal stock — including aluminum plate, brass bar, and bronze castings — is the primary workpiece material. It is classified as a long-length, coarse-pitch tool configured for roughing passes. The single-end, right-hand cutting direction suits standard spindle rotation without modification. Machinists and tool-and-die professionals running aluminum aerospace components, prototype parts, or production non-ferrous work will find this geometry appropriate for both slotting and profiling operations when used in compatible toolholders.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous milling
• ZrN PVD coating reduces built-up edge and extends tool life on aluminum, brass, and bronze
• 0.0400-inch corner radius reduces stress concentrations at the cutting edge and workpiece corners
• 45-degree high helix angle with 2-flute spiral promotes fast chip evacuation
• Centercutting end geometry allows direct plunge entry without pre-drilling
• Long-length configuration with 2-inch reach for deeper pocket and slot access

Compatibility

Designed for use with standard straight-cylindrical toolholders accepting a 1/2-inch shank diameter. Primary workpiece material class is non-ferrous metal, including aluminum, brass, and bronze.

Installation Notes

Installation is performed by qualified machinists following standard toolholder torque and runout procedures for the holder type in use. Confirm shank seating and runout before commencing cuts. Do not use this end mill on ferrous or hardened steel workpieces, as it is optimized for non-ferrous material application. Verify spindle direction is set to right-hand rotation prior to engaging the cut.
