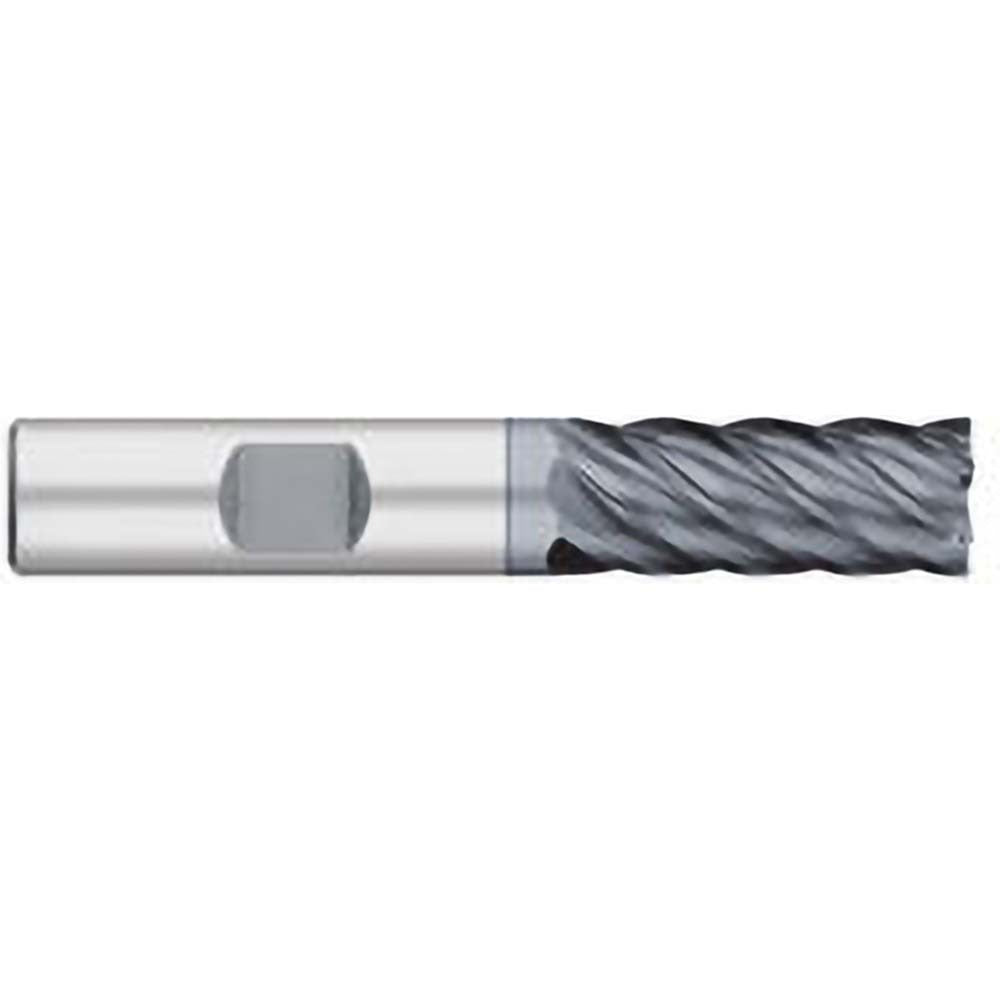

Titan Usa TC64585 Square End Mill 1in 6 Flute Carbide

Product Description

The TITAN USA TC64585 is a solid carbide square end mill designed for high-performance material removal in professional machining environments. With a 1-inch mill diameter, 2-inch length of cut, and 6 flutes, this tool delivers efficient chip evacuation and surface finish quality on demanding workpieces. The AlCrO-MAX coating provides elevated heat and wear resistance, extending tool life in abrasive or high-temperature cutting applications. A 38-degree helix angle combined with a variable index design reduces chatter and vibration during cuts. This end mill is a single-end tool with right-hand cutting and right-hand flute direction, suited for CNC machining centers and manual mills operated by skilled machinists and toolroom professionals.

This end mill is intended for use in professional metalworking and precision machining applications. The micrograin solid carbide substrate supports aggressive feed rates and extended tool life in ferrous and non-ferrous materials. The AlCrO-MAX coating makes it well suited for dry or near-dry machining environments where heat buildup is a concern. With a 1-inch shank diameter and 4-inch overall length, it fits standard end mill holders and collet chucks used in production and job shop settings. The centercutting geometry allows for plunge entry, adding flexibility to the range of operations this tool can perform.

Key Features

• 1-inch mill diameter with 2-inch length of cut for deep-slot and profile milling
• 6-flute design supports high feed rates and improved surface finish
• AlCrO-MAX coating for superior wear and heat resistance in demanding cuts
• 38-degree helix angle with variable index reduces vibration and chatter
• Micrograin solid carbide substrate for hardness and edge retention
• Centercutting geometry enables plunge milling operations

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill compatible with standard 1-inch end mill holders and collet chuck systems used on CNC and conventional milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the holder. Use a calibrated torque wrench and the appropriate collet or holder to secure the shank to manufacturer-recommended clamping specifications. Inspect the tool for edge chipping or coating wear before each use and replace when wear limits are reached.
