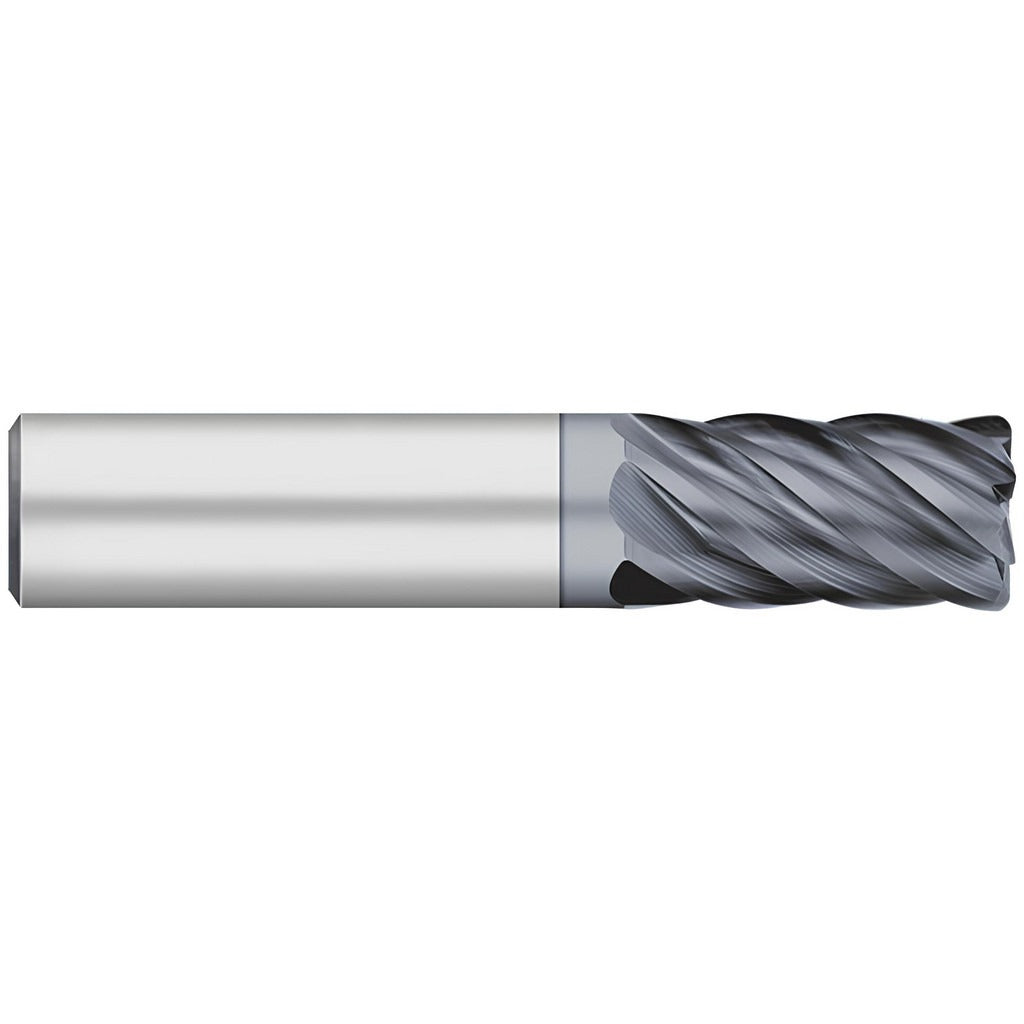

Titan Usa TC64432 Corner Radius End Mill 1/2 in 6 Flute

Product Description

The TITAN USA TC64432 is a solid carbide corner radius end mill engineered for high-performance finishing operations in demanding materials. The tool features a 1/2 inch diameter, 6 helical flutes with a close pitch, and a 0.03 inch corner radius that reduces chipping and improves surface finish at workpiece edges. A 5/8 inch length of cut and 2.5 inch overall length make this a stub-length tool suited for rigid, low-vibration setups. The AlCromax (ALCRO-MAX) PVD coating provides oxidation resistance and hardness retention at elevated cutting temperatures, making it well-matched to difficult-to-machine materials.

This end mill is designed for finishing cuts in superalloys, titanium alloys, Inconel, stainless steel, alloy steel, cast iron, and other ferrous metals. The right-hand cut and right-hand flute direction are standard for conventional CNC machining center setups. The straight-cylindrical shank with h6 tolerance mounts directly into a standard toolholder. Its stub-length profile and high helix angle promote chip evacuation and stability in materials that generate significant heat and tool wear.

Key Features

• 0.03 inch corner radius reduces edge chipping and improves part finish at corners
• 6-flute close-pitch helical design optimized for finishing passes
• AlCromax PVD coating resists oxidation and heat in superalloys and stainless steel
• Solid carbide construction provides rigidity and wear resistance
• Stub-length geometry (5/8 inch LOC, 2.5 inch OAL) maximizes setup rigidity
• Right-hand cut, centercutting configuration compatible with standard toolholders

Compatibility

Designed for use with standard CNC toolholders accepting a 1/2 inch straight-cylindrical shank. Primary workpiece materials include superalloys, titanium alloy, Inconel, stainless steel, alloy steel, and cast iron.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked before inserting or removing tooling. Seat the shank fully in the toolholder and torque the retention mechanism to the toolholder manufacturer specification. Verify runout with a dial indicator before cutting, particularly when working with tight-tolerance superalloy applications.
