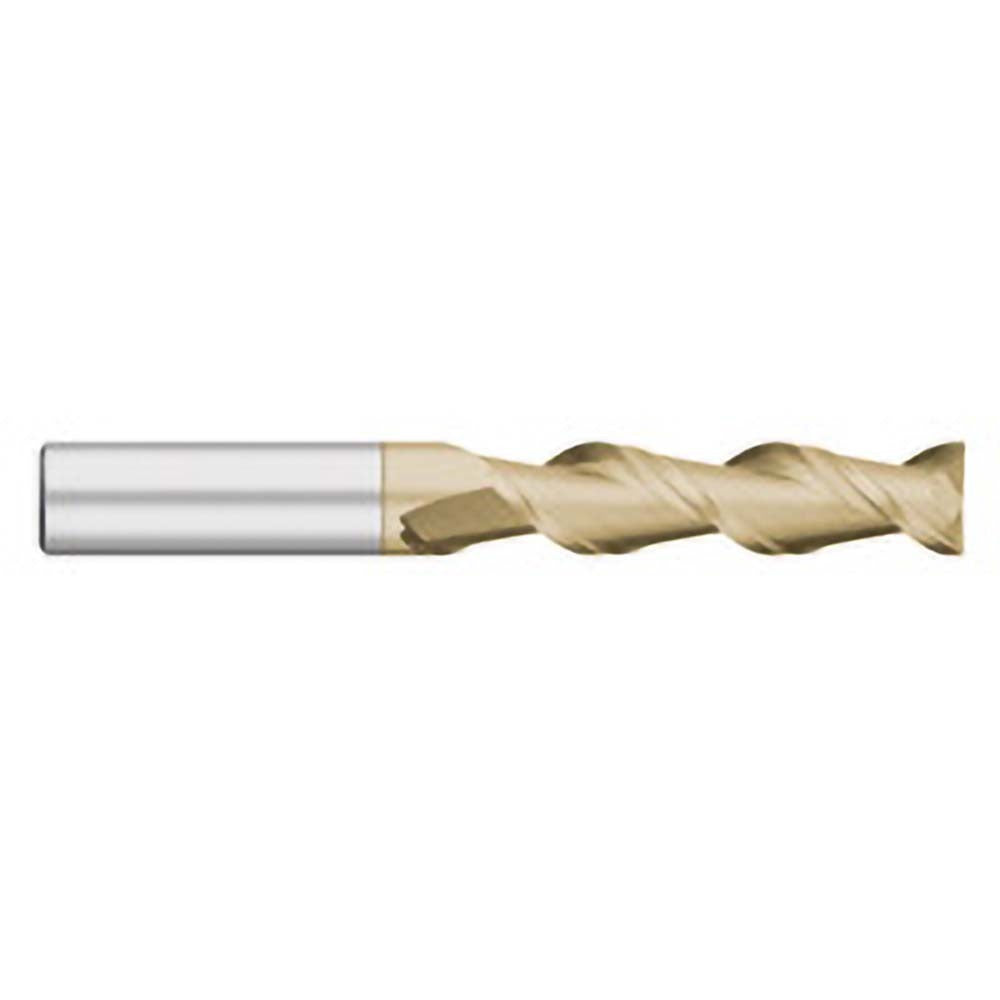

Titan Usa TC63324 Square End Mill 0.375in 2 Flute Carbide

Product Description

The TITAN USA TC63324 is a solid carbide square end mill designed for high-performance milling operations in metal, composite, and hard material applications. Built from micrograin carbide and coated with ZrN (zirconium nitride), this end mill delivers improved wear resistance and longer tool life compared to uncoated carbide. It features a 2-flute configuration with a 45-degree helix angle and an upcut flute geometry, which promotes chip evacuation and reduces heat buildup at the cutting zone. The centercutting design allows for plunge entry as well as standard peripheral cuts. This tool is installed and used by machinists and CNC operators in job shop, production, and toolroom environments.

The TC63324 is suited for slotting, profiling, and pocketing operations in ferrous and non-ferrous materials. Its right-hand cut and right-hand flute direction are compatible with standard CNC machining centers and manual milling machines with conventional spindle rotation. The 1.5-inch length of cut and 4-inch overall length make it appropriate for moderate-depth cuts in workpieces requiring reach beyond a standard short-series end mill. It is a single-end tool sold individually.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• ZrN coating improves surface hardness and reduces friction at the cutting edge
• 45-degree helix angle promotes efficient chip evacuation
• Centercutting geometry allows direct plunge entry into workpiece material
• Upcut flute direction lifts chips away from the cut zone
• Right-hand cut and right-hand flute for use with standard spindle rotation

Compatibility

Designed as a standard 3/8-inch shank square end mill compatible with ER collets, milling chucks, and other toolholding systems accepting a 0.375-inch shank diameter on CNC machining centers and manual knee mills.

Installation Notes

Installation is performed by machinists using an appropriate collet or end mill holder rated for the 0.375-inch shank diameter. Ensure the machine spindle is fully stopped and locked before inserting or removing the tool. Follow the toolholder manufacturer torque and runout specifications when securing the end mill. Verify cutting parameters including feed rate, spindle speed, and depth of cut against the material being machined before initiating a cut.
