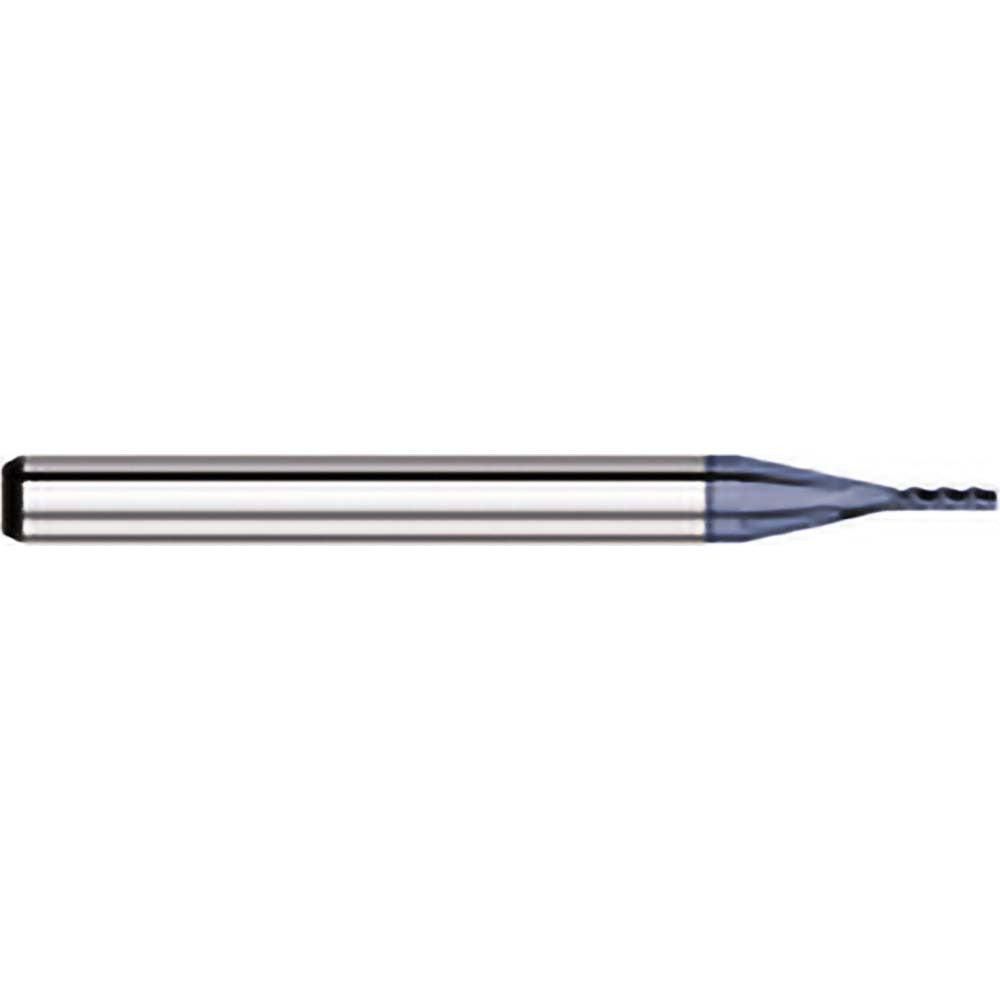

Titan Usa TC58243 Square End Mill 0.0430 in 4 Flute Carbide

Product Description

The TITAN USA TC58243 is a 4-flute square end mill ground from micrograin solid carbide and coated with AlTiN (aluminum titanium nitride) for extended tool life in abrasive and high-temperature cutting applications. The cutter measures 0.0430 inches in diameter with a 0.129-inch length of cut and runs on a 0.125-inch (1/8 inch) shank. Overall length is 1.5 inches. The 30-degree helix angle and upcut right-hand flute geometry promote chip evacuation and reduce heat buildup at the cutting zone. This is a centercutting end mill, making it capable of plunge entry as well as peripheral and slot milling.

This end mill is suited for precision machining operations in tool rooms, production shops, and job shops where small-diameter work is required. Typical applications include slotting, profiling, and pocketing in ferrous and non-ferrous metals, hardened steels, and other materials where an AlTiN coating provides a thermal barrier advantage. The small 0.0430-inch diameter makes it a go-to choice for fine-detail work, mold and die operations, and micro-machining setups on CNC machining centers and manual mills.

Key Features

• 0.0430-inch cutting diameter with 0.129-inch length of cut for fine-detail and micro-machining work
• Micrograin solid carbide substrate for rigidity and wear resistance in demanding materials
• AlTiN coating provides oxidation resistance and thermal hardness at elevated cutting temperatures
• 4-flute, upcut right-hand geometry at 30-degree helix for efficient chip evacuation
• Centercutting design allows direct plunge entry without a pre-drilled hole
• 1/8-inch shank diameter fits standard ER collets and small-bore tool holders

Compatibility

Designed for use in CNC machining centers, knee mills, and high-speed spindles accepting a 0.125-inch (1/8 inch) round shank via ER collet, end mill holder, or equivalent small-bore tooling system.

Installation Notes

Installation is performed by a machinist or tooling technician. Secure the shank fully within the collet or tool holder to the recommended grip length before tightening to prevent runout and tool pullout during cutting. At this diameter, even minor runout will shorten tool life significantly, so use a high-precision collet and verify TIR with a dial indicator before production cuts. Power down and lock out the spindle before changing tooling in accordance with shop safety procedures.
