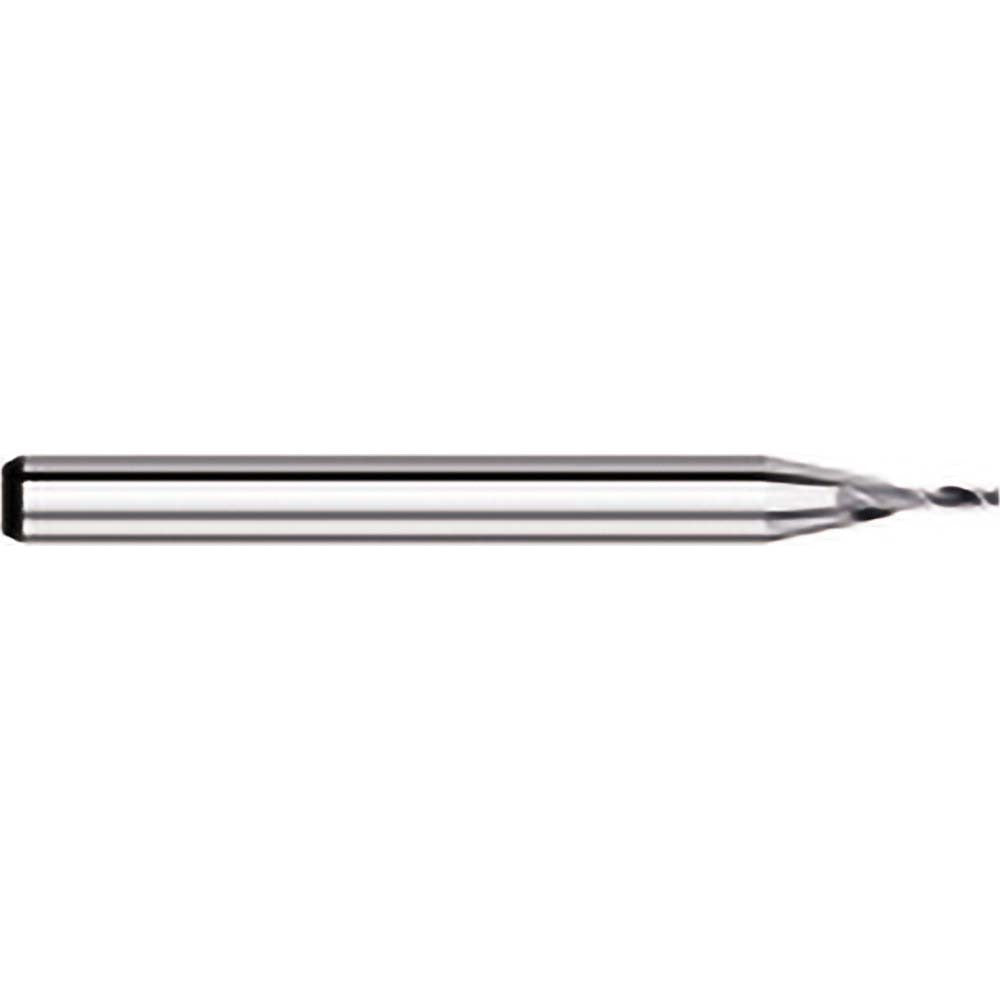

Titan Usa TC56115 Square End Mill 0.115in 2 Flute Solid Carbide

Product Description

The TITAN USA TC56115 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.115-inch cutting diameter and a 0.125-inch shank diameter, this end mill fits standard 1/8-inch collets and tool holders. The 2-flute geometry and 30-degree helix angle promote efficient chip evacuation while maintaining a clean, square shoulder cut. The bright, uncoated micrograin carbide construction delivers hardness and wear resistance suited to ferrous and non-ferrous materials. Overall length is 1.5 inches, with a 0.345-inch length of cut. Installed by machinists and tool-and-die professionals in CNC and manual milling operations.

This end mill is suited for slotting, profiling, and peripheral milling in light- to medium-duty cutting applications. The right-hand cut, right-hand flute direction, and upcut flute design make it appropriate for conventional milling passes in aluminum, brass, mild steel, and similar machinable materials. The centercutting capability allows plunge entry directly into a workpiece without a pre-drilled start hole. The compact diameter makes it a practical choice for fine-detail work, narrow slots, and tight-geometry machining on CNC machining centers and manual knee mills.

Key Features

• 0.115-inch cutting diameter with 0.345-inch length of cut for narrow slot and detail work
• Solid micrograin carbide construction for hardness and edge retention
• 2-flute upcut geometry promotes chip clearance in slotting and plunge operations
• 30-degree helix angle balances cutting force and surface finish
• Centercutting design allows direct plunge entry without a pilot hole
• Bright, uncoated finish suitable for non-ferrous and ferrous machinable materials

Compatibility

Designed to fit standard 1/8-inch collets and tool holders used in CNC machining centers and manual milling machines requiring a square end mill with a 0.125-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling change procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Confirm collet and holder are clean and free of debris before seating the shank. Verify runout with a dial indicator after installation to avoid premature tool wear or dimensional error.
