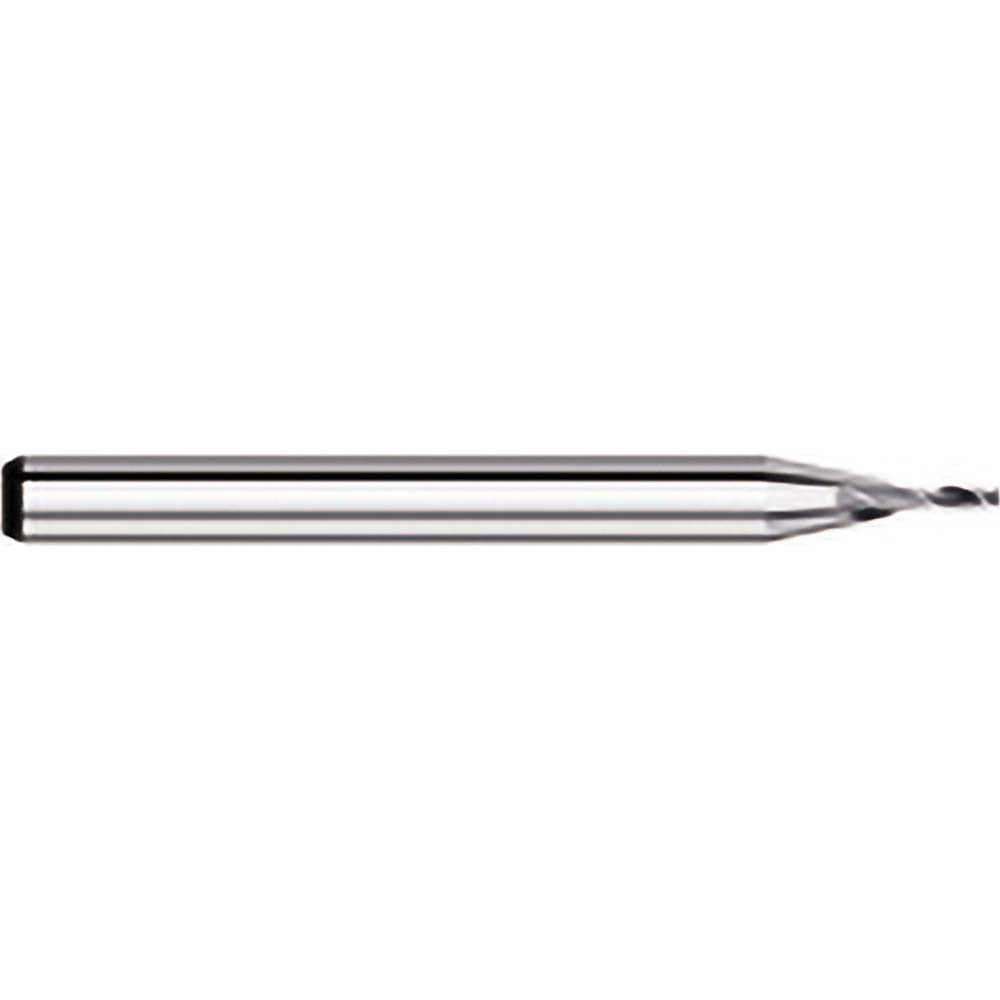

Titan Usa TC56030 Square End Mill 0.030 in 2 Flute Carbide

Product Description

The TITAN USA TC56030 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. With a 0.0300 inch cutting diameter and a 0.09 inch length of cut, this tool is built for small-feature work requiring tight tolerances. The micrograin carbide construction delivers hardness and wear resistance suited to high-speed cutting. A 30-degree helix angle promotes efficient chip evacuation, and the bright uncoated finish makes it well-suited for non-ferrous metals and plastics. Machinists and CNC operators in job shops, tool rooms, and production environments are the primary users of this tool.

This end mill fits applications where small-diameter precision cutting is required, including slot milling, profiling, and contouring on CNC machining centers and manual mills. The 0.125 inch shank diameter is compatible with standard 1/8 inch collets. The upcut, right-hand flute geometry pulls chips upward and away from the workpiece, reducing recutting and heat buildup. It is a single-end tool with no extended reach, keeping deflection to a minimum at this diameter.

Key Features

• 0.0300 inch cutting diameter for small-feature and micro-milling work
• Micrograin solid carbide construction for hardness and long tool life
• 30-degree helix angle for efficient chip evacuation
• Upcut, right-hand flute direction reduces chip recutting
• Centercutting design allows plunge entry
• Bright uncoated finish suitable for non-ferrous metals and plastics

Compatibility

Designed for use with CNC machining centers and manual mills equipped with standard 1/8 inch collet toolholders. Verify spindle speed and feed rate recommendations for 0.0300 inch diameter solid carbide end mills before use.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the collet. Use a calibrated torque wrench when tightening the collet nut to avoid tool pullout or collet damage. At this diameter, minimize runout at the collet to reduce the risk of tool breakage during operation.
