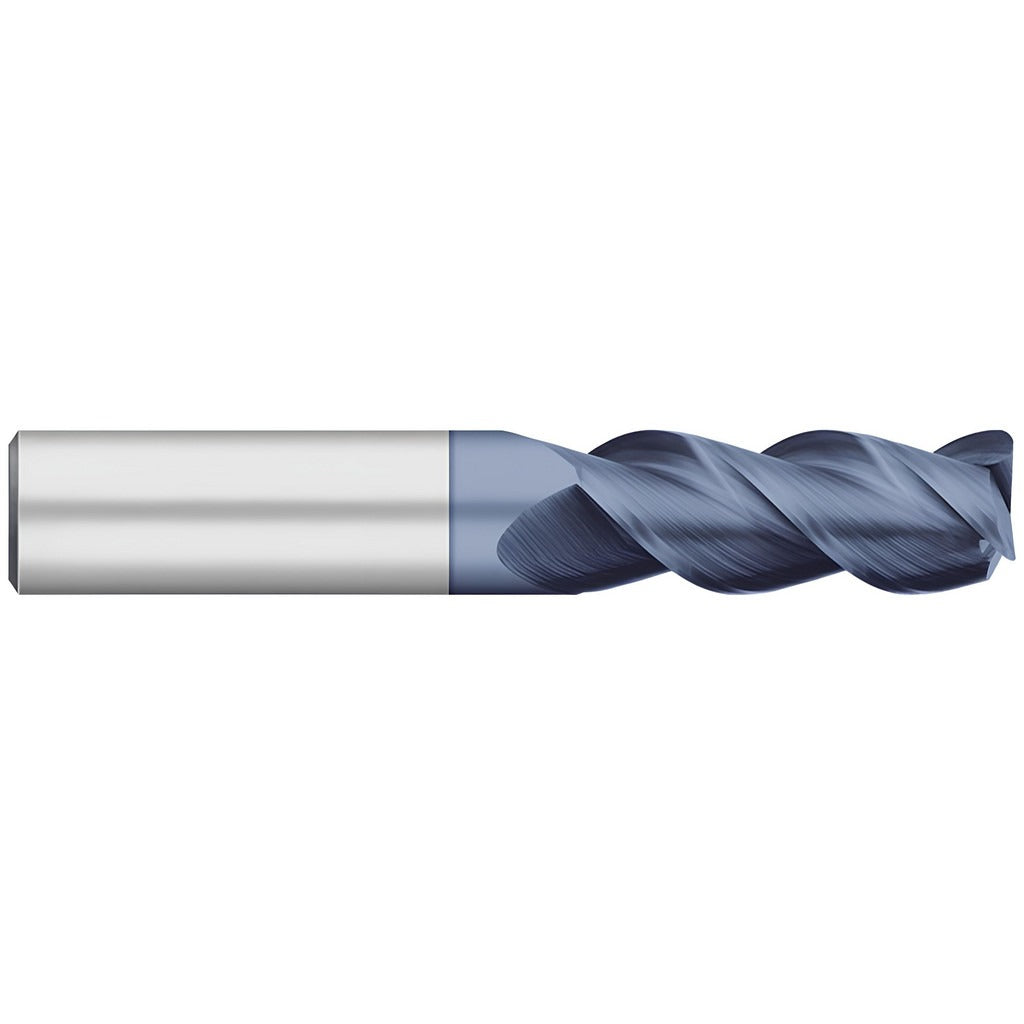

Titan Usa TC49732 Corner Radius End Mill 1/2 in 3 Flute

Product Description

The TITAN USA TC49732 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built with a 1/2 inch diameter, 3-flute geometry, and a 0.0400 inch corner radius, it operates with right-hand cutting and right-hand flute direction. The AlTiN (aluminum titanium nitride) PVD coating delivers thermal resistance and surface hardness suited for aggressive cuts in hard and abrasive materials. With a high-helix spiral flute design and coarse pitch, this end mill is configured for roughing operations. It is installed by machinists and CNC operators working in precision manufacturing and production environments.

This end mill is engineered for use in ferrous metals, stainless steel, alloy steel, cast iron, titanium alloys, high-temperature alloys such as Inconel, and other superalloys. It fits standard straight-cylindrical toolholders with a 1/2 inch shank. The 1.2500 inch reach length and 1.2500 inch length of cut make it suitable for moderate-depth slotting, peripheral milling, and profile work on difficult-to-machine materials. It is a single-end tool and does not include a chipbreaker or coolant-through capability.

Key Features

• 1/2 inch diameter solid carbide construction for rigidity and wear resistance
• AlTiN PVD coating provides thermal and oxidation resistance in high-heat cutting conditions
• 0.0400 inch corner radius reduces stress concentration and extends tool life at cutting edges
• High-helix, coarse-pitch spiral flutes promote chip evacuation in roughing cuts
• Right-hand cut and right-hand flute direction for standard CNC and manual milling setups
• Corner radius tolerance of -0.0010 to +0.0010 inch and mill diameter tolerance of -0.0020/0.0000 inch

Compatibility

Compatible with standard straight-cylindrical toolholders accepting a 1/2 inch shank diameter. Intended for use in machining superalloys, titanium alloys, stainless steel, cast iron, alloy steel, Inconel, and other ferrous and high-temperature alloy workpiece materials.

Installation Notes

Installation is performed by machinists or CNC operators. Secure the 1/2 inch straight-cylindrical shank in a compatible toolholder and verify runout before operation. Ensure the spindle and machine are fully stopped before tool changes. Follow the machine tool manufacturer guidelines for feed rate, depth of cut, and RPM appropriate to the workpiece material and tool diameter.
