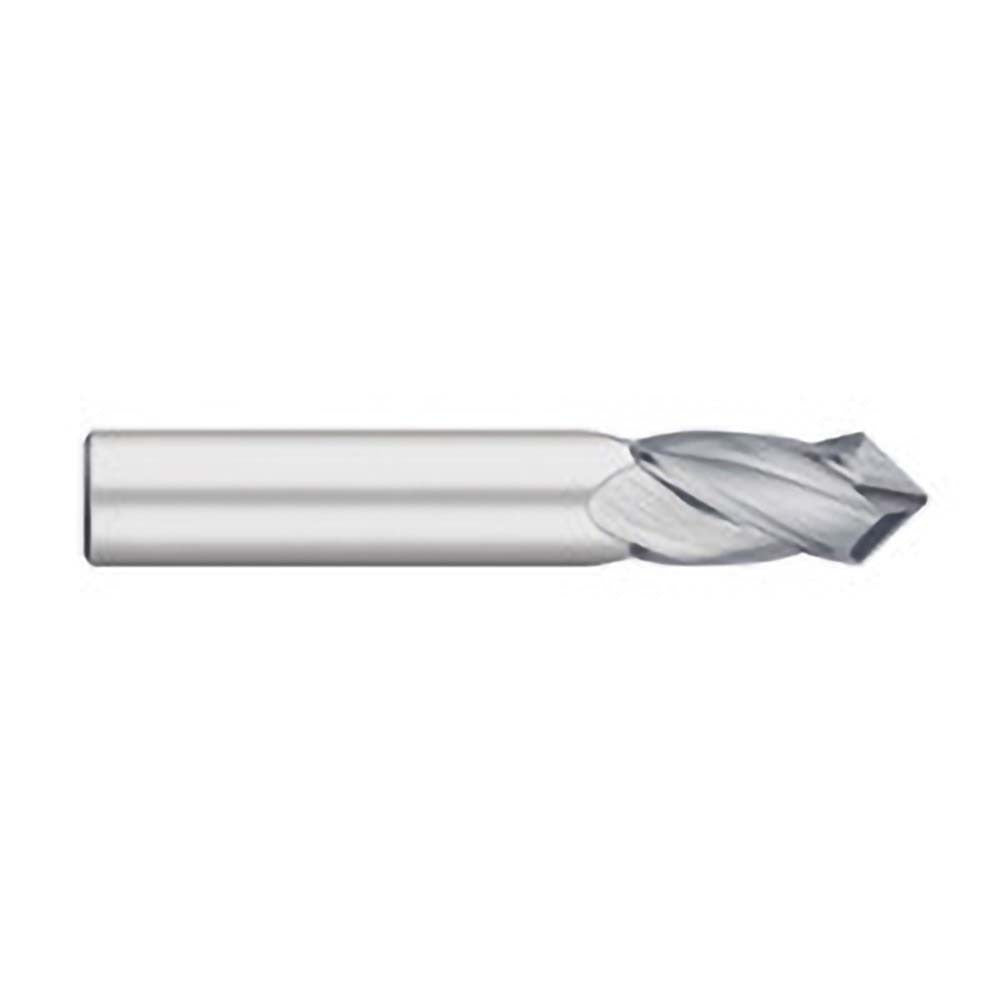

Titan Usa TC34132 Drill Mill 1/2 in 4 Flute Solid Carbide

Product Description

The TITAN USA TC34132 is a solid carbide drill mill designed to perform both drilling and end milling operations in a single tool. With a 1/2 inch cutting diameter, a 90-degree point angle, and four flutes, it handles center drilling, spot drilling, chamfering, and peripheral milling without a tool change. The bright uncoated finish suits general-purpose cutting where coating is not required. A 1/2 inch shank diameter provides direct chuck or collet mounting with consistent runout. Machinists and toolroom operators use this tool to reduce setup time and improve positional accuracy on CNC machining centers and manual mills.

The TC34132 is suited for job shop, toolroom, and production floor applications where multi-function cutting is required. The 1 inch length of cut supports moderate-depth pockets and through-holes in a range of workpiece materials. The 3 inch overall length is compatible with standard tool holders on vertical machining centers and knee mills. This tool is typically specified for ferrous and non-ferrous metals where an uncoated carbide edge provides adequate tool life and clean entry geometry.

Key Features

• Combines drilling and end milling in a single solid carbide tool
• 90-degree point angle for accurate spot drilling and chamfering
• Four flutes for improved chip evacuation and surface finish
• 1/2 inch cutting diameter with matching 1/2 inch shank for direct mounting
• Bright uncoated finish suitable for general-purpose machining applications
• 1 inch length of cut accommodates moderate-depth pocket and hole work

Compatibility

Designed as an OEM-style replacement drill mill compatible with standard 1/2 inch collet chucks and end mill holders on CNC and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the shank fully into a clean, properly sized collet or end mill holder and torque the retention mechanism per the tool holder manufacturer specification. Inspect the cutting edges for chips or damage before each use. Do not exceed the recommended speeds and feeds for the workpiece material and cutting depth.
