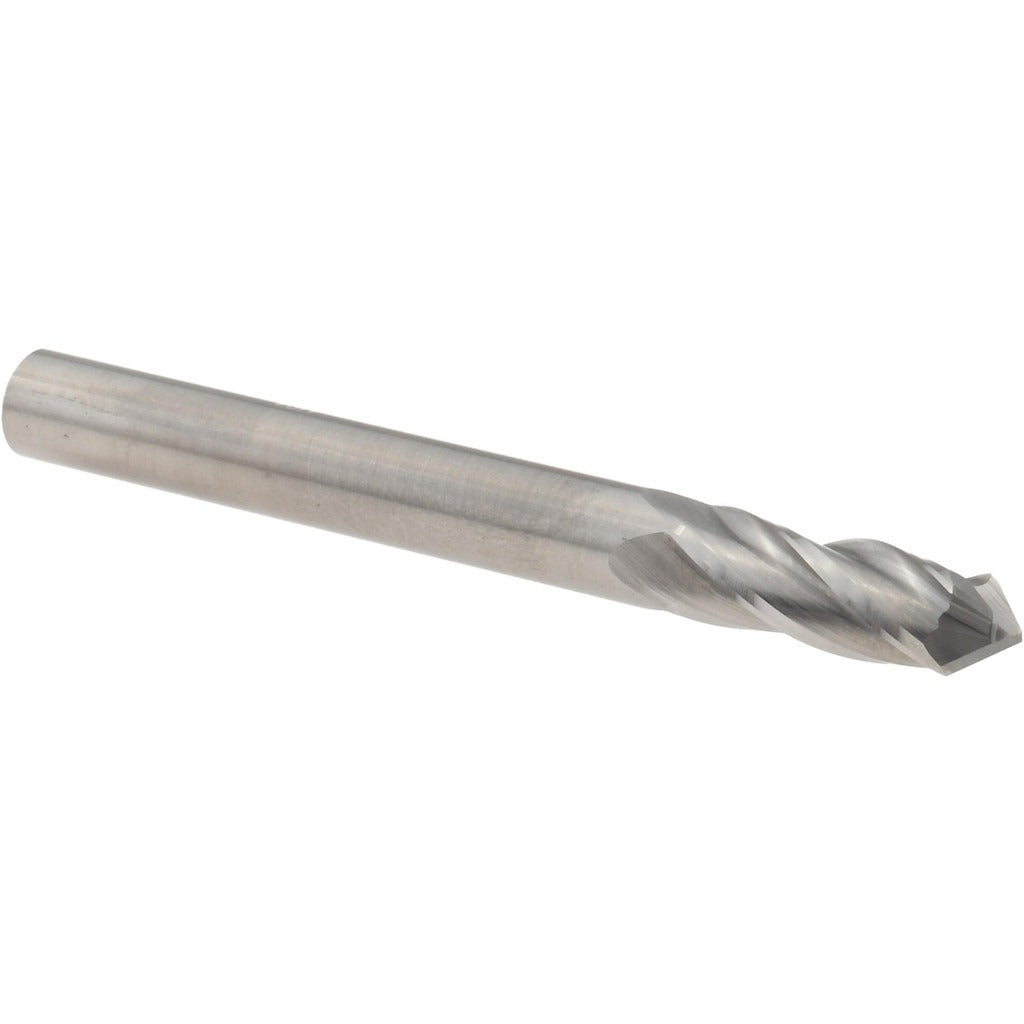

Titan Usa TC34116 Drill Mill 1/4 in 4 Flute Solid Carbide

Product Description

The TITAN USA TC34116 is a solid carbide drill mill designed for combined drilling and milling operations in a single tool. With a 0.250 inch mill diameter, a 90-degree point angle, and 4 flutes, this tool is built for machinists and tool-and-die professionals who need to drill, plunge, and contour in one setup. The uncoated bright finish makes it suitable for use on aluminum, plastics, and other non-ferrous materials where coating adhesion is not required. The 3/4 inch length of cut and 2-1/2 inch overall length provide the reach and rigidity needed for accurate work in CNC mills and manual knee mills alike.

This drill mill is used in machine shops, production environments, and maintenance facilities for spot drilling, slotting, profiling, and chamfering. It fits standard 1/4 inch collets and tool holders, making it a practical addition to any tooling inventory that requires flexible, multi-operation cutters. Typical applications include short-run part production, fixture work, and repair machining where minimizing tool changes improves cycle time.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cutting conditions
• 90-degree point angle supports drilling entry and chamfering in the same operation
• 4-flute geometry provides a balance of chip evacuation and surface finish quality
• Uncoated bright finish suited for non-ferrous materials and general-purpose machining
• 1/4 inch shank diameter fits standard collets and end mill holders without adaptation
• 3/4 inch length of cut with 2-1/2 inch overall length provides stability in short-reach applications

Compatibility

Designed as an OEM-style replacement or direct-use drill mill for CNC machining centers and manual mills accepting 1/4 inch shank tooling.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool holder is clean and free of debris before seating the shank. Secure the tool to the manufacturer-specified torque range for the collet or holder type in use. Verify runout with a dial indicator before beginning production cuts to confirm proper seating and minimize premature tool wear.
